The Gazelle PS is a standing frame that supports a prone, upright, or supine standing position.
The standing frame offers up to 30 degrees of hip abduction in each leg. Research suggest that regular standing with hip extension and abduction might have a positive impact hip development by preventing hip migration in children with cerebral palsy.
The Gazelle PS is available in three sizes and suitable for children from approximately 700 mm (27 1/2“) to 1650 mm (65“). The max. user mass is 80 kg (176 lb).

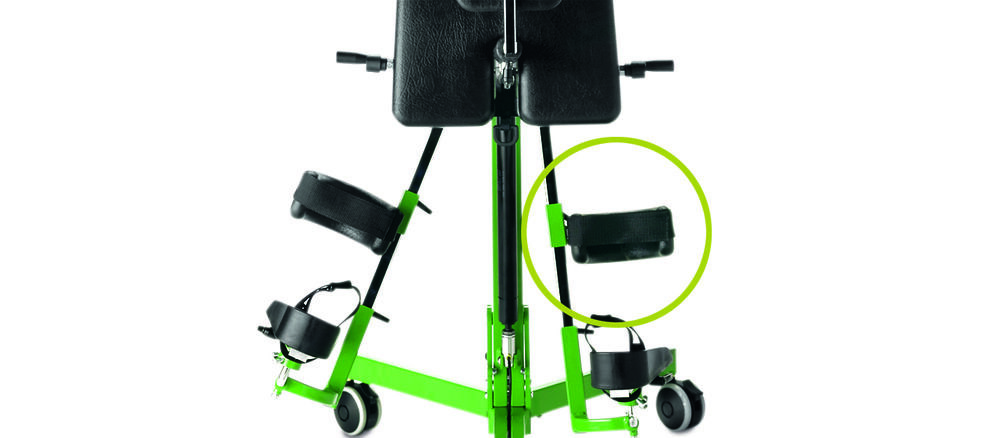

Manual leg abduction

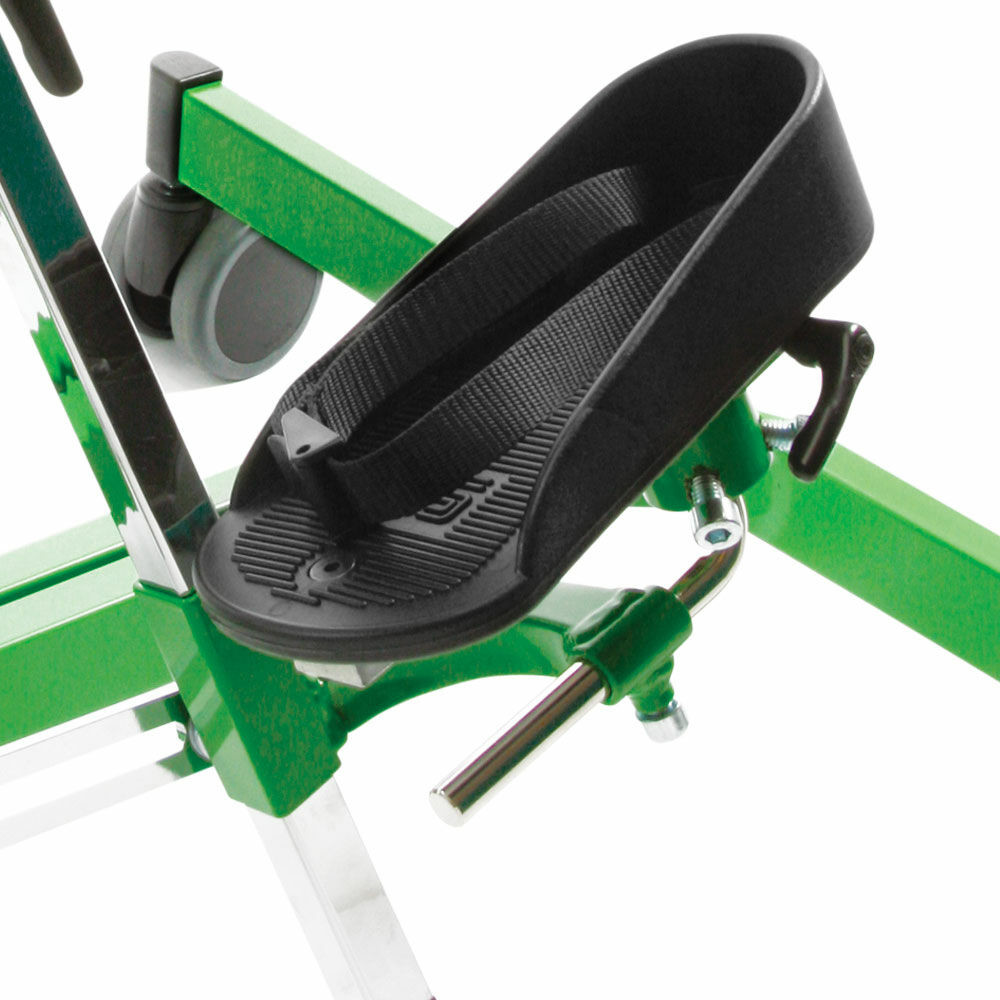

Multi-adjustable foot supports
|Size 1, 17,5 cm foot plates||Size 2||Size 3|
|Angle board (°)||90-(-15)||90-(-15)||90-(-15)|
|Length, foot-axila (inch)||18-37||24-41||28-49|
|Mass device (lbs)||44||48||53|
|Maximum rated load (lbs)||136.6||185.1||233.6|
|Maximum user mass (lbs)||88||132.3||176.4|
|Maximum user weight (lbs)||88||-||-|
|Overall height, horizontal (inch)||30||31.5||35|
|Overall width (inch)||19||23||26|
|User height: floor to axil (inch)||18-37||24-41||28-49|
Delivered in different colors for size 1, 2 and 3.
Yellow for size 1
Green for size 2
Blue for size 3

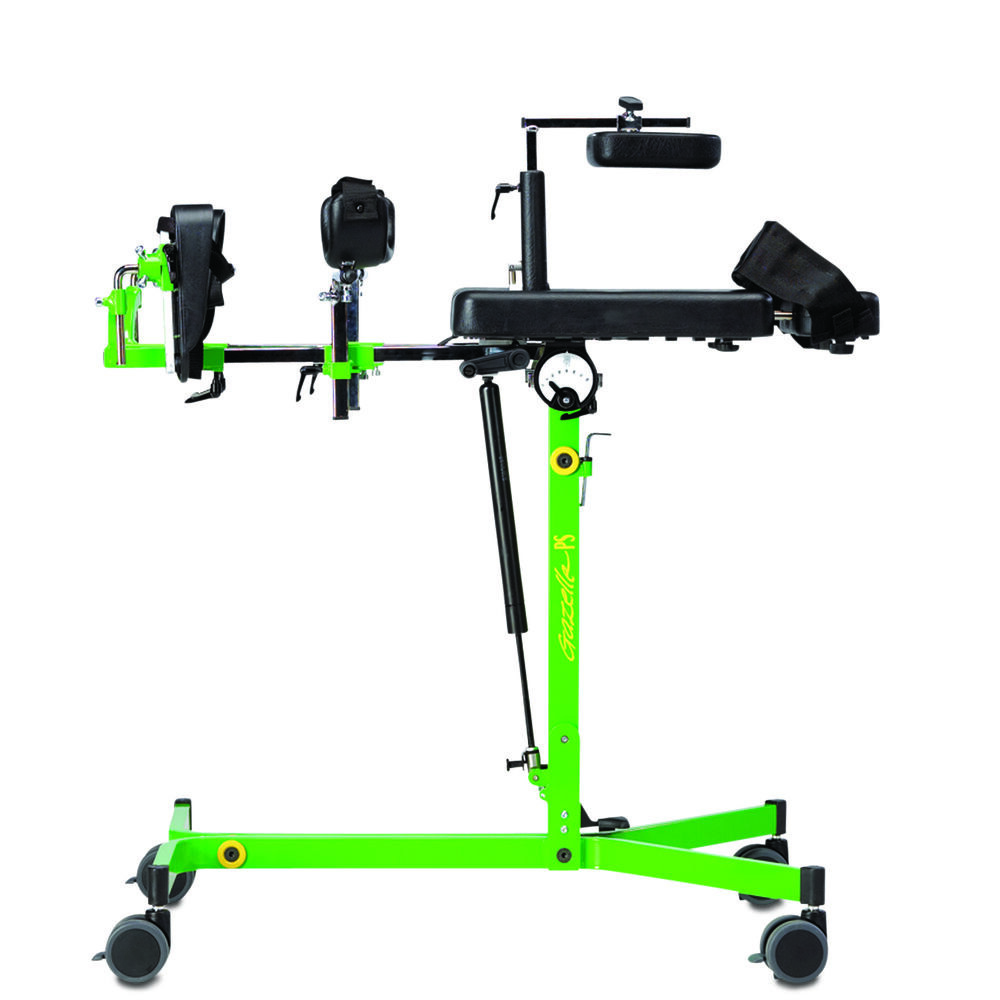

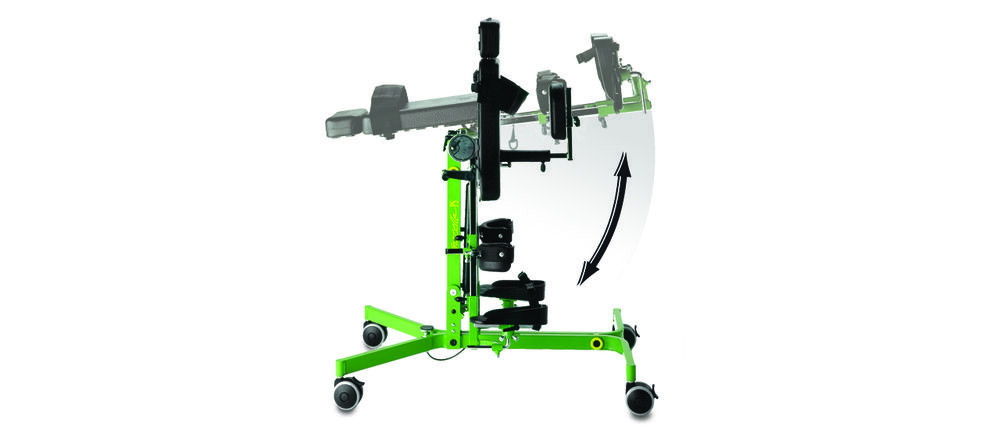

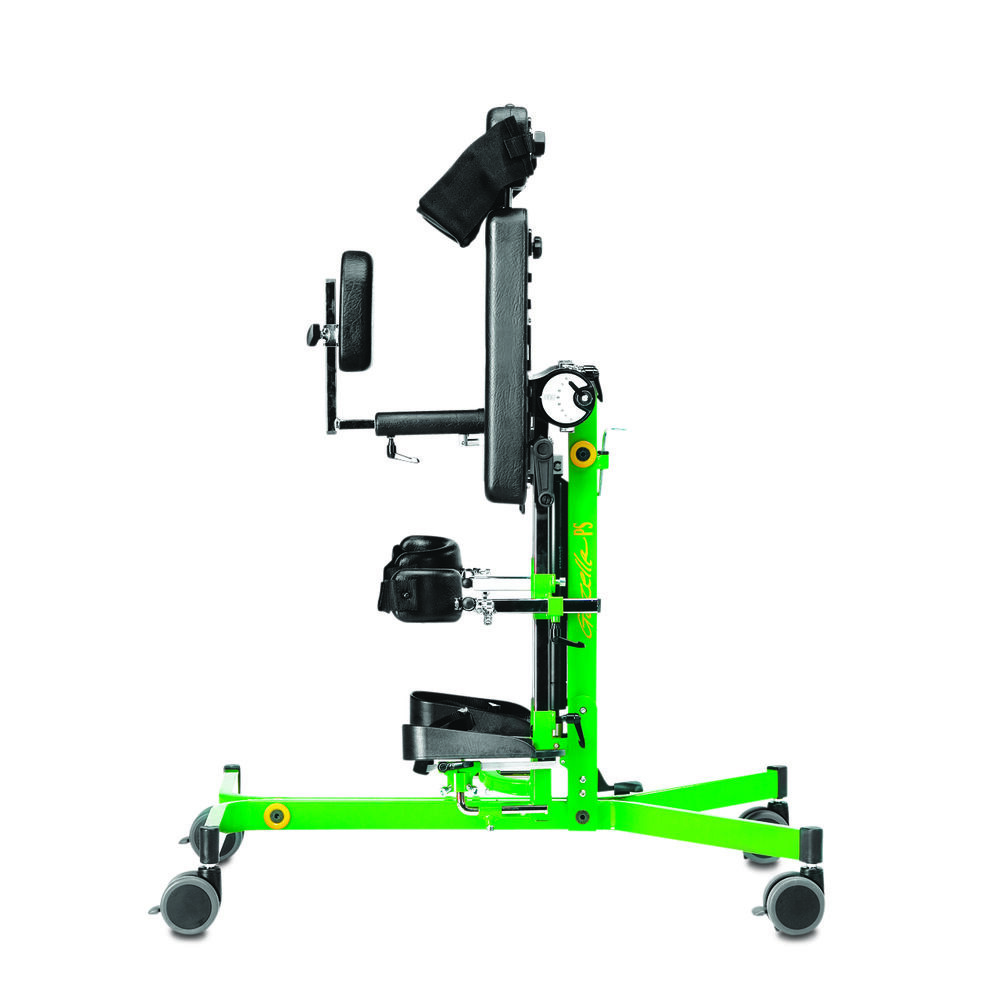

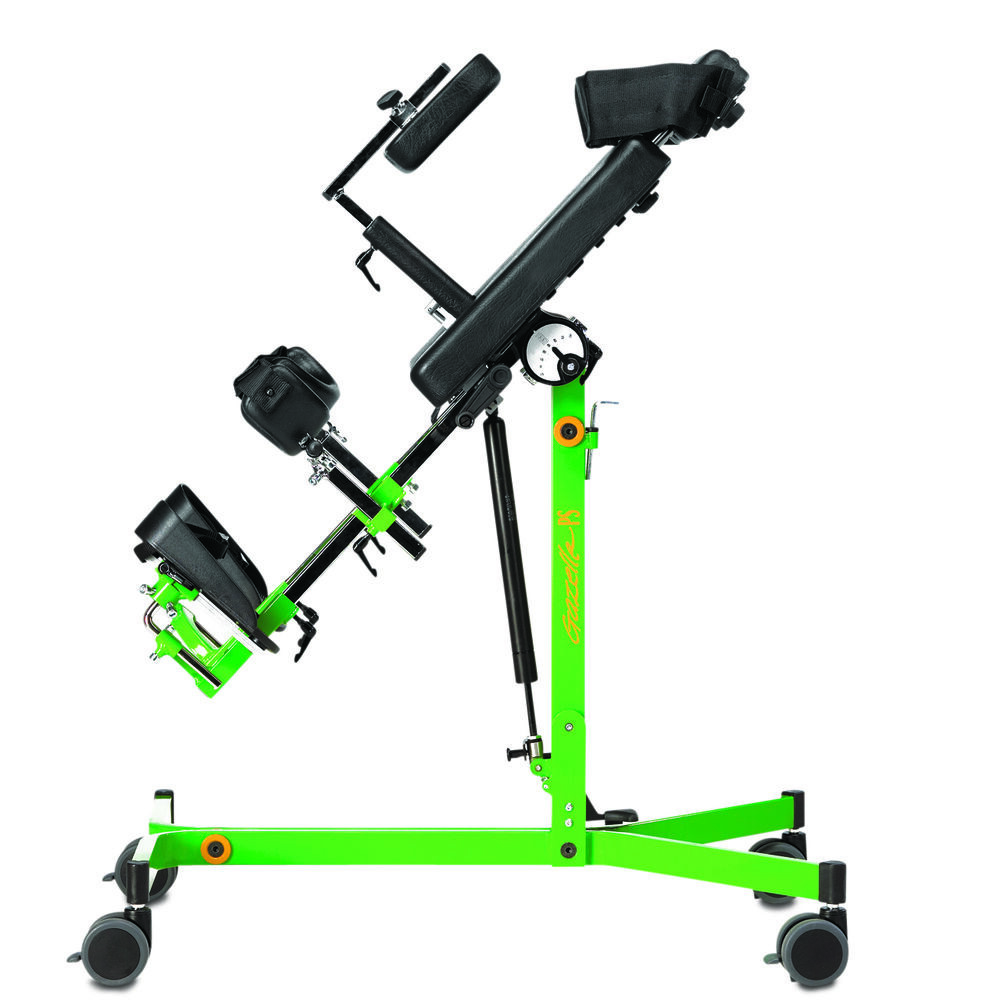

The tilt angle can vary from child to child. Tilt angle from 90° to -15°.

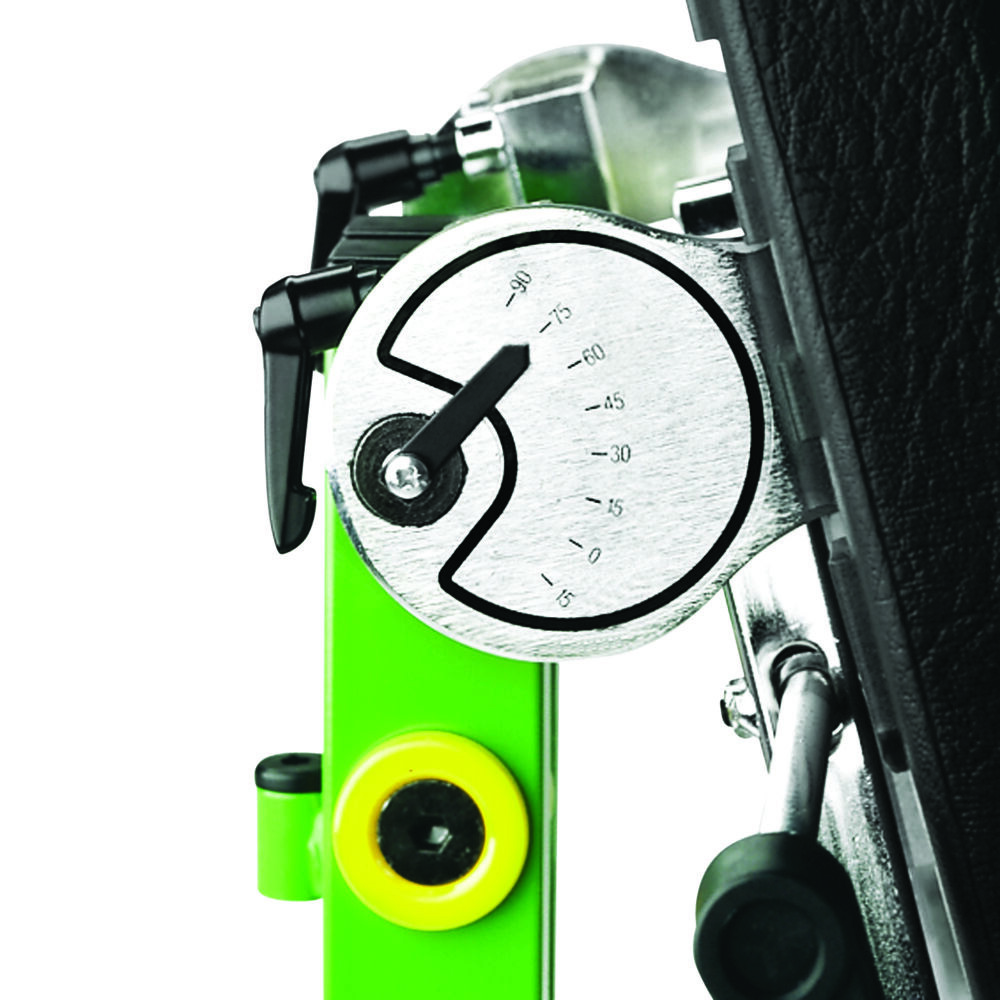

Keep track of the tilt angle with the protractor
