The Toucan is a standing frame that supports an upright or prone standing position.
The Toucan standing frame comes with soft curves and smart colours. The distance between the side bars of the frame allows most wheelchair or static seating system to go in between, allowing sit to stand transfer. Furthermore, the foot plate can be position as low as 60 mm above the floor, which makes it possible for most of the target users to step into the Toucan.
The Toucan is available in five sizes and suitable for children from approximately 870 mm (34 1/4“) to 1800 mm (70 3/4“). The max. user mass is 70 kg (154 lb).

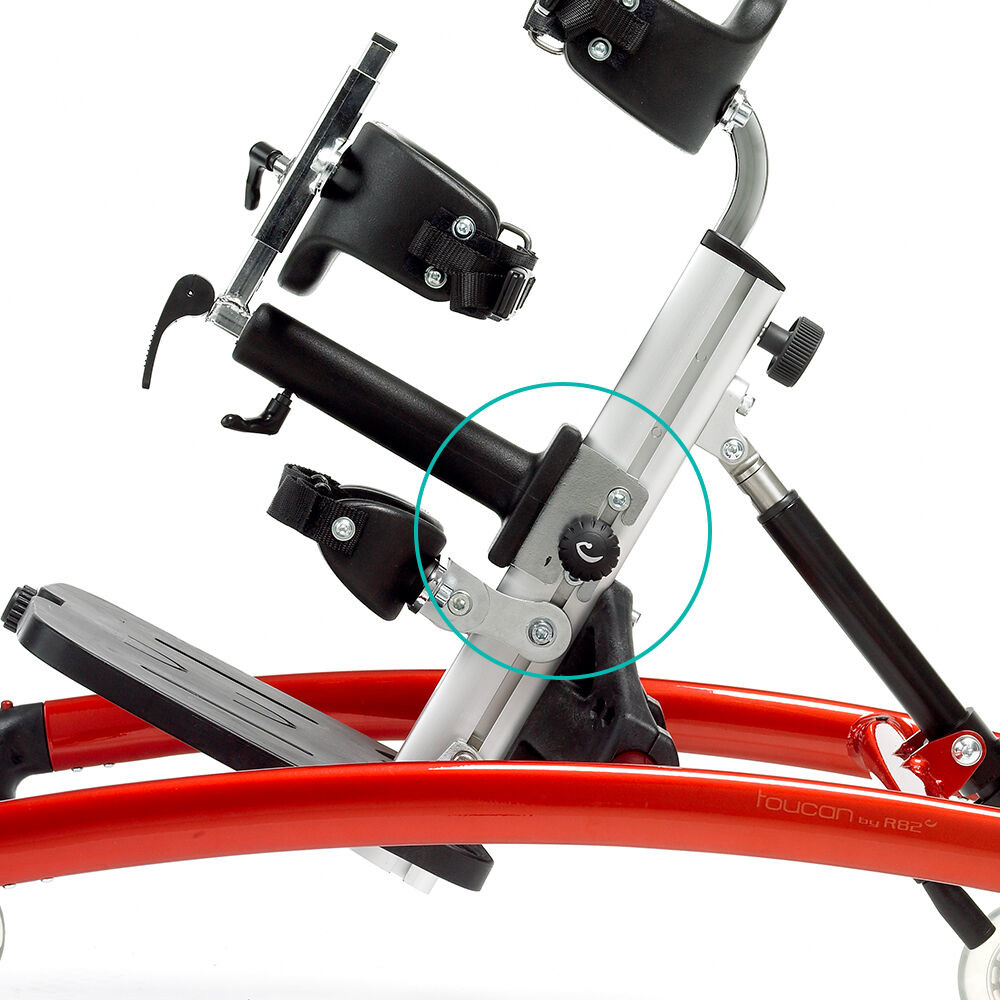

Prepared for accessories

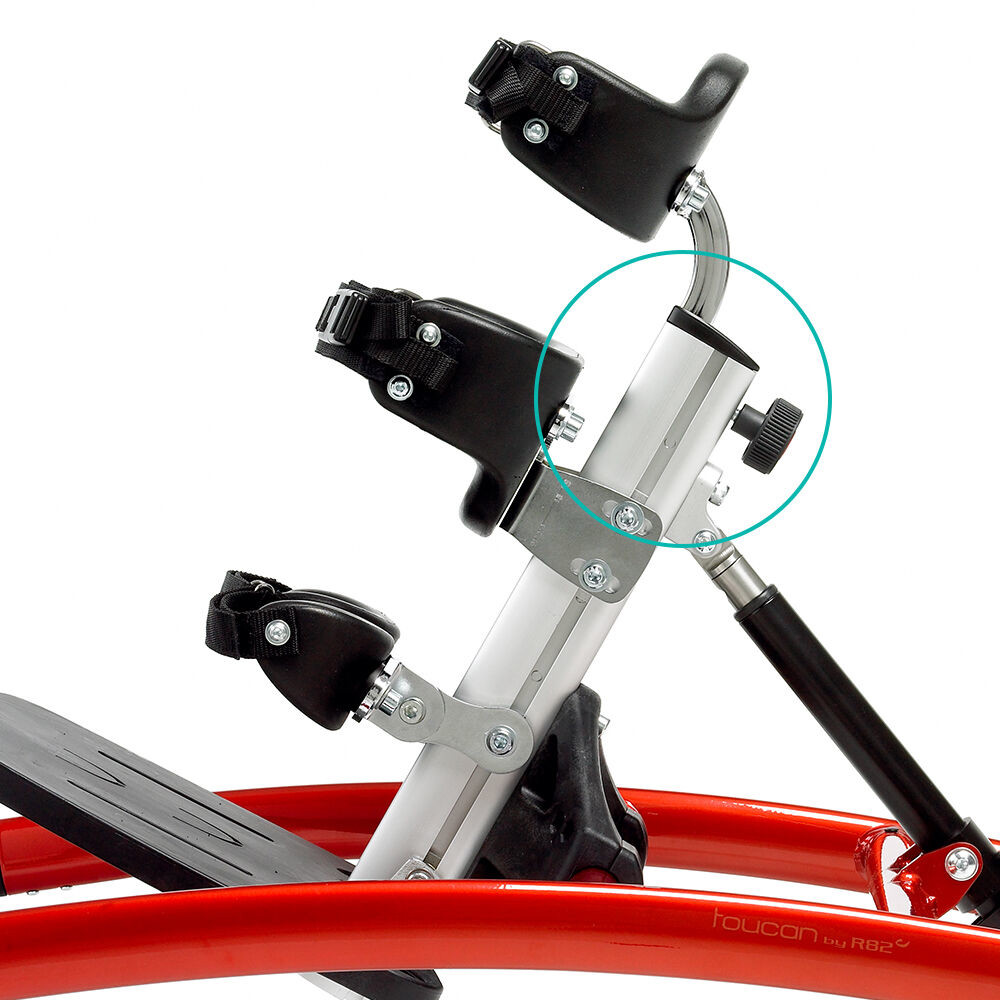

Angle adjustable center bar

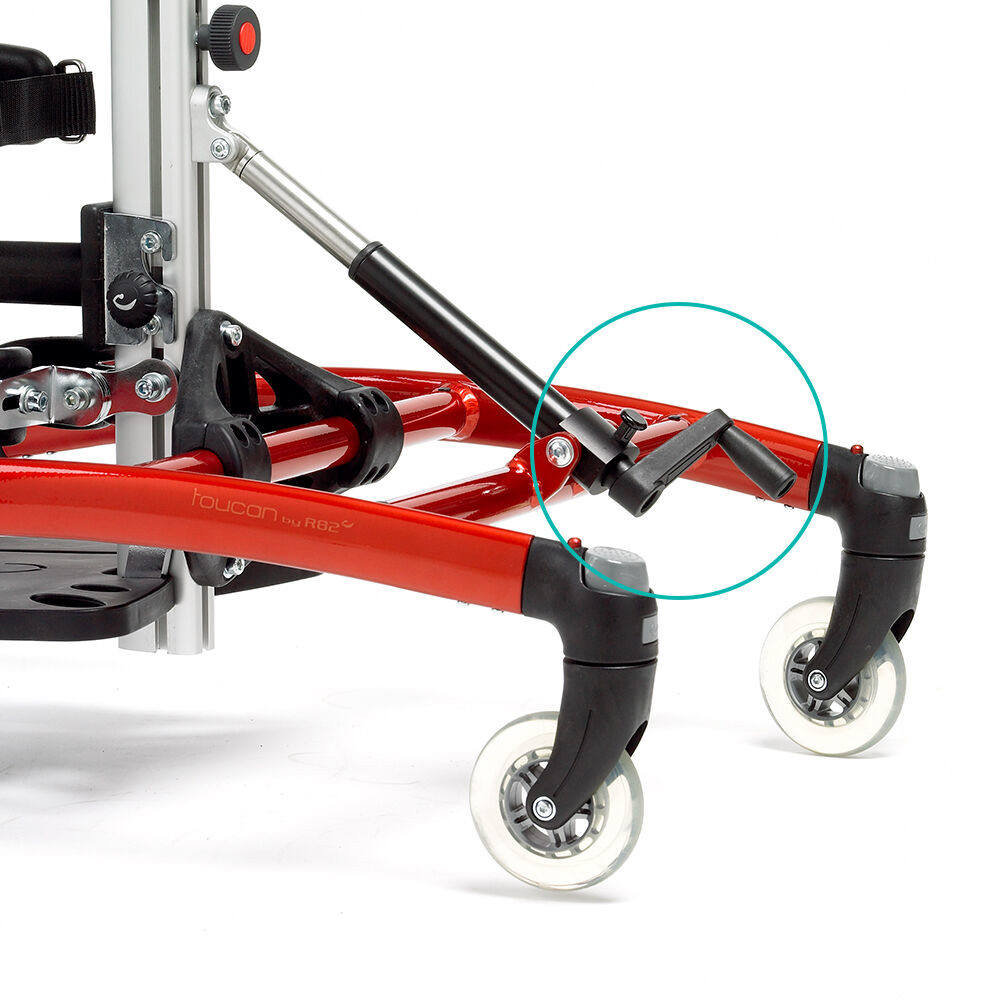

Handle with lock
Castors with locks
|Size 1||Size 2||Size 3||Size 4||Size 5|
|Angle, center bar (°)||0-30||0-30||0-30||0-30||0-30|
|Foot plate angle (°)||15 - (-10)||15 - (-10)||15 - (-10)||15 - (-10)||15 - (-10)|
|Height floor to foot plate (inch)||2.25||2.25||2.25||2.25||2.25|
|Length, centre bar (inch)||17.75||19.75||27.5||31.5||39.25|
|Mass device (lbs)||16.5||18.7||19.8||23.1||23.6|
|Maximum rated load (lbs)||87||111.3||134.4||159.8||182.4|
|Maximum user mass (lbs)||66.1||88.1||110.2||132.2||154.3|
|Maximum user weight (lbs)||66.1||88.1||110.2||132.2||154.3|
|Overall height (inch)||26.5-34.25||28.25-39.75||38.25-48.5||41-52.75||48.75-60.75|
|Overall width (inch)||22||24.75||24.75||27.5||27.5|
|Static stability downhill (°)||5||5||5||5||5|
|Static stability sideways (°)||5||5||5||5||5|
|Static stability uphill (°)||5||5||5||5||5|
|User height: floor to axil (inch)||13.5-27.5||21-35||21.25-43.25||35.75-47.75||43.75-55.5|

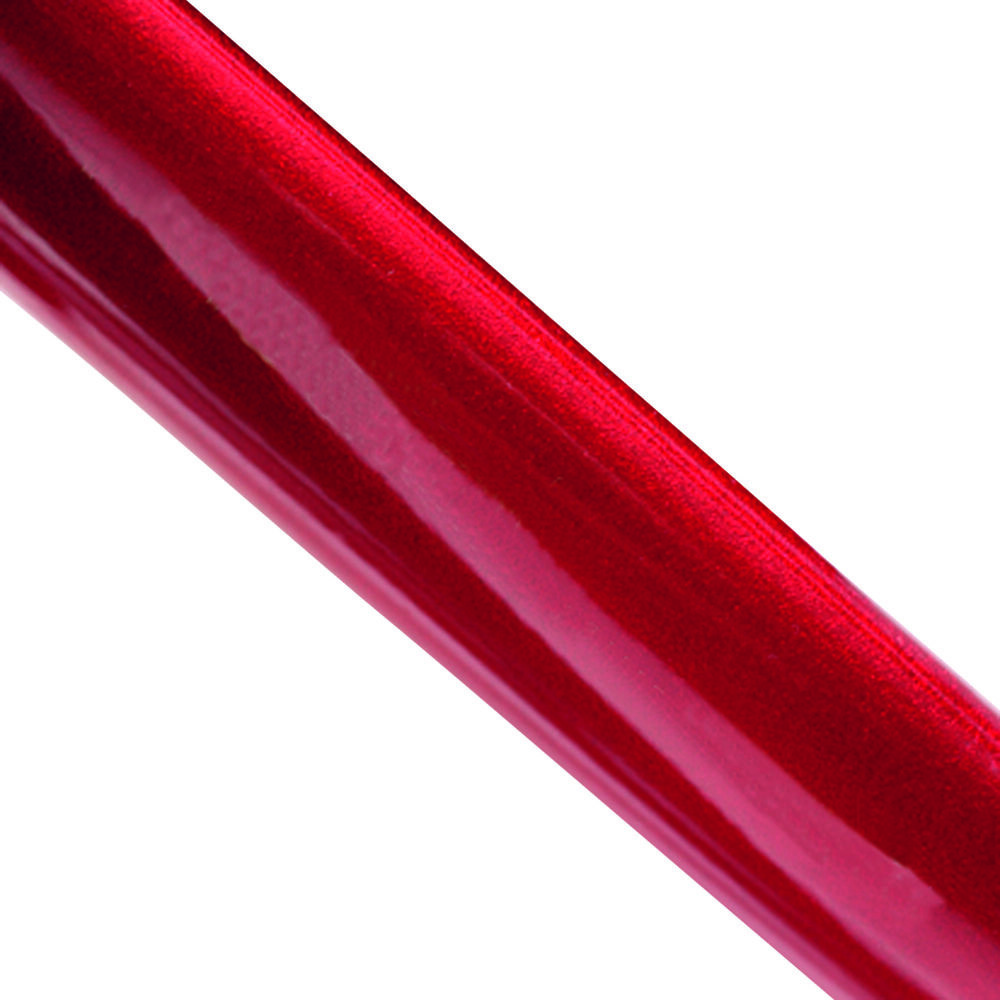

Red for size 1

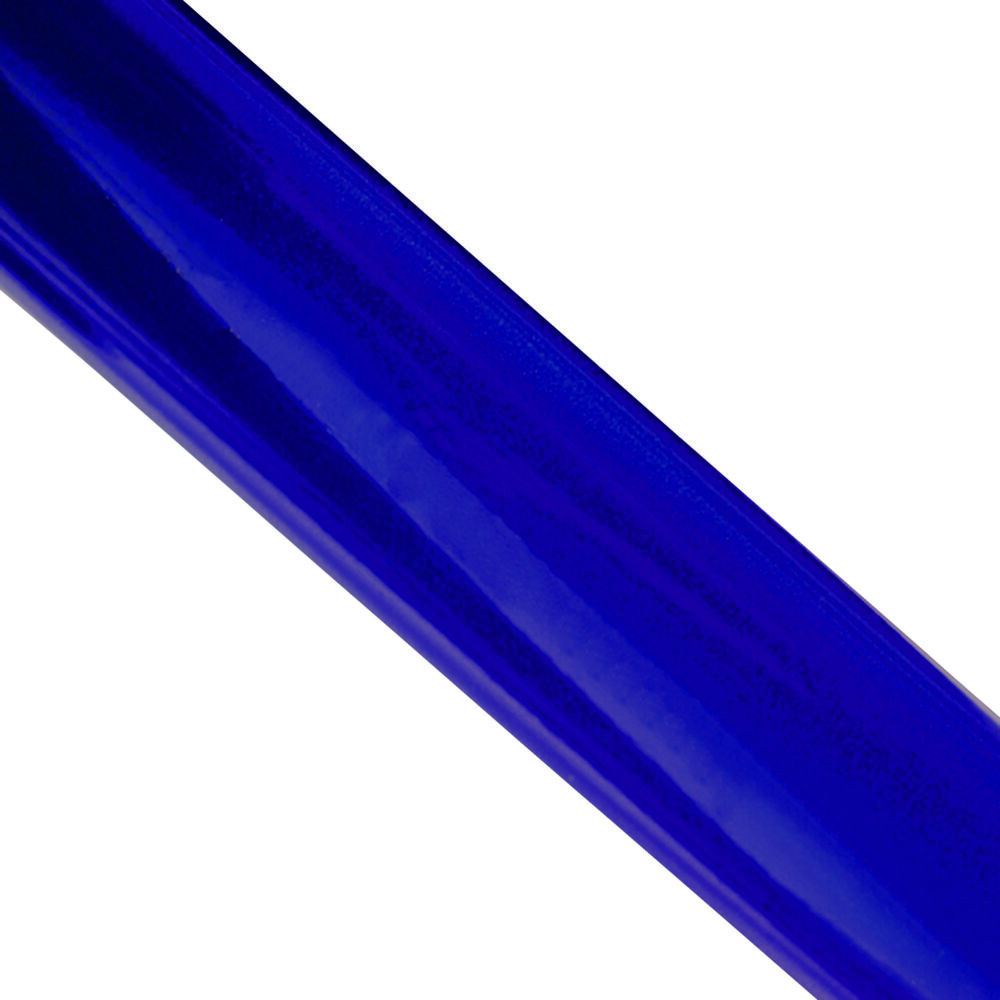

Blue for size 2+3

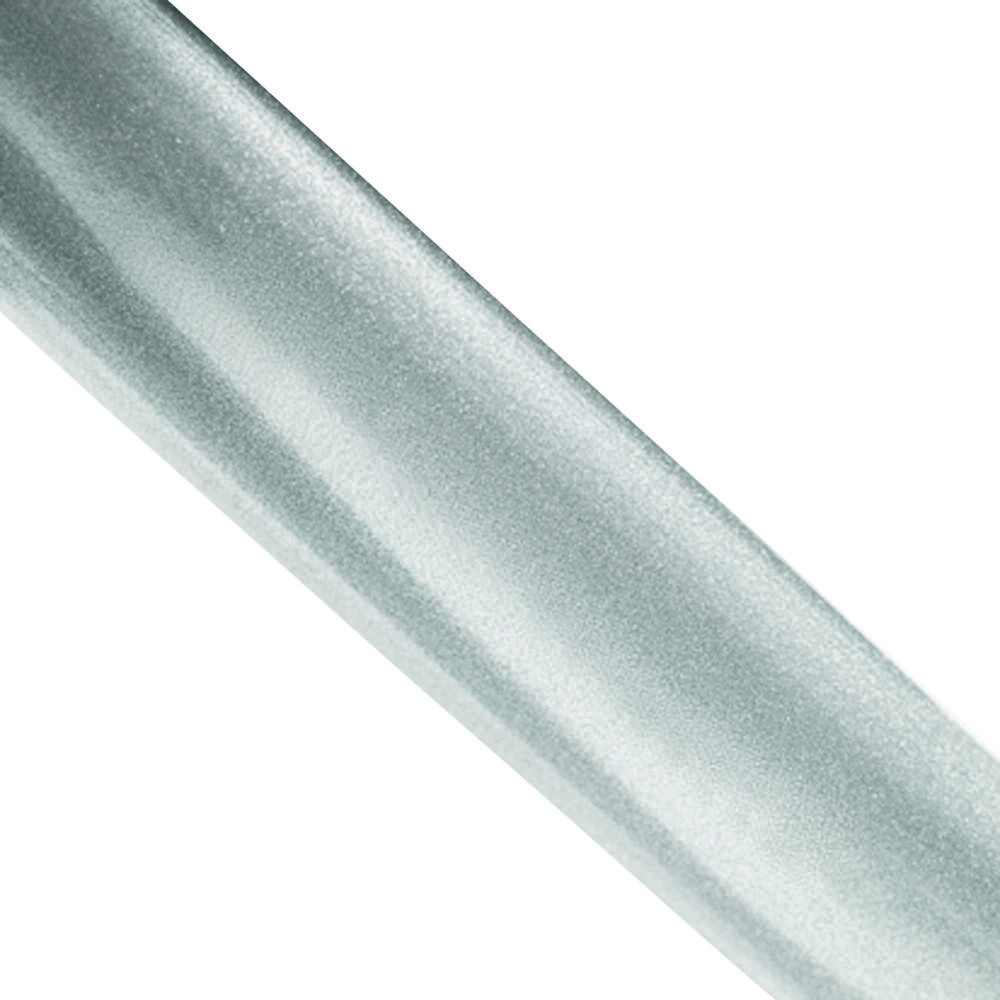

Silver for size 4+5
