Convaid Carrot 3 Booster

Grows with children and provides adaptive inserts for optimal positioning and maximum comfort.

The Carrot Booster Seat is the most comprehensive car seat restraint system available for children, teens and small adults with special needs. It was designed, engineered and built to provide optimal positioning & safety for children with insufficient head, trunk, and pelvic stability. Plus, extensive growth capabilities will ensure that the Carrot 3 is the ONLY car seat you will ever need!

Features

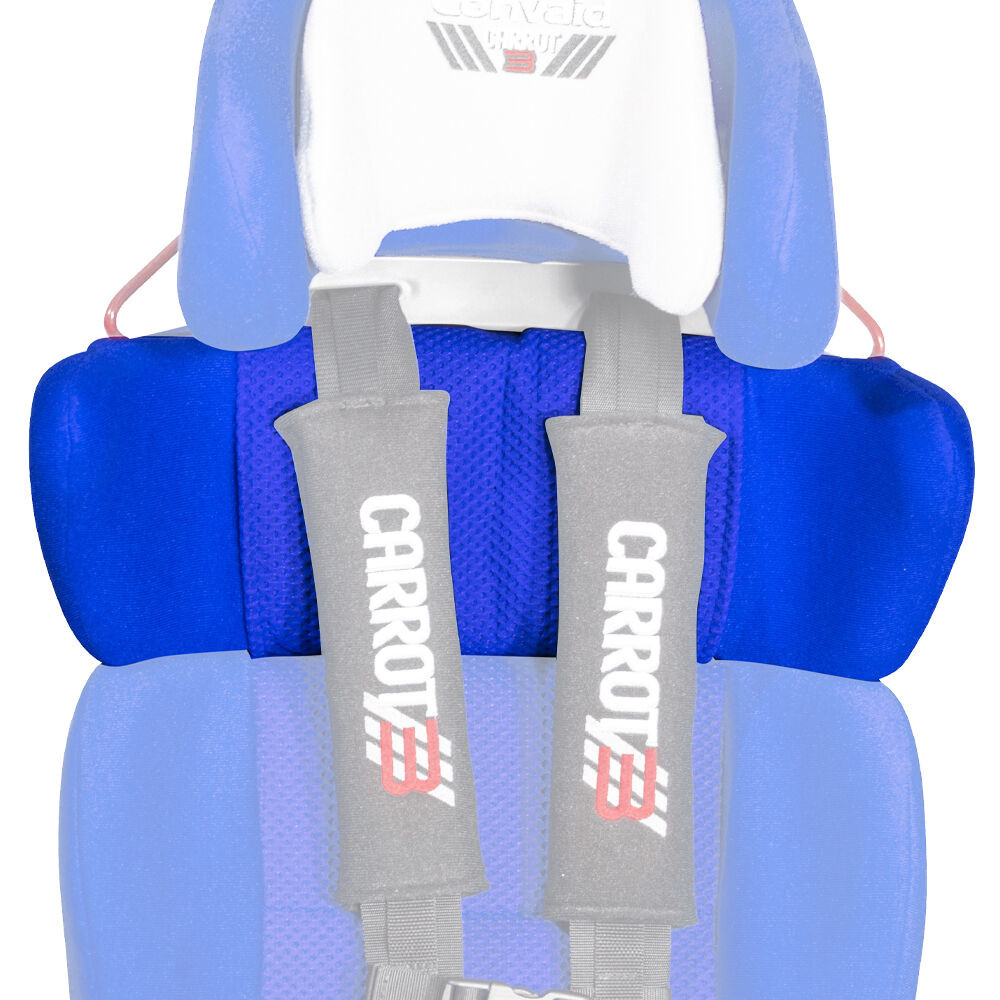

Shoulder protector wings

Shoulder protector wings

Gives lateral shoulder support, protection and can be adjusted up to 4" in width.
4-point positioning H-harness

Wide seat

The Carrot 3 Booster Seat is for users who require a wide seat (16.5").
Convaid Carrot 3 Booster

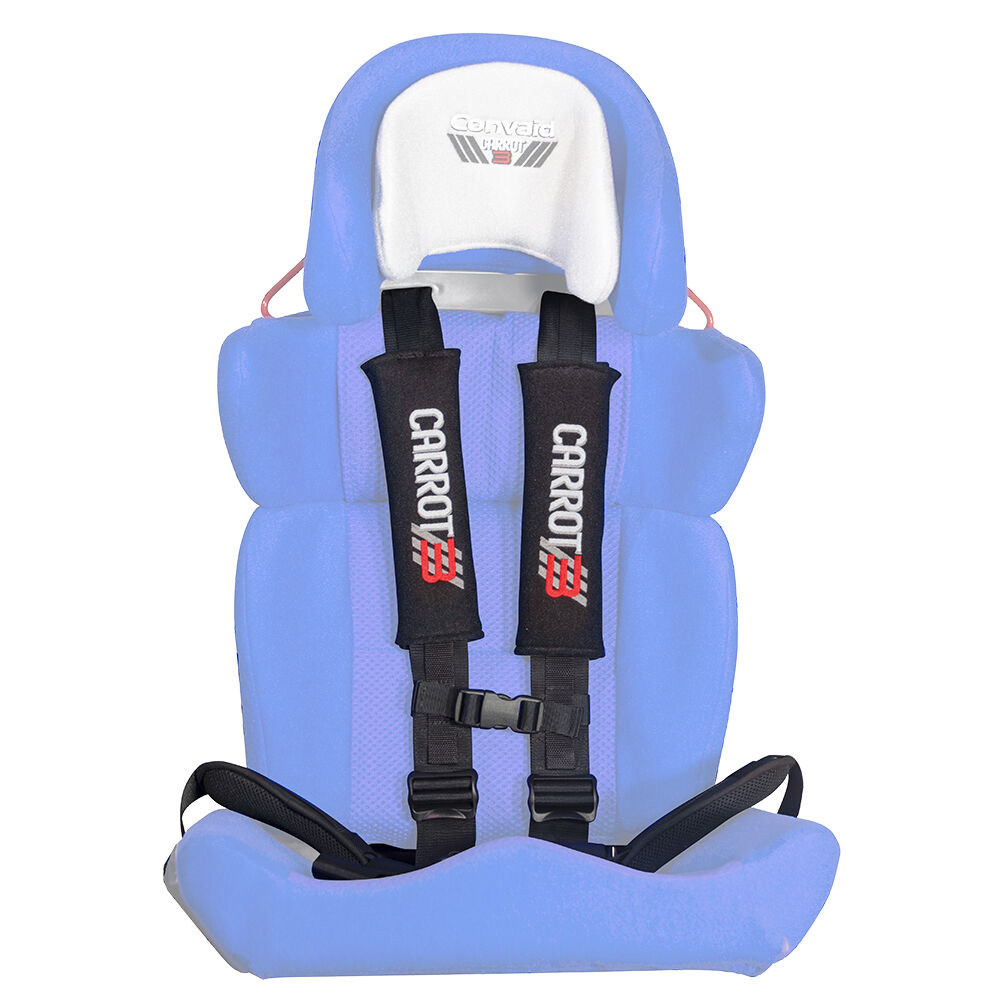

4-point positioning H-harness

To maintain midline positioning of the trunk for increased postural control.
Convaid Carrot 3 Booster

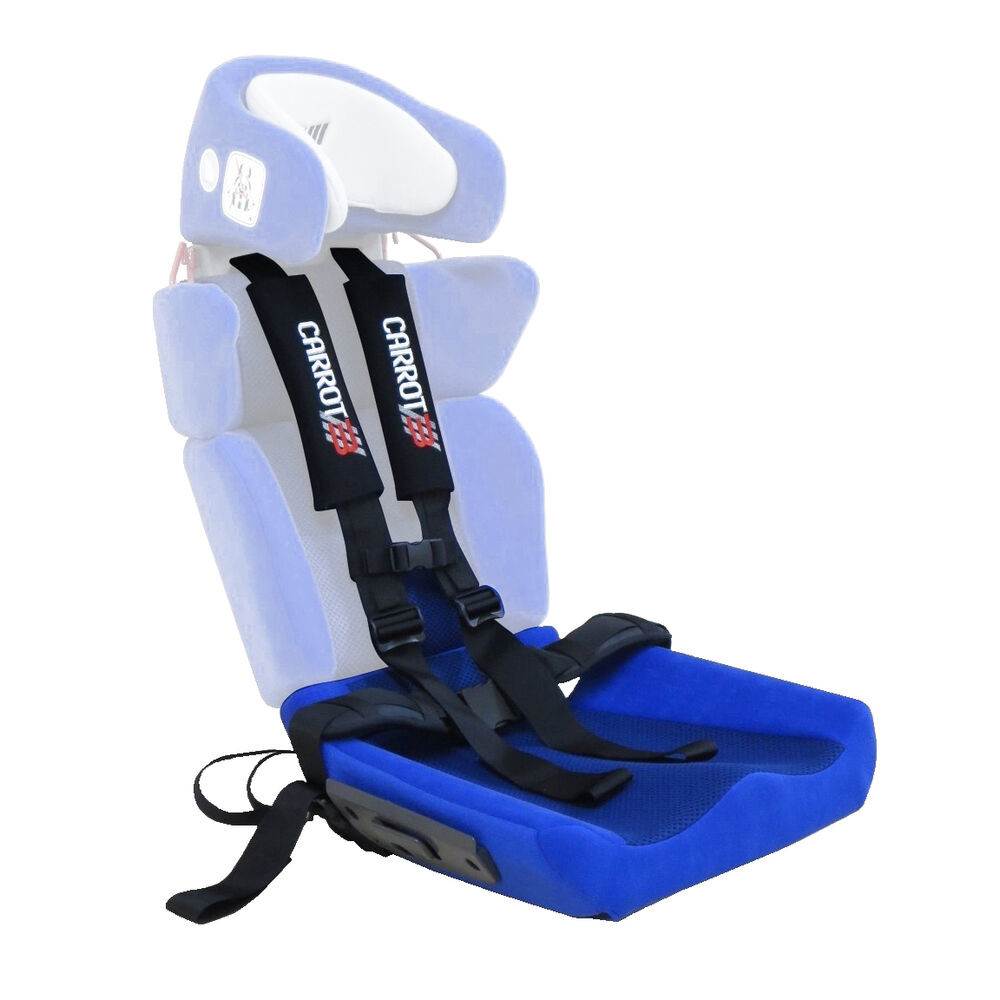

Booster kit

Option to transform an existing Carrot 3 into a booster in 3 easy steps.

Standard specifications

Black
Blue
Red
Convaid item number CRT3BS-10 CRT3BS-20 CRT3BS-30
Approximate total user height (Inch) 55-69 55-69 55-69
Back height (inch) 28.8-32.8 28.8-32.8 28.8 - 32.8
Back height (top of head) max (inch) 33 33 33
Head support height (inch) 8.5 8.5 8.5
Maximum user weight (lbs) 165 165 165
Minimum user weight (lbs) 79 79 79
Product weight (lbs) 21 21 21
Seat depth (inch) 17 17 17
Seat width (inch) 16.5 16.5 16.5

Options

Tether strap

For vehicles equipped with a top tether anchor.

Top securement strap

For vehicles not equipped with a top anchor.

Lower securement strap

For vehicles not equipped with lower anchors.

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
