The Caribou is a standing frame that supports a prone, upright, or supine standing position.
The tilt function and the extensive accessories selection allows users who have severe limitations in head and trunk control or who experience limitations in their range of motion to adopt the standing position. Thereby the Caribou supports the child to participate in things they value – and it can bridge the disparities between children with and without disabilities.
The Caribou is available in four sizes and suitable for children from approximately 850 mm (33 1/2”) to 1840 mm (72 1/2"). The max. user mass is 100 kg (220 lb).

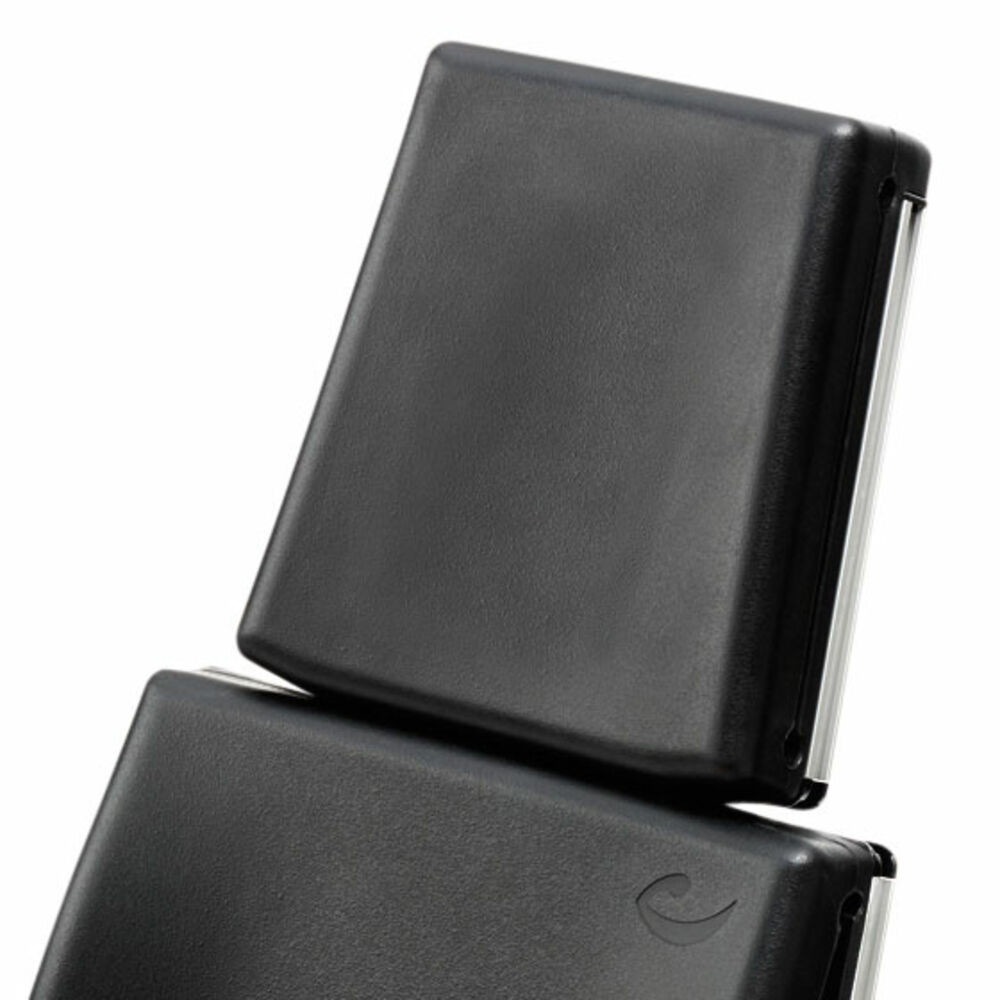

Anatomic design and soft mouldable PU
|Size 1||Size 1 (w/ power)||Size 2||Size 2 (w/ power)||Size 3||Size 3 (w/ power)||Size 4||Size 4 (w/ power)|
|Approximate total user height (mm)||850-1120||850-1120||980-1290||980-1290||1250-1560||1250-1560||1530-1840||1530-1840|
|Foot plate angle (°)||(-20) - 20||(-20) - 20||(-20) - 20||(-20) - 20||(-20) - 20||(-20) - 20||(-20) - 20||(-20) - 20|
|Maximum rated load (kg)||62.5||64.5||86||87.5||112.5||114.5||137||139|
|Maximum user mass (kg)||40||40||60||60||80||80||100||100|
|Overall height, horizontal (mm)||700||700||700||700||800||800||800||800|
|Overall height, vertical (mm)||460-570||460-570||530-640||530-640||680-790||680-790||880-990||880-990|
|Overall width (mm)||510||510||570||570||650||650||750||750|
|Static stability downhill (°)||5||5||5||5||5||5||5||5|
|Static stability sideways (°)||5||5||5||5||5||5||5||5|
|Static stability uphill (°)||5||5||5||5||5||5||5||5|
|Total mass (kg)||20.5||22.5||24||25.5||30.5||32.5||35||37|
Overall height configuration: Standard product and top plate (measured from the floor)
Available in different colours.

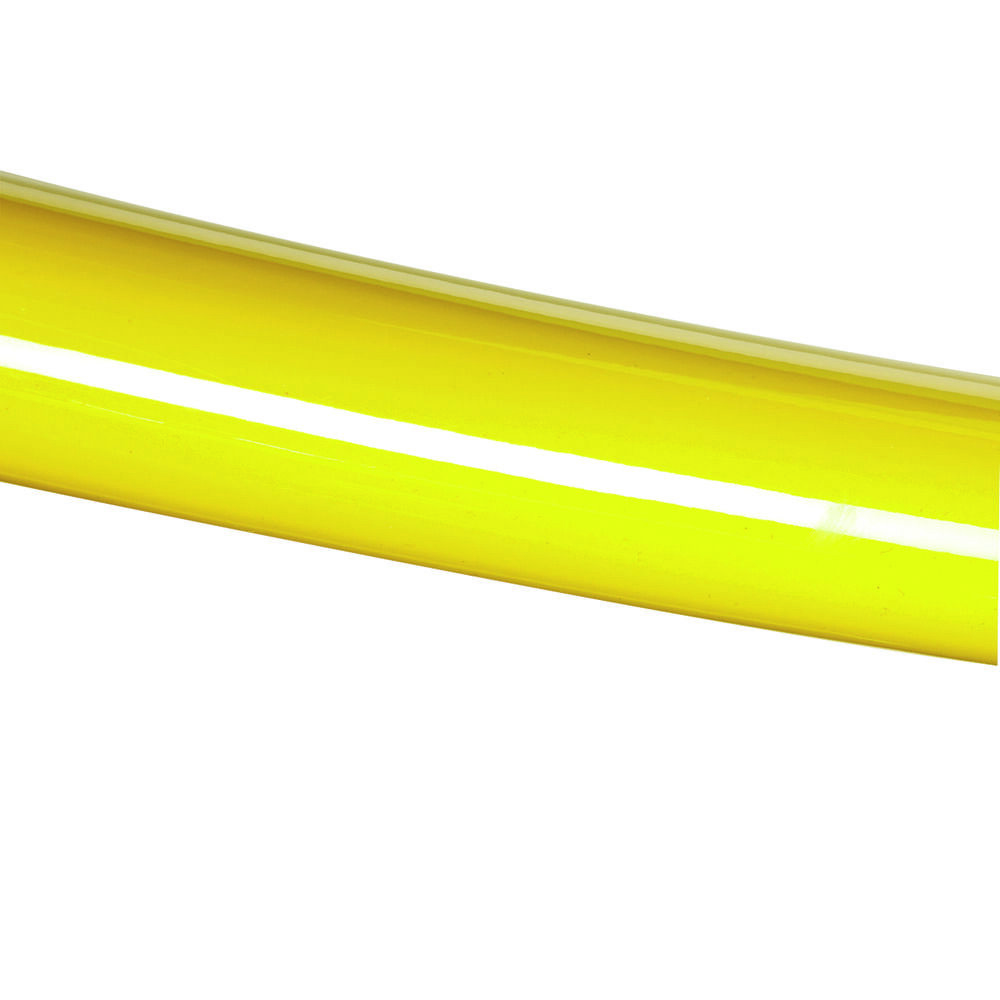

Yellow for size 1

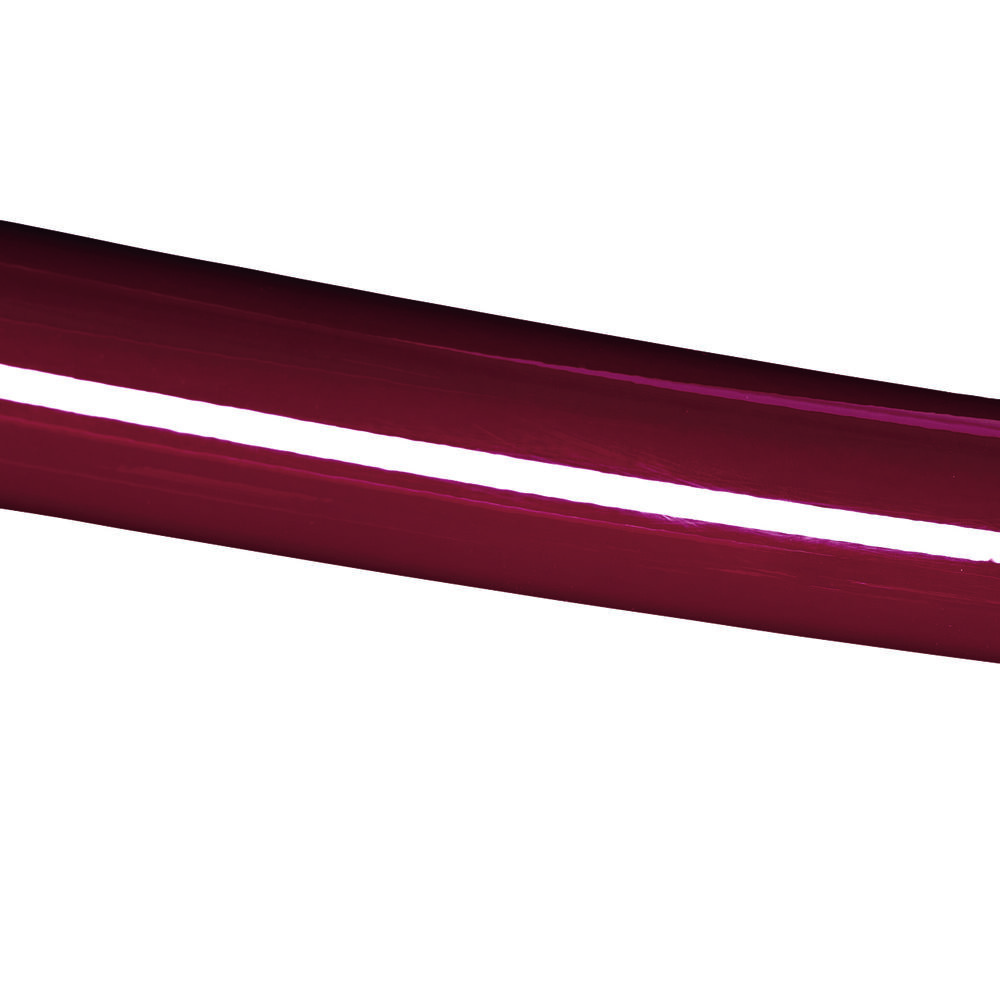

Red for size 2

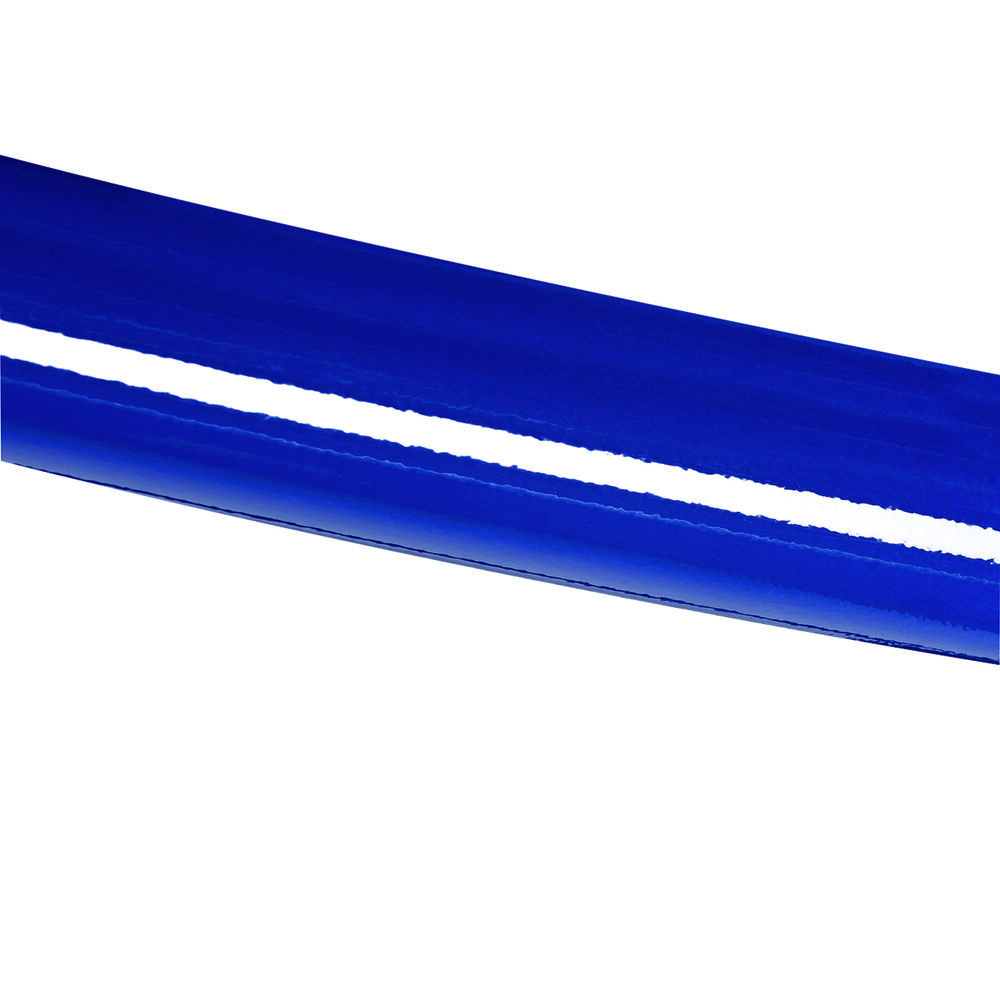

Blue for size 3

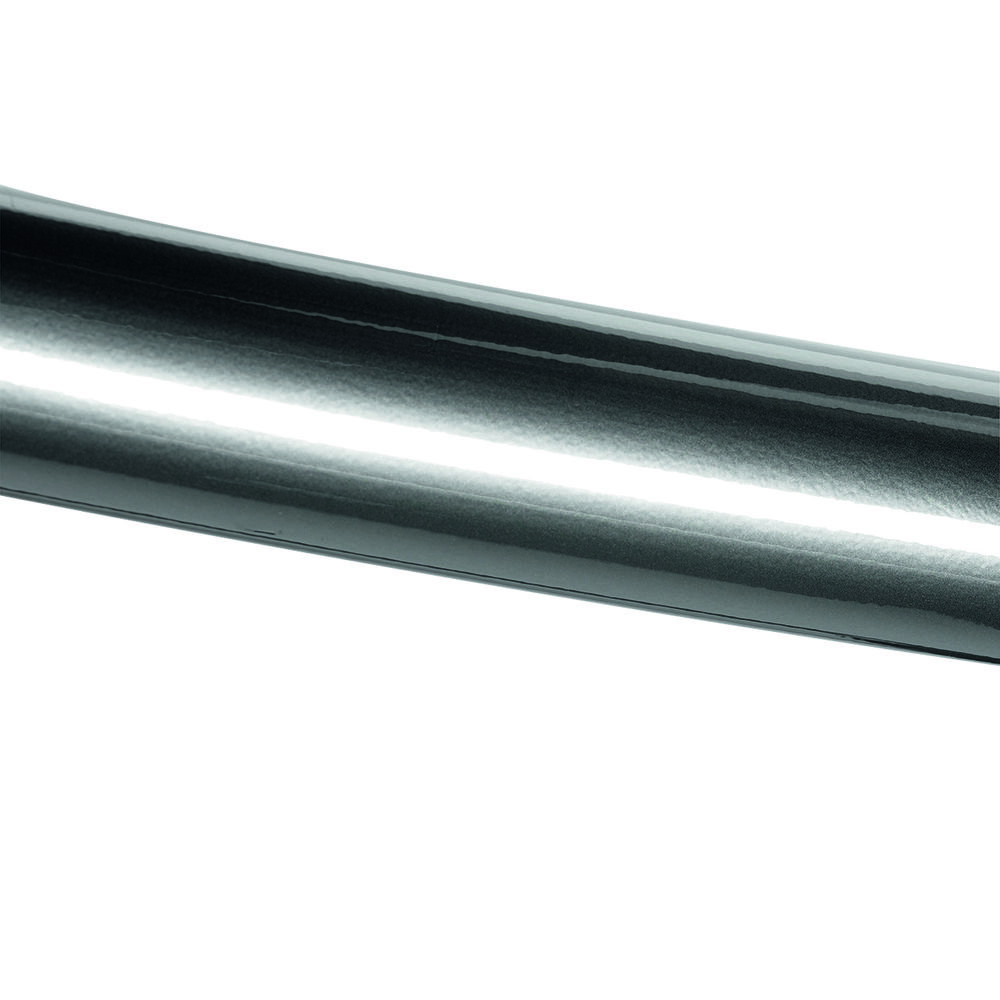

Anthracite grey for size 4

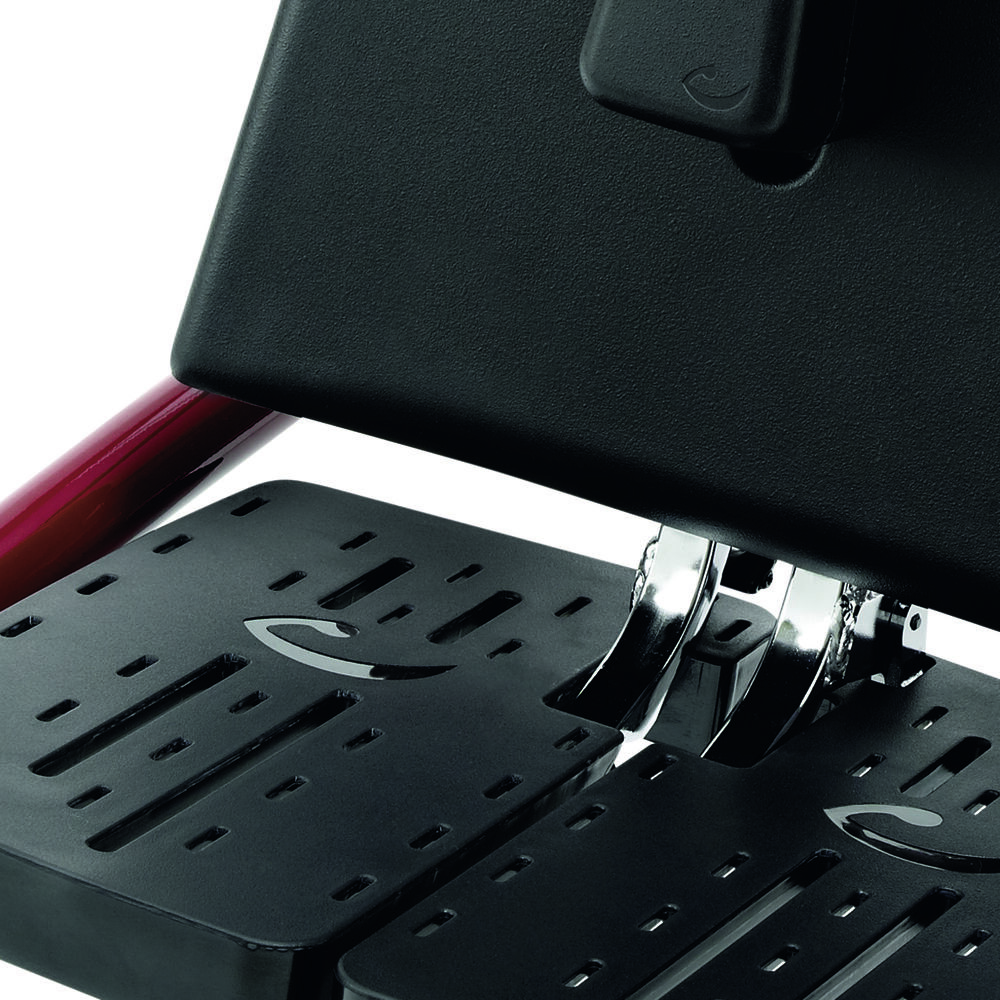

Parted foot supports makes it possible to adjust individual foot heights and angles.

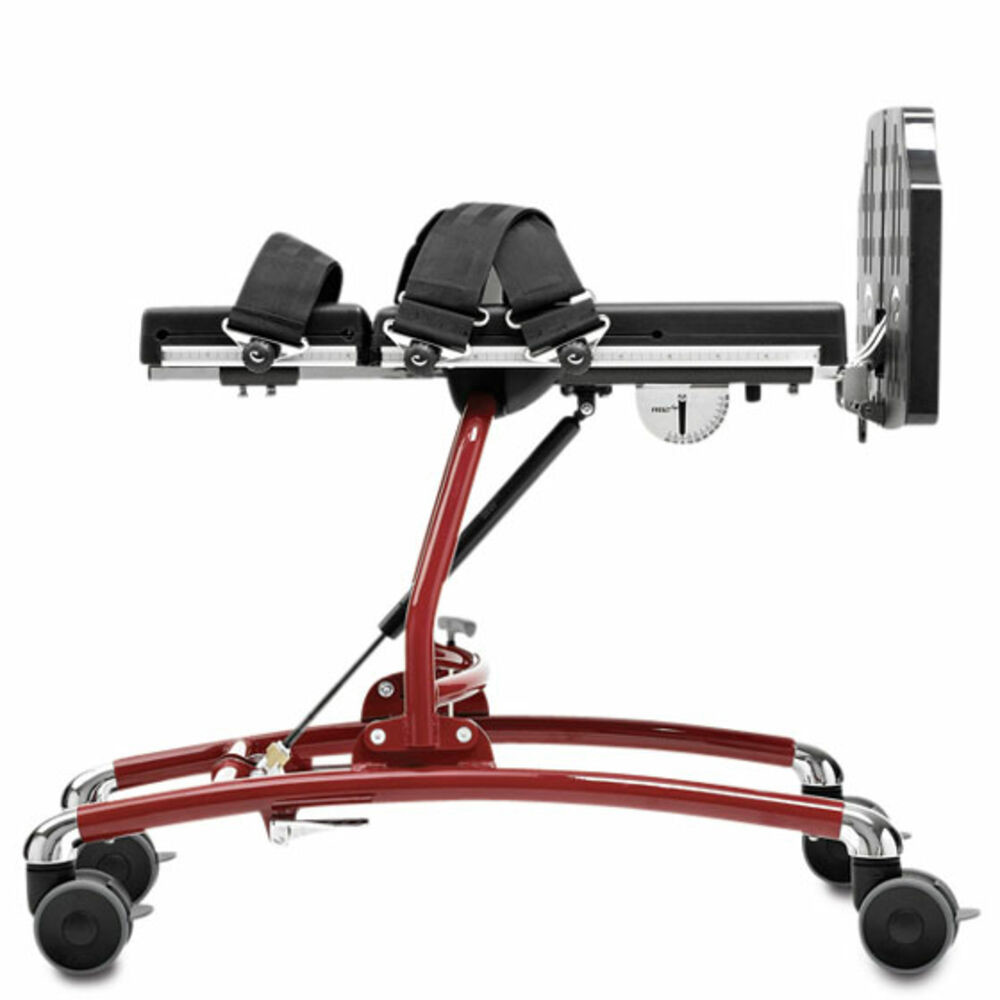

Goes from minus 3 degrees to horizintal position. Sizes 3 and 4 are recommended in the power versions to ease tilting.

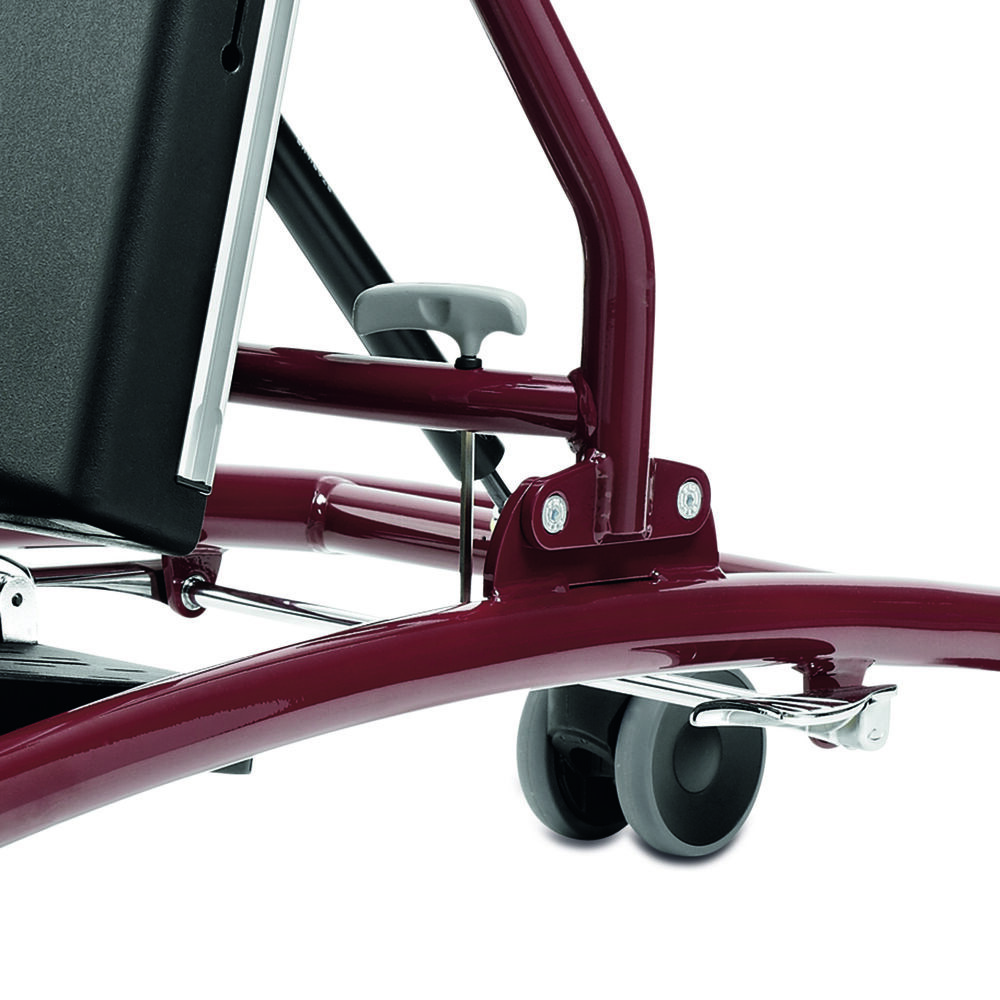

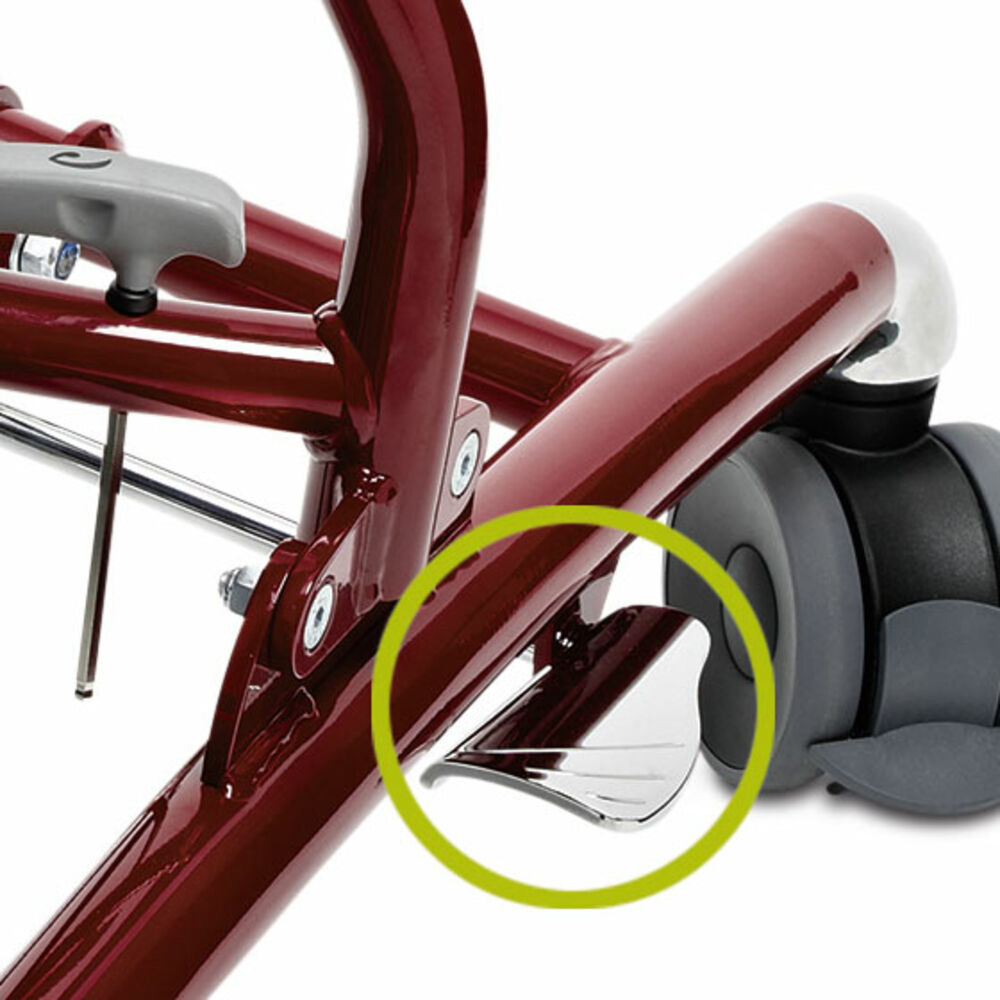

Foot operated gas spring

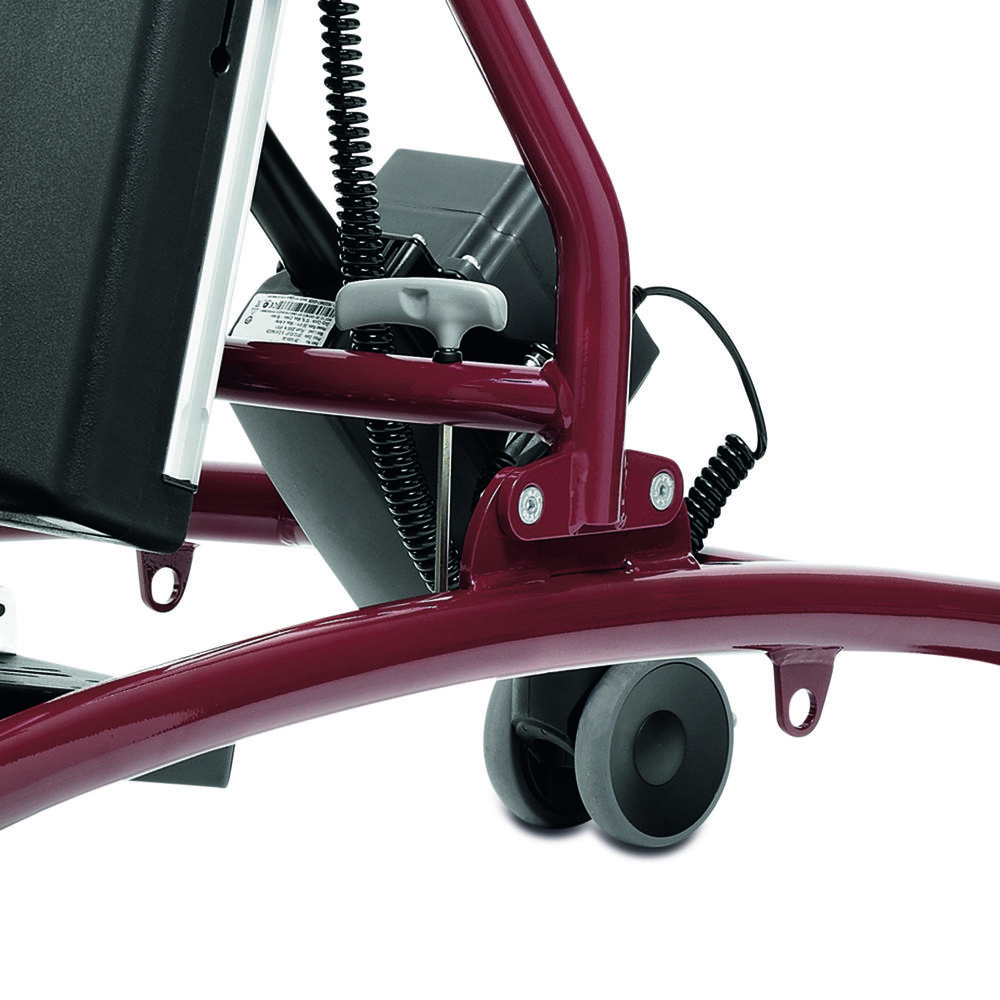

With power actuator
