Molift Air 300

Small, compact and easy to install

Functional and well designed
Molift Air is an innovative, functional and well-designed hoisting aid for disabled users. Combined with the Molift Rail System (MRS), Molift Air solves all hoisting situations in health care and other patient handling environments.

Light and flexible
Molift Air is suitable for sitting and horizontal transfers as well as standing and gait training situations together with the comprehensive accessory program from Molift. It is used with fixed ceiling rails, but can also be used for portable freestanding systems. Molift Air is easy to handle during installation and servicing, due to its very low weight and clever quick-release function. Molift Air offers flexible solutions such as remote control and possibilities for room-to-room transfer, due to very low weight and the clever quick-release function system. Add to this the safety features, the large hoisting interval and the multiple ranges of sling bars. It is the complete solution in all health care segments.

Features

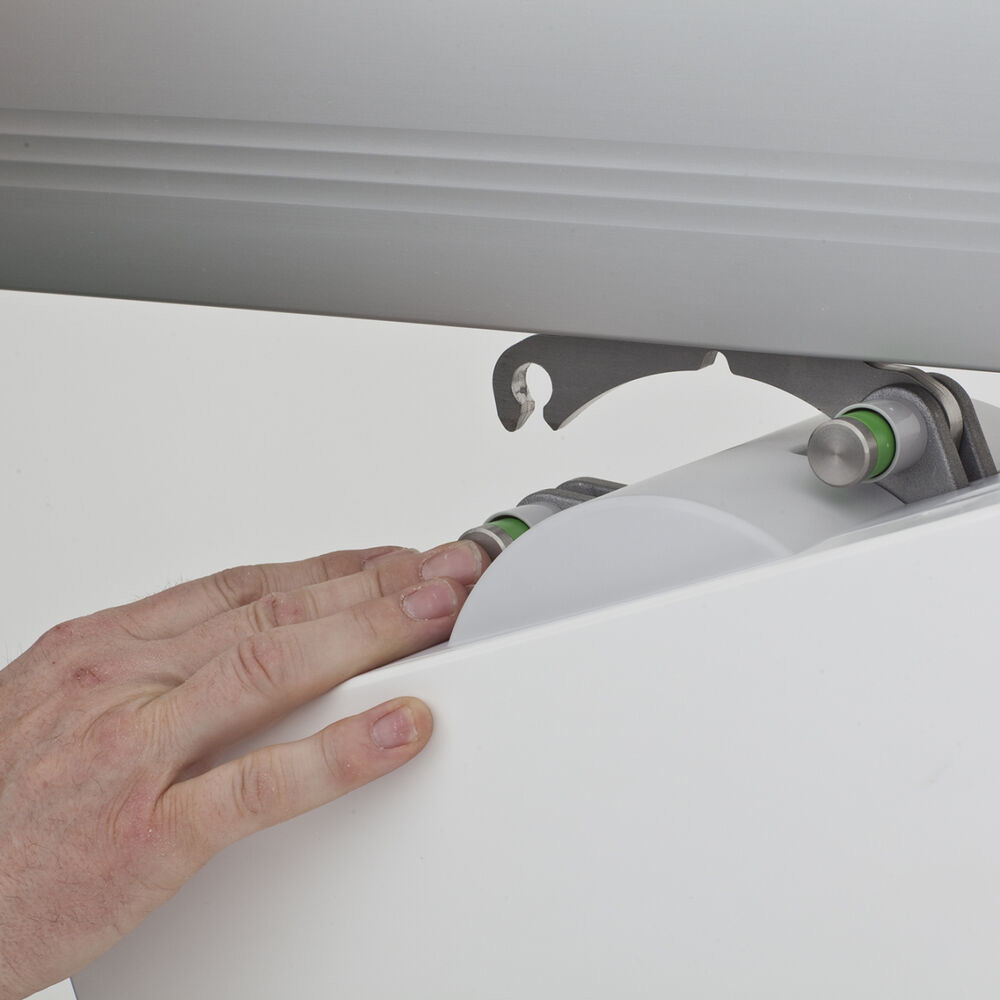

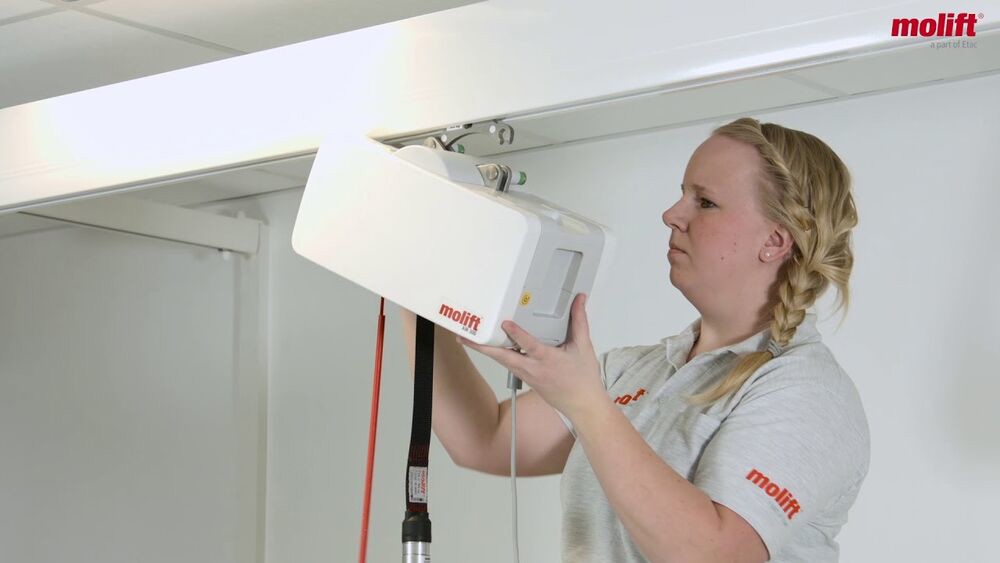

Easy to install

Service and maintenance are easy due to the innovative quick release function.

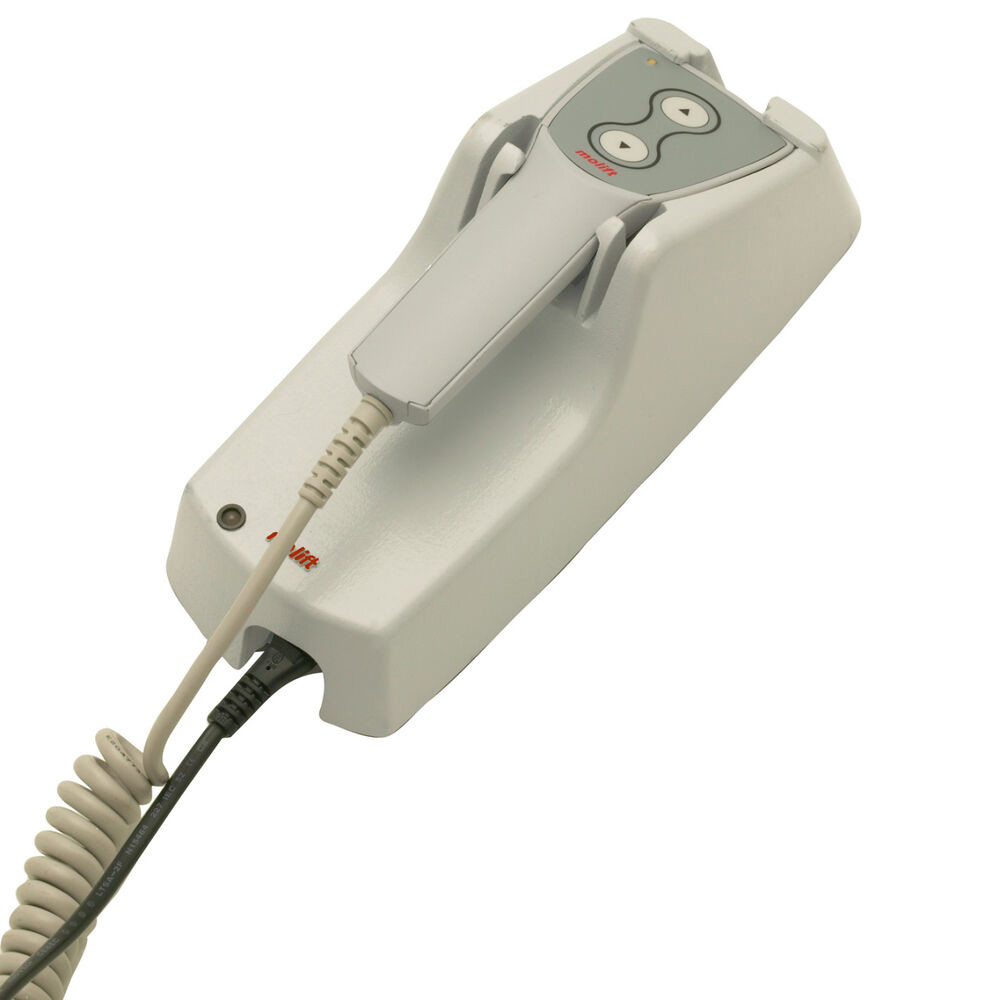

Battery Charger

Wall mounted charger or In-Rail-Charging (IRC).

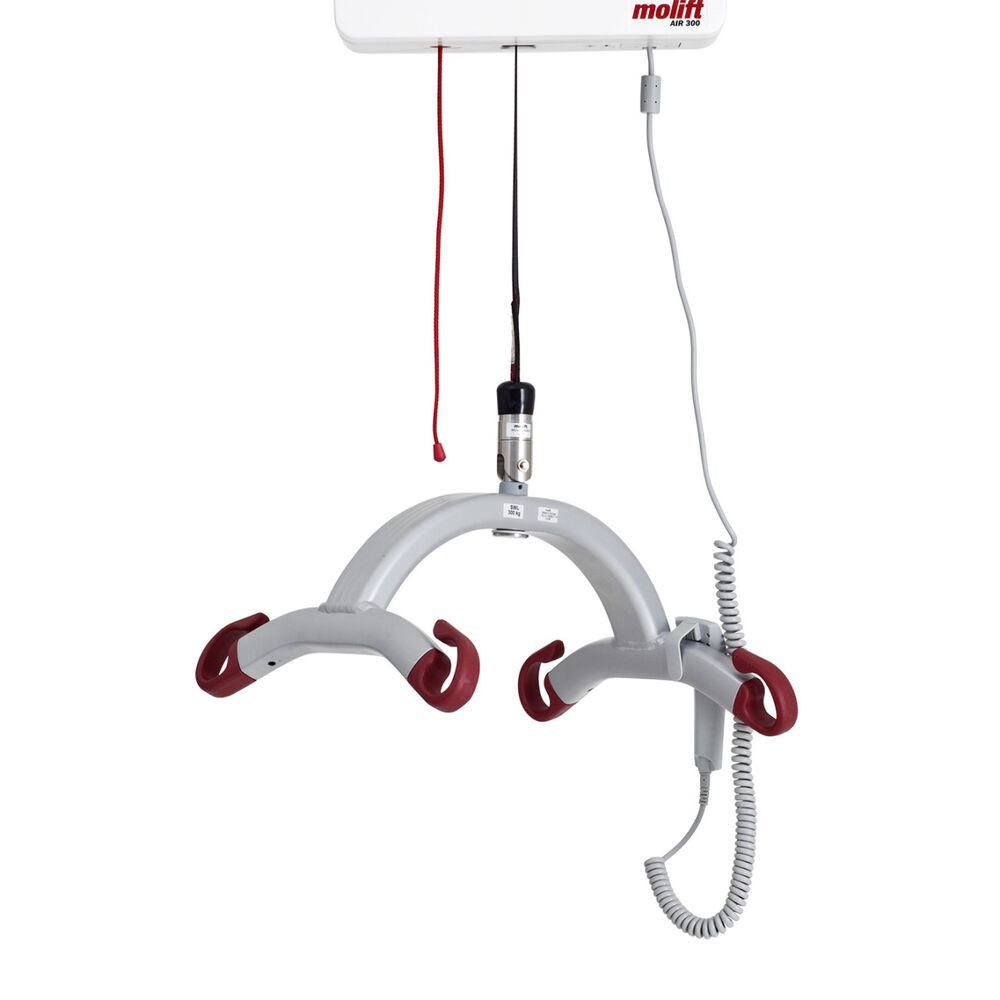

A large lifting interval

With its standard 3 meters lifting strap Molift Air has one of the largest standard hoisting intervals on the market.

Silent and soft operation

Molift Air works very quietly and has a soft start and stop operation. This results in a comfortable and safe feeling for the user during the transfer situation.

Variants

Specifications
Battery	26,4 V NiMh 2,2 Ah	Material	Aluminium, Plastic
Battery charge time (hours)	6	Protection class	IPX4
Battery charger	100–240 V AC, 40–60 Hz	Rated performance	50 hoists at 75 kg
Expected lifetime	30 000 hoisting cycles (SWH)/10 years	Safe working load (SWL) (kg)	300
Height (mm)	195	Service software	Molift Service Tool
Hoisting interval (mm)	3000	Weight (kg)	8,56
Hoisting speed 75 kg (mm/sec)	60	Width (mm)	190
Length (mm)	360

	300	300 Propulsion	300 IRC	300 IRC Propulsion
Item number	M25300	M26300	M27300	M28300

Accessories

8 results found

Sling bars

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
