The Swan is a stable and simple toilet and bathing chair suitable for children and youngsters.
The seat is a smooth shell, which makes it easy to clean. The frame and castors are stainless steel and with rust-proofed surfaces. The shell supports the trunk and shoulders and gives the user good trunk stability. The frame is height adjustable which is important for the carer to be able to use easily and tilt in space comes as standard.
The Swan comes in 6 different sizes and two versions. Size 2 - 3 include a built-in pommel. Size 4 - 7 includes a removable splash guard.
Tilt in space
Holder for pan
|Size 2||Size 3||Size 4||Size 5||Size 6||Size 7|
|Aperture W x D (inch)||4.25x6||4,75x7,75||5x7,5||6x9,75||6x12,75||6x12|
|Back width, bottom of backrest (inch)||9.5||10||11||12||13.75||16.75|
|Back width, top of backrest (inch)||8.75||9.75||12||15.25||18||19|
|Backrest height (inch)||15||15.75||16.5||19||22.5||22.5|
|Effective seat depth (inch)||10,5||12,75||12,75||14,75||18||18|
|Length, with wheels (inch)||18||22||22||22||24.25||24.25|
|Length, without wheels (inch)||15.25||19.5||19.5||19.5||21.5||21.5|
|Mass device (lbs)||17.5||18.75||21||21||23.25||25.25|
|Maximum rated load (lbs)||88.1||155.4||179.6||201.7||225.9||272.2|
|Maximum user mass (lbs)||66.25||132.25||154.25||176.25||198.5||242.5|
|Minimum turning diameter (inch)||56||63||63||61.5||74||74|
|Overall height with wheels (inch)||26.75-33||28-34.25||30.25-37||31-37.5||33.25-40.25||33.25-40.25|
|Overall height without wheels (inch)||23.25-29.5||24.5-30.25||27.25-33.5||27.5-33.75||30.25-36.5||30.25-36.5|
|Overall width without wheels (inch)||18||19.75||19.75||19.75||21.25||24.5|
|Overall width, with wheels (inch)||19.5||21||21||21||22.75||25.75|
|Required width of right angled corridor (inch)||28||31.5||31.5||30.75||37||37|
|Seat plane angle (°)||18||18||20||20||22||27|
|Seat surface height at front edge, with wheels (inch)||14,5-20,5||18,75-25||18,75-25||18,75-25||18,75-25||18,75-25|
|Seat surface height at front edge, without wheels (inch)||11-17||15,25-21,5||15,25-21,5||15,25-21,5||15,25-21,5||15,25-21,5|
|Seat width front (inch)||11,75||13,25||14||14,75||16,75||18,5|
Size 2-3 is delivered without castors. Size 4-7 is delivered with castors.

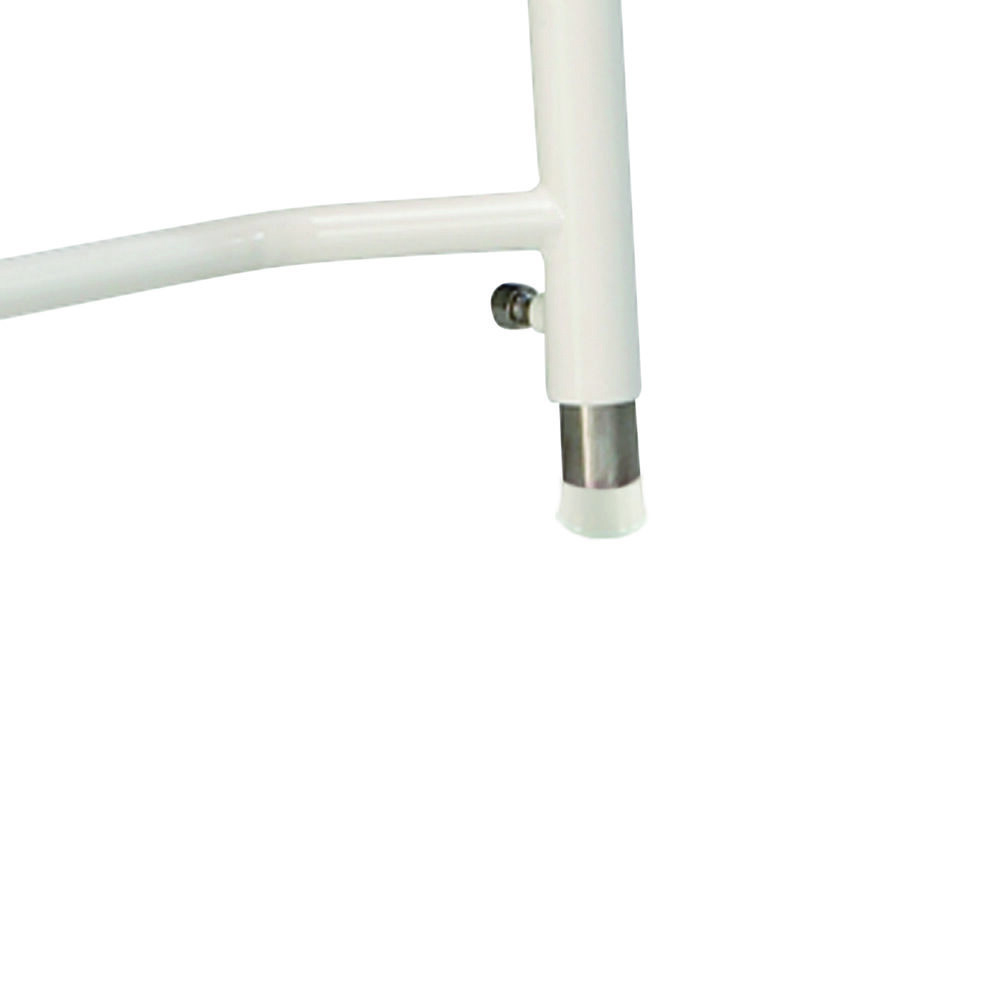

Without castors (size 2+3)

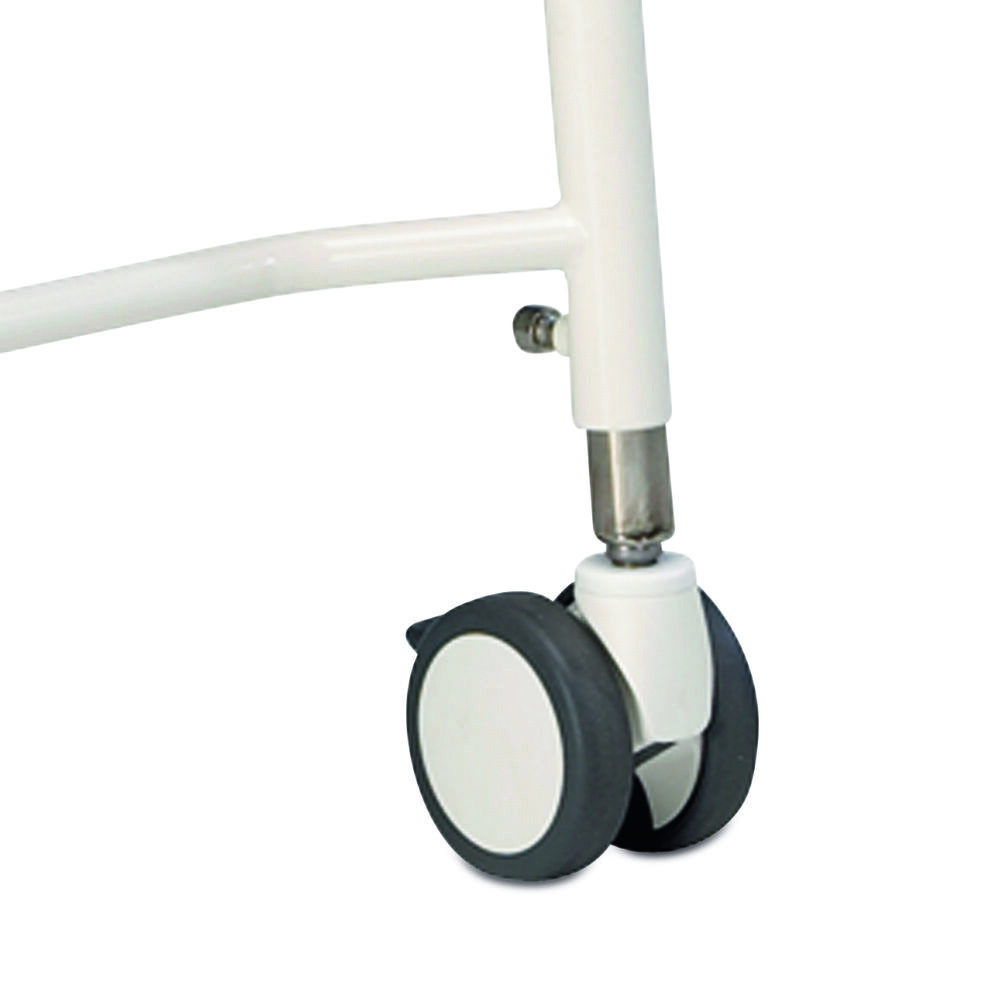

With castors (size 4+5+6+7)
