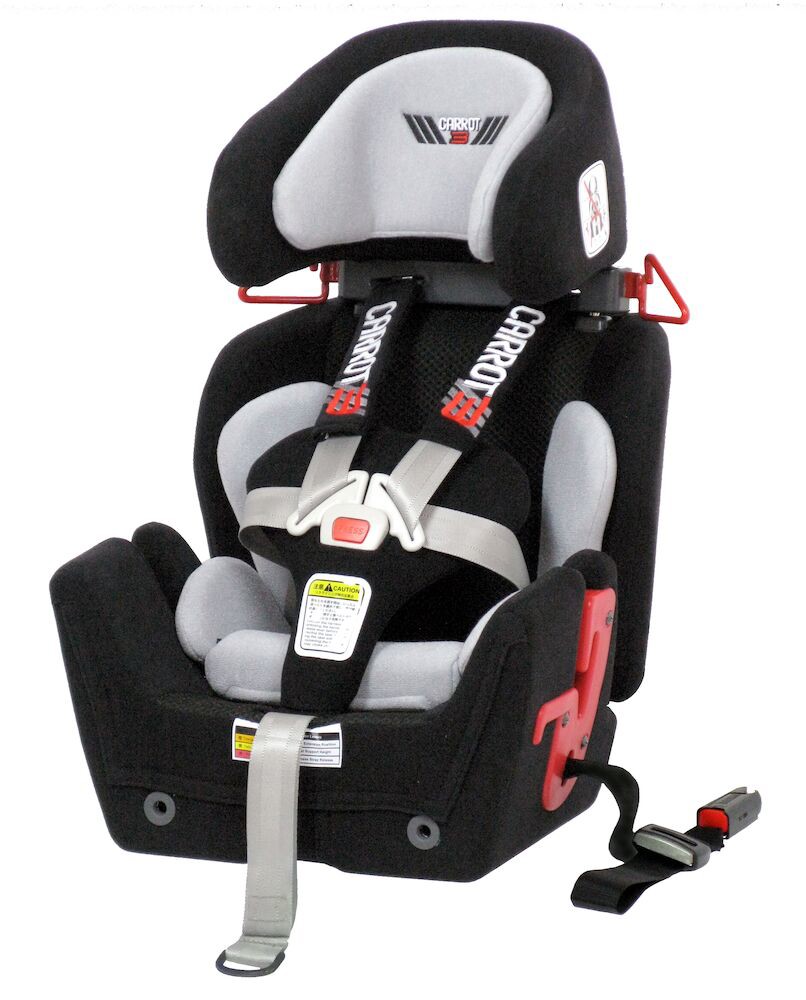

Convaid Carrot 3 Car Seat

The Carrot 3 provides optimal positioning for insufficient head, trunk, and pelvic stability; with extensive growth capabilities.

The Convaid Carrot 3 Special Needs Child Restraint System is designed for children and teens ages 3 to 15. The back reclines flat (180 degrees) from a fully upright position (90 degrees). Optional extensions allow for years of potential growth. The contoured headrest, body-conforming foam, and optional shoulder wings improve side impact protection. The firm lateral supports are optional and encourage midline alignment of the trunk. The inserts for the seat, hips, and trunk come standard and provide custom positioning.

Features

High density foam inserts for optimal positioning and maximum comfort.

Adaptive positioning

High density foam inserts for optimal positioning and maximum comfort.
Convaid Carrot 3 Car Seat

Grows with your child

30-108 lbs / 37"-60".
Free Recline

"Free angle" recline 180°

Allows for easy diaper changes and conforms to vehicle’s seat.

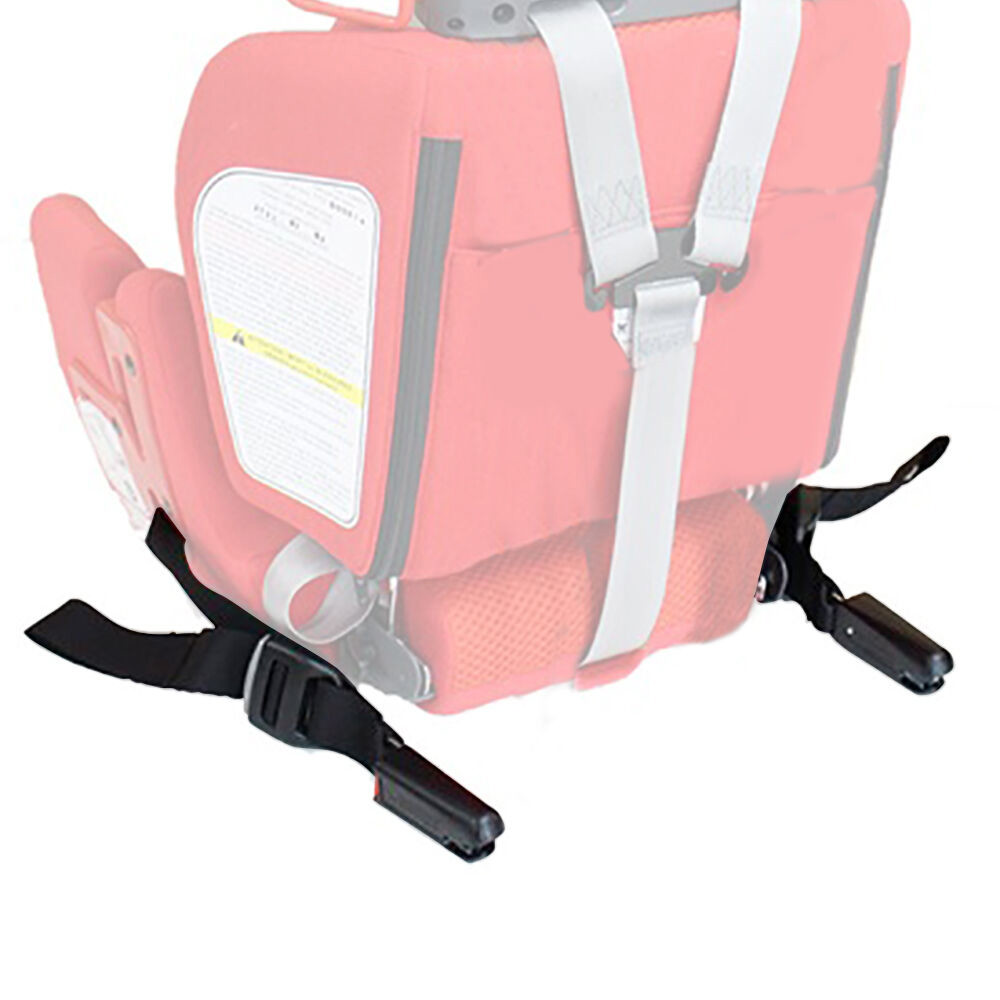

LATCH equipped

LATCH equipped

Lower Anchors and Tethers for Children

Standard specifications

Black
Blue
Red
Item number CT3000-10 CT3000-20 CT3000-30
Approximate total user height (Inch) 37-60 37-60 37-60
Back height (inch) 11.8-12.8 11.8-12.8 11.8-12.8
Head support height (inch) 8.5 8.5 8.5
Maximum user weight (lbs) 108 108 108
Minimum user weight (lbs) 30 30 30
Product weight (lbs) 19.1 19.1 19.1
Seat depth (inch) 9.8-11.3 9.8-11.3 9.8-11.3
Seat width (inch) 11.5 11.5 11.5

Options

Tether strap

For vehicles equipped with a top tether anchor.

Top securement strap

For vehicles not equipped with a top anchor.

Lower securement strap

For vehicles not equipped with lower anchors.

Choose from three color options.

Black

Blue

Red

The 2" & 4" backrest extensions cannot be used simultaneously.

2" backrest extension

Extends back height to 13.8".

4" backrest extension

Extends back height to 15.8".

Shoulder protector wings

Extends back height 6".

Firm lateral trunk supports (black)

Width adjustment from 10"-12", and 2" of height adjustment.

Rodded seat extension (large/curved).

Extends seat depth 7".

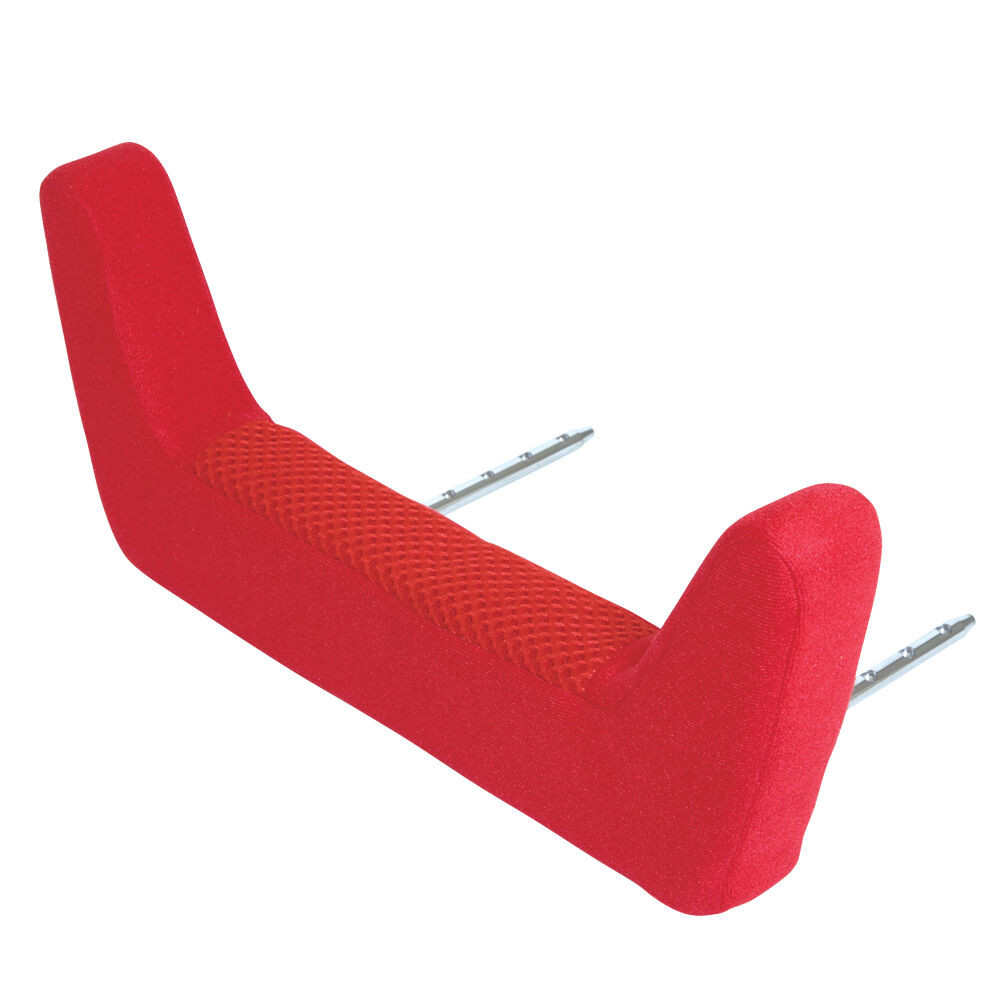

Rodded seat extension (small/90°)

Extends seat depth 2".

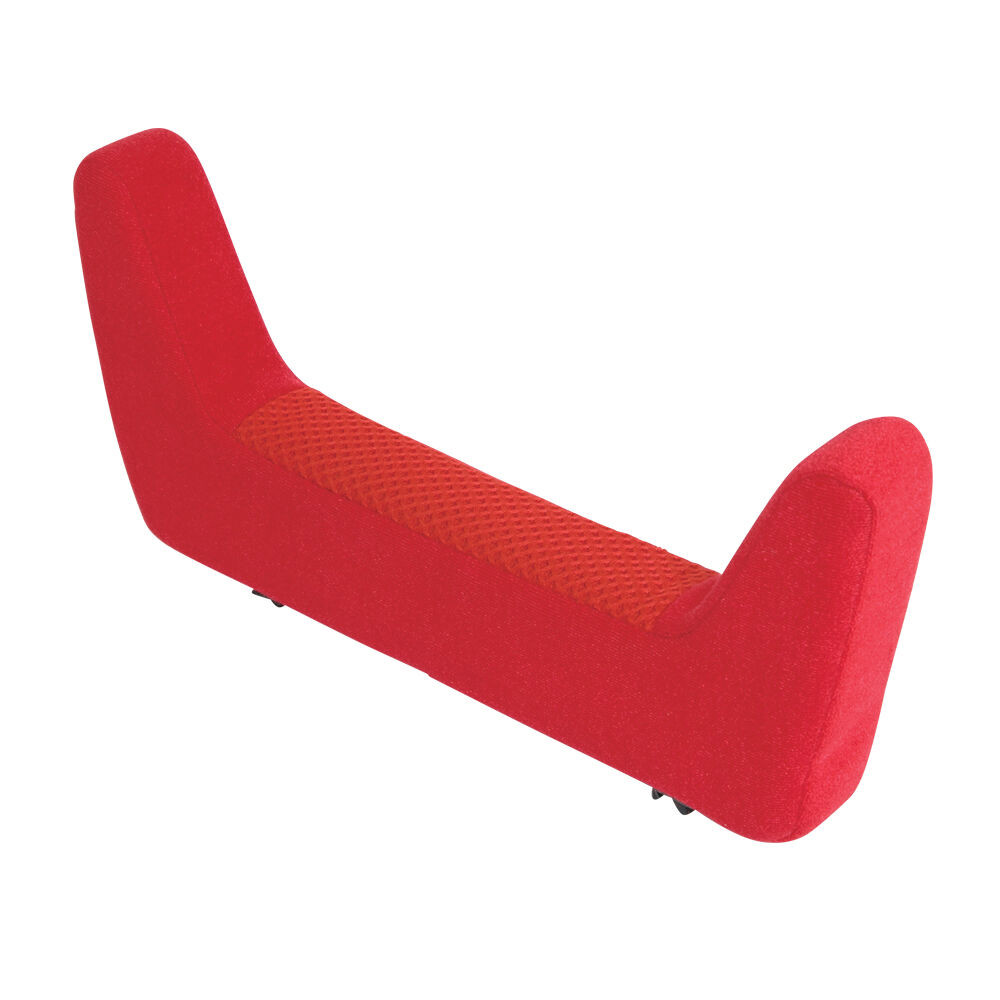

2" Seat extension

Extends seat depth to 12".

4" Seat extension

Extends seat depth to 14".

Seat angle adjustment wedge

The wedge changes the seat-to-back angle by raising the front of the restraint system. (Height: 4.25" / Angle:20°)

Pommel

Separates thighs to improve hip alignment and stabilizing sitting posture.

Anti-adduction/knee separator pad

Can be used facing forwards as a knee separator or facing the back of the Carrot 3 as an anti-addiction pad.

The rodded footrests provide lower extremity support for added comfort, positioning, and improved circulation.

Rodded footrest

Available in 3 sizes: Small (adjusts from 10"-12"), Medium (adjust from 12"-16"), Large (adjust from 14"-18").

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
