R82 High-low:xo Frame

The High-low:xo is an indoor or outdoor frame for a seating system with user friendly height adjustment from floor to table height.

The High-low:xo frame is configured to match the needs of the user and caregivers. Deciding between the various functions and accessories makes it possible to reach the best solution. A solution that can compensate for the limitations in body function (and structure), enable activity and participation, while also taking the environment, where the frame is used, into account. Furthermore it helps optimize the work conditions for the caregiver.

The High-low:xo has been designed to match the needs of our R82 x:panda, R82 Panda Futura, R82 Panda Futura 5, R82 Stingray and the Convaid Trekker users.

All models of the High-low:xo complies with EN-12182:2012. Furthermore, the High-low:xo outdoor complies with EN 12183:2014 and ISO 7176-19 to ensure safe transportation of users in motor vehicles.

The High-low:xo is available in two models; indoor and outdoor. The indoor frame is available in three sizes and the outdoor frame in two sizes. The max load depends on the model, size and use of the frame.

Features

Height adjustment_GIF

Height adjustment

The High-low:xo takes the user from the floor to table height assisted by a gas spring, power or hydraulic with a minimum of frontal / backwards movement to enable the user to participate in activities important to them.
Fixed mounting or interface_High-low:xo

Fixed mounting or interface

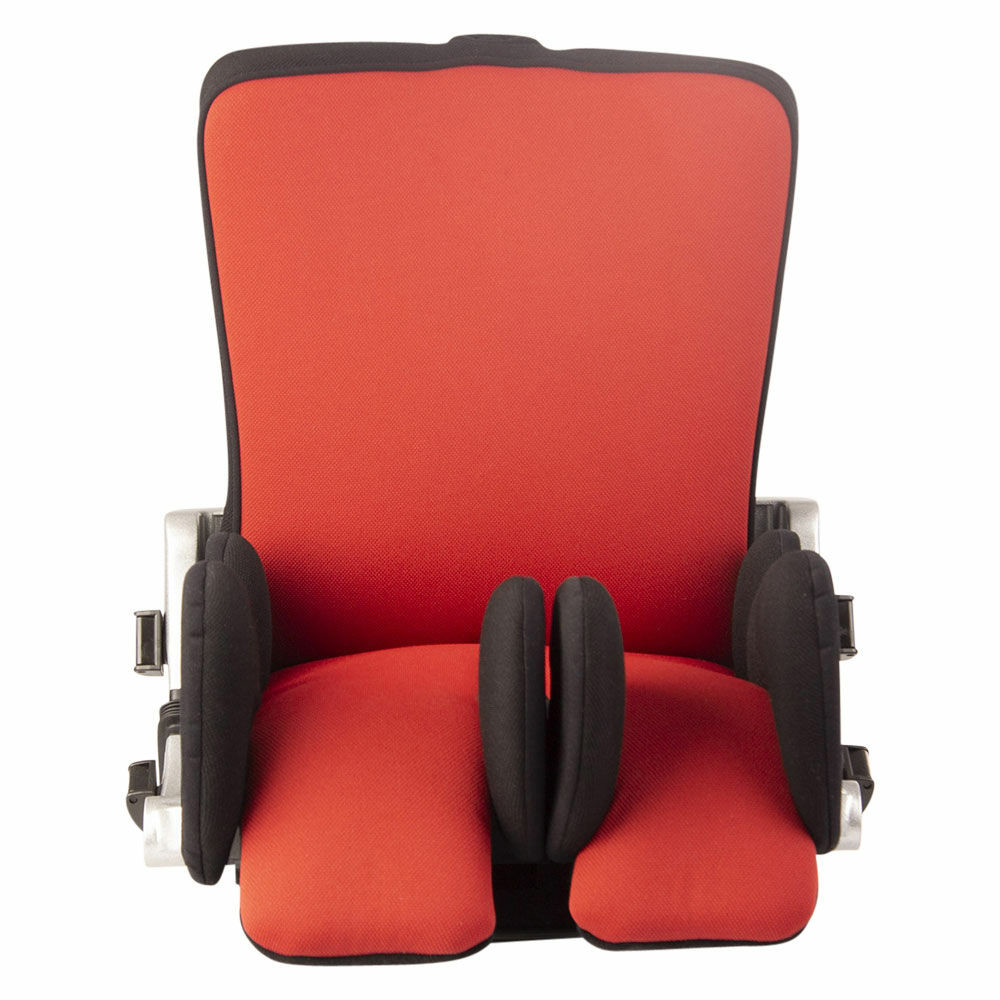

An adapter offers simple and secure mounting of the seat to the frame, and the interface makes is easy to change to another seat. Larger seats can be mounted directly onto the High-low:xo.
Tilt adjusment

Tilt of the seat plate angle

The High-low:xo tilts from -10° to 30°. Tilting can help position the user and help with their abilities to maintain an upright position of the head and trunk. Furthermore, the adjustability can help create the best possible working condition for the caregiver.
Safe transportation in vehicles High-low:xo

Safe transportation in vehicles

The High-low:xo outdoor complies with the international transit wheelchair standard ISO 7176-19. The High-low:xo outdoor can be used with seat units that comply with ISO 16840-4.

Variants

Indoor frame, gas, size 1

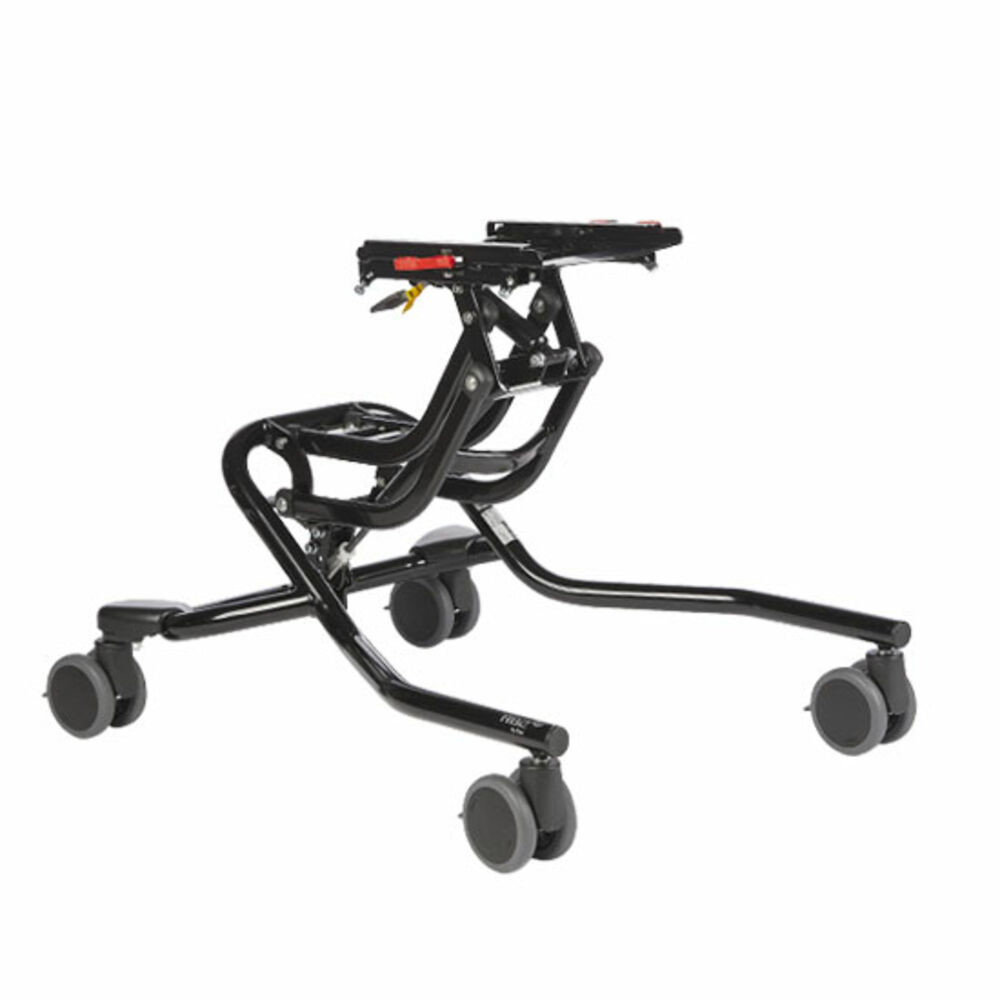

Indoor frame, gas, size 2
Indoor frame, power, size 1
Indoor frame, power, size 2
Indoor frame, power, size 3
Indoor frame, hydraulic, size 2
Indoor frame, hydraulic, size 3

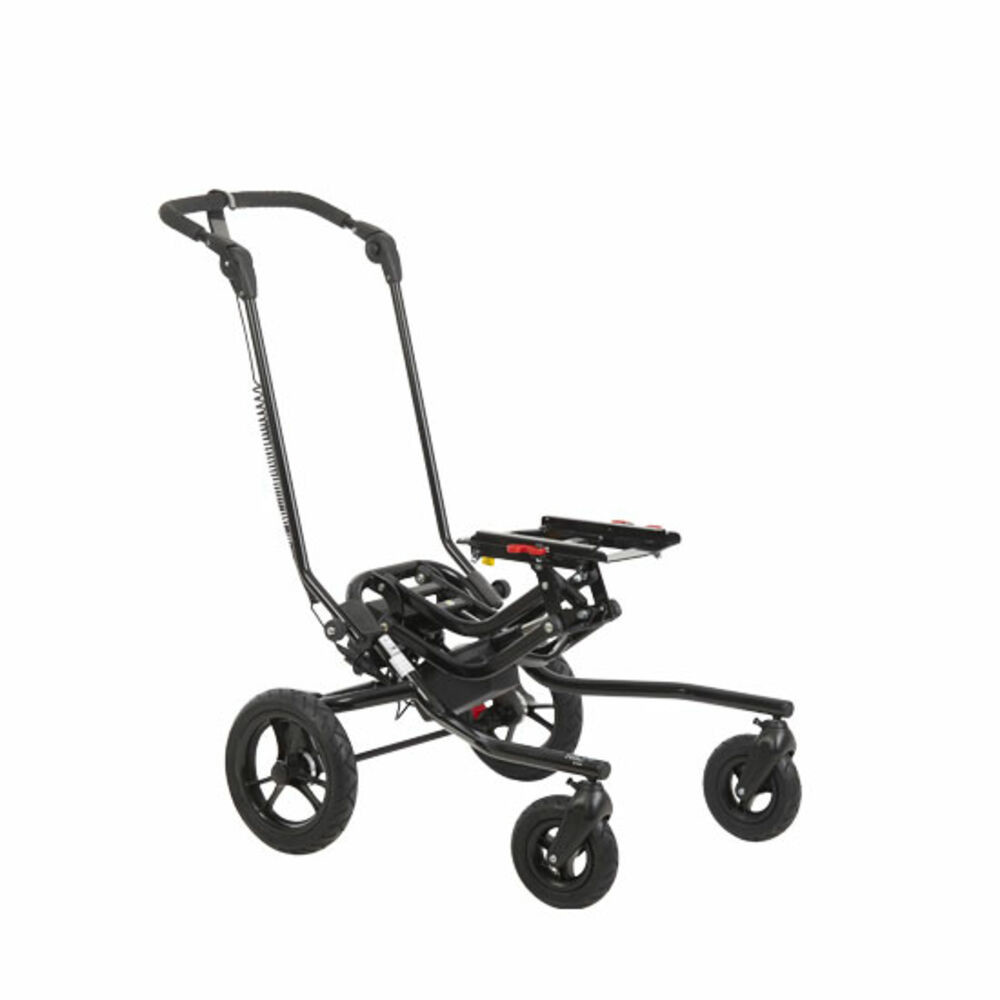

Outdoor frame, gas, size 1
Outdoor frame, gas, size 2
Outdoor frame, power, size 1
Outdoor frame, power, size 2
Folded height (mm) - - - - - - - 460 460 460 460
Footrest to adaptor plate (mm) - - - - - - - 50-290 50-290 50-290 50-290
Front wheel Height × Width (mm) - - - - - - - 190x50 190x50 190x50 190x50
Horizontal location of axle (mm) - - - - - - - 200-210 255-265 200-210 255-265
Leg to seat surface angle (°) - - - - - - - (-30)-30 (-30)-30 (-30)-30° (-30)-30°
Length (mm) 655 (with 75 mm castors) 795 (with 75 mm castors) 660 (with 75 mm castors) 795 (with 75 mm castors) 795 (with 75 mm castors) 795 (with 100 mm castors) 795 (with 100 mm castors) 795 (with standard solid wheels) 800 (with standard solid wheels) 795 (with standard solid wheels) 800 (with standard solid wheels)
Mass device (kg) 13 13 16 17 18 19 19 22 22 25 26
Mass of the heaviest part (kg) - - - - - - - 18 18 21 22
Max load (kg) 70 75 70 75 95 75 100 70 75 70 75
Maximum rated load (kg) 85 90 88 94 116 96 121 94 99 97 103
Maximum slope (for use of parking brake) (°) - - - - - - - 7 7 7 7
Maximum user mass in transportation (kg) - - - - - - - 57 57 57 57
Minimum turning radius (mm) 400 475 400 475 475 475 475 875 930 875 930
Minimum user mass in transportation (kg) - - - - - - - 22 22 22 22
Overall height to push brace with 100 mm castors (mm) - - 1130 1130 1130 1130 1130 - - - -
Overall height to push brace with 125 mm castors (mm) - - 1170 1170 1170 1170 1170 - - - -
Overall height to push brace with 75 mm castors (mm) 1100 1100 1100 1100 1100 - - - - - -
Overall height to push brace with standard solid wheels (mm) - - - - - - - 1045 1045 1045 1045
Overall length (mm) 670 830 670 830 830 830 830 1070 1170 1070 1170
Overall length with leg rest (mm) - - - - 1115 - - 1115 1190 1115 1190
Overall width (mm) 560 620 560 620 620 620 620 660 700 660 700
Pivot width (mm) - - - - - - - 1180 1250 1180 1250
Rear wheel Height × Width (mm) - - - - - - - 290x60 290x60 290x60 290x60
Seat plane angle (°) (-10)-30° (-10)-30° (-10)-30 (-10)-30 (-10)-30 (-10) - 30 (-5) - 25 (-10)-30 (-10)-30 (-10)-30° (-10)-30°
Seat surface height at front edge (mm) - - - - - - - 300-720 345-720 300-720 345-720
Seat surface height at front edge, 100 mm castors (mm) 200-620 245-620 200-610 240-610 300-560 240-600 300-540 - - - -
Seat surface height at front edge, 125 mm castors (mm) 240-660 285-660 240-650 280-650 350-600 280-640 340-580 - - - 350-600
Seat surface height at front edge, 75 mm castors (mm) 170-590 215-590 170-580 210-580 270-530 - - - - - -
Static stability downhill (°) 10 10 10 10 10 10 10 10 10 10 10
Static stability sideways (°) 10 10 10 10 10 10 10 10 10 10 10
Static stability uphill (°) 10 10 10 10 10 10 10 10 10 10 10
Wheel size (mm) 75/100/125 Ø (3/4/5") 75/100/125 Ø (3/4/5") 75/100/125 Ø (3/4/5") 75/100/125 Ø (3/4/5") 75/100/125 Ø (3/4/5") 100/125 Ø (4/5") 100/125 Ø (4/5") - - - -

Hydraulic indoor measurements on "mass device", "max. rated load" & "length": The High-low:xo measurements above are based on the use of 100 mm castors with the frame in the most basic configuration. Different settings may result in another set of measurements. As we supply various types of accessories, the weight is listed without. Castors diameter: 100/125 mm (4/5")

Power indoor measurements on "mass device", "max. rated load" & "length": The High-low:xo measurements above are based on the use of 75 mm castors with the frame in the most basic configuration. Different settings may result in another set of measurements. As we supply various types of accessories, the weight is listed without. Castors diameter: 75/100/125 mm (3/4/5")

Power Outdoor measurements on "mass device", "max. rated load" & "length": The High-low:xo Outdoor measurements above are based on the use of standard solid wheels with the frame in the most basic configuration. Different settings may result in another set of measurements. As we supply various types of accessories, the weight is listed without.

Gas spring indoor measurements on "overall height to push brace", " mass device", "max. rated load" & "length": The High-low:xo measurements above are based on the use of 75 mm castors with the frame in the most basic configuration. Different settings may result in another set of measurements. As we supply various types of accessories, the weight is listed without. Castors diameter: 75/100/125 mm (3/4/5")

Gas spring Outdoor measurements on "overall height to push brace", " mass device", "max. rated load" & "length": The High-low:xo Outdoor measurements above are based on the use of standard solid wheels with the frame in the most basic configuration. Different settings may result in another set of measurements. As we supply various types of accessories, the weight is listed without.

Options

The type and size of seat determines the size of the High-low:xo and the adapter.

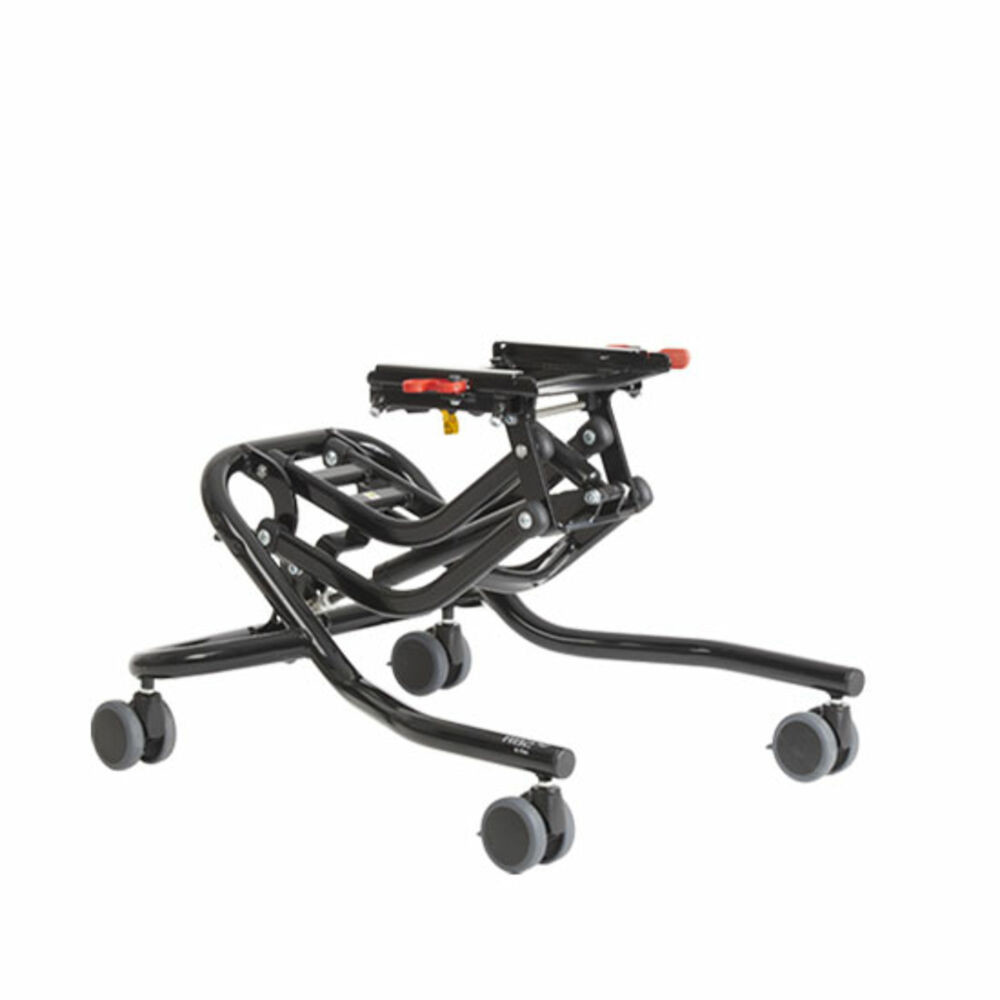

Size 1 indoor frame

Size 2 indoor frame

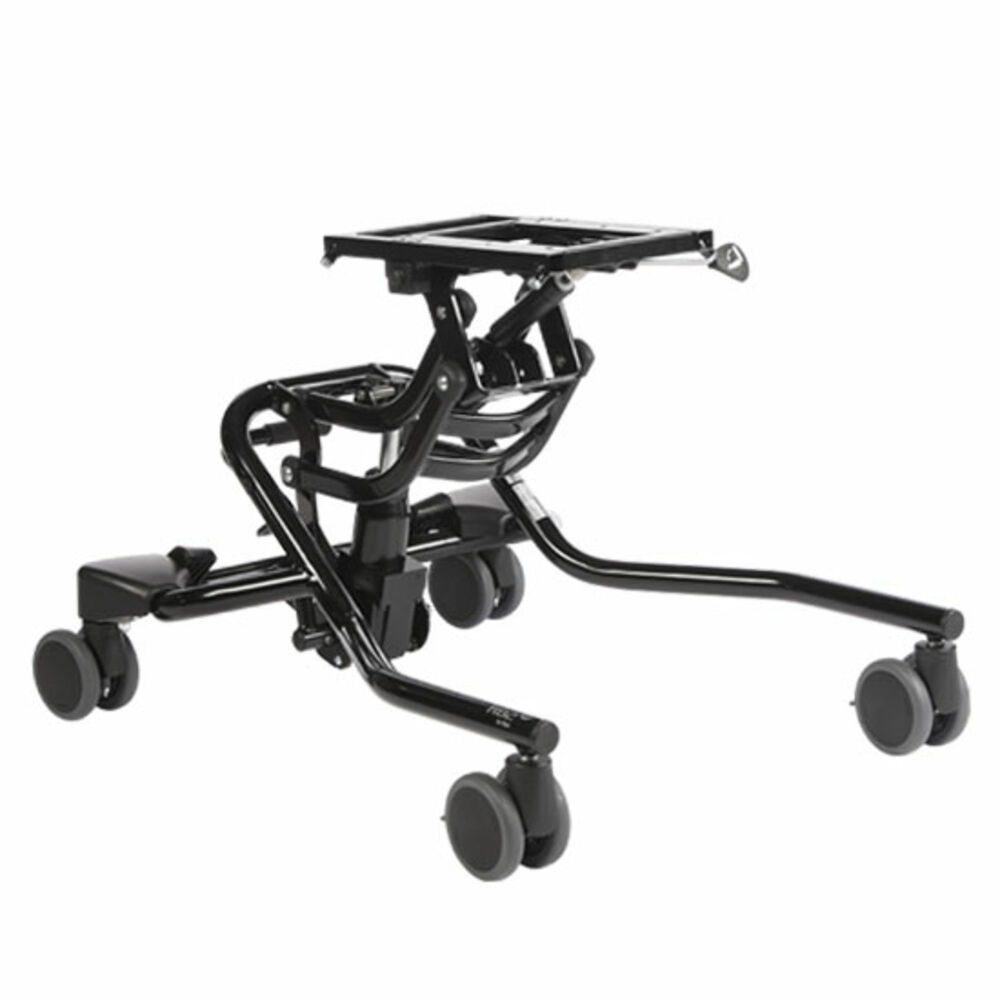

Size 3 indoor frame

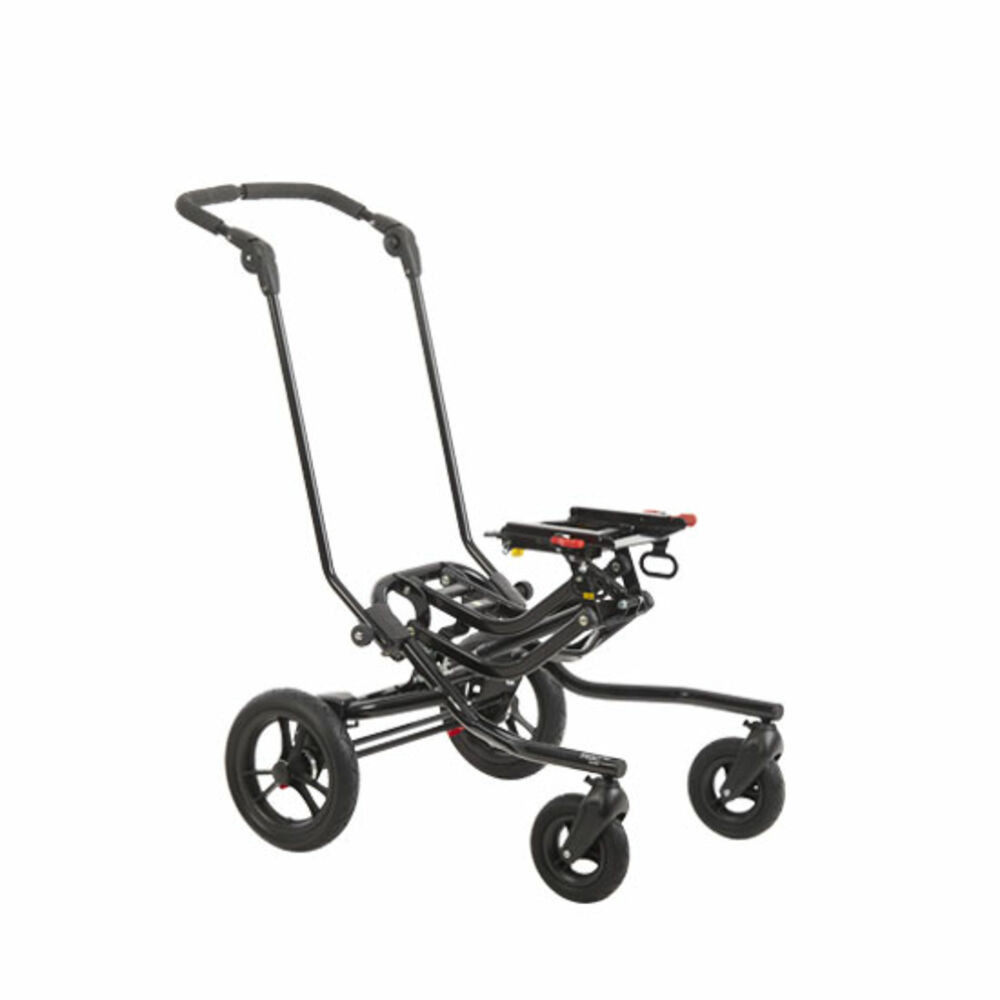

Size 1 outdoor frame

Size 2 outdoor frame

High-low:xo is available in three colours.

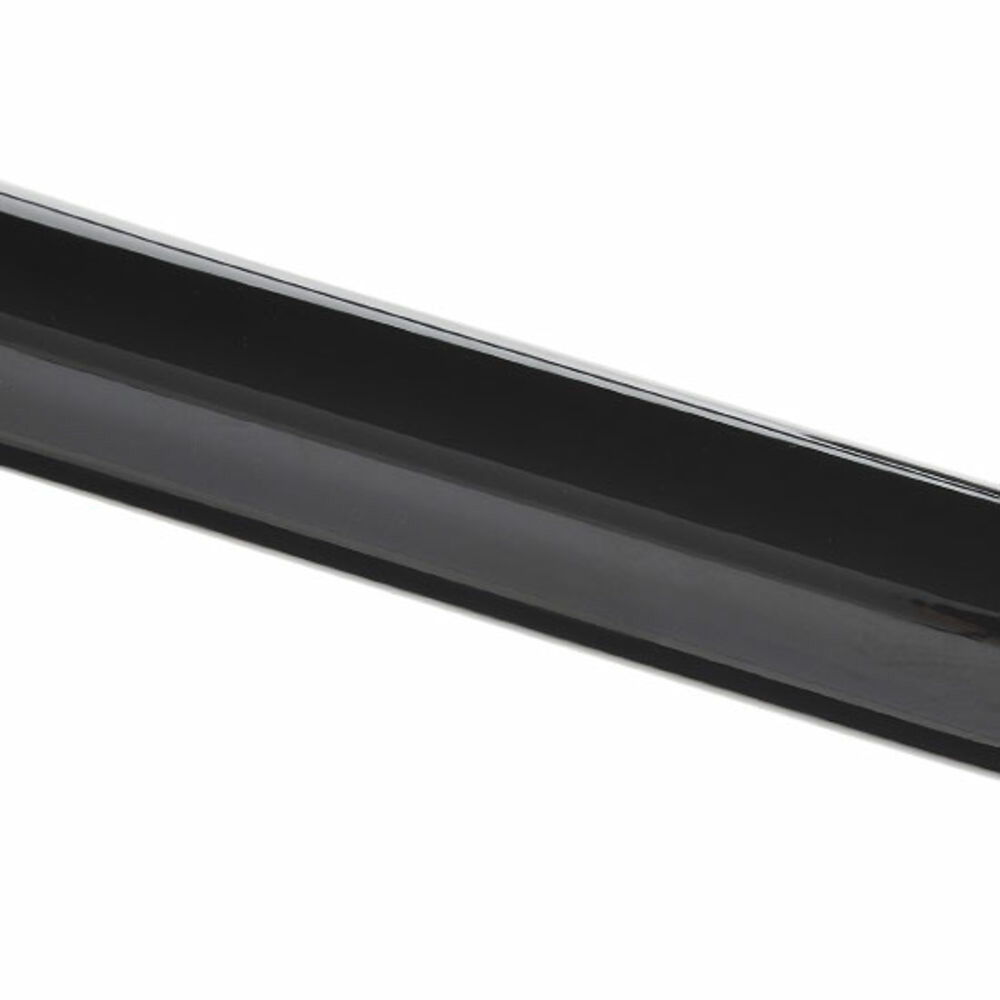

Black

Available for size 1, 2 and 3

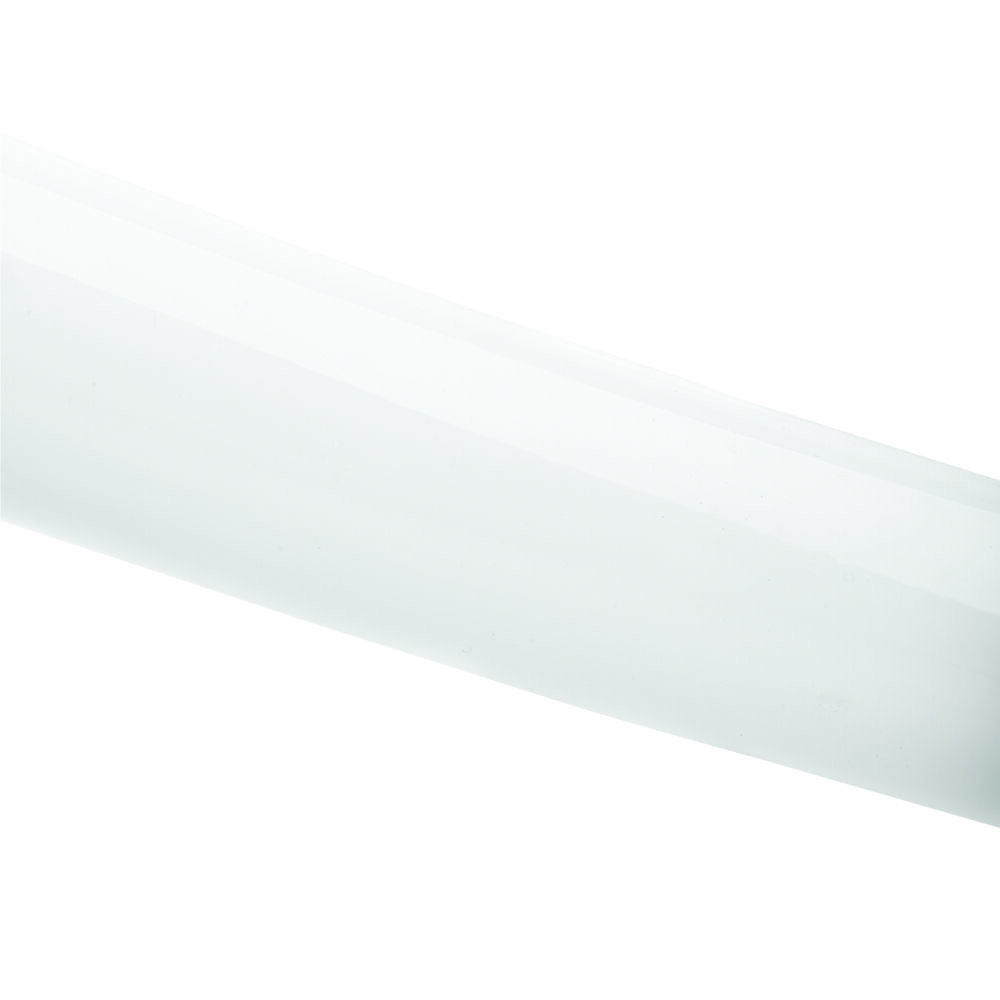

White

Available for frames with gas spring or power operated height adjustment

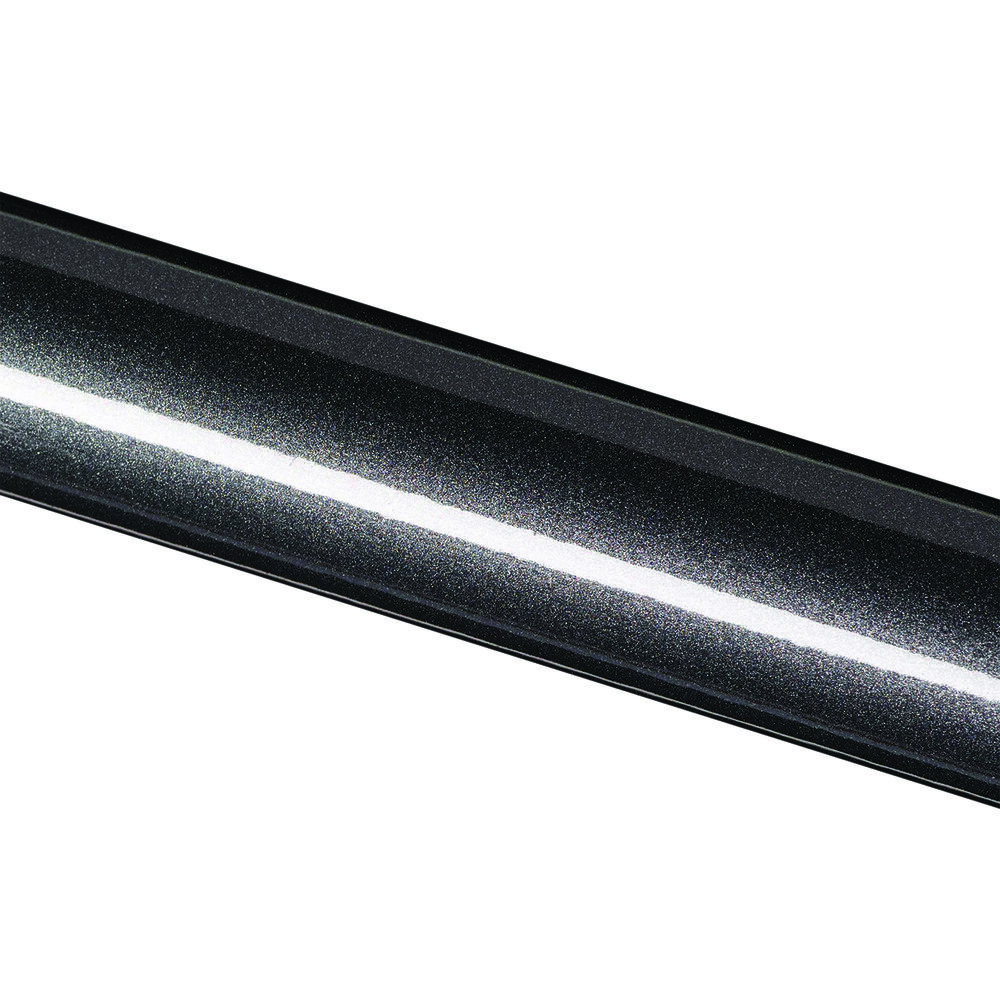

Antrachite grey

Available for size 1

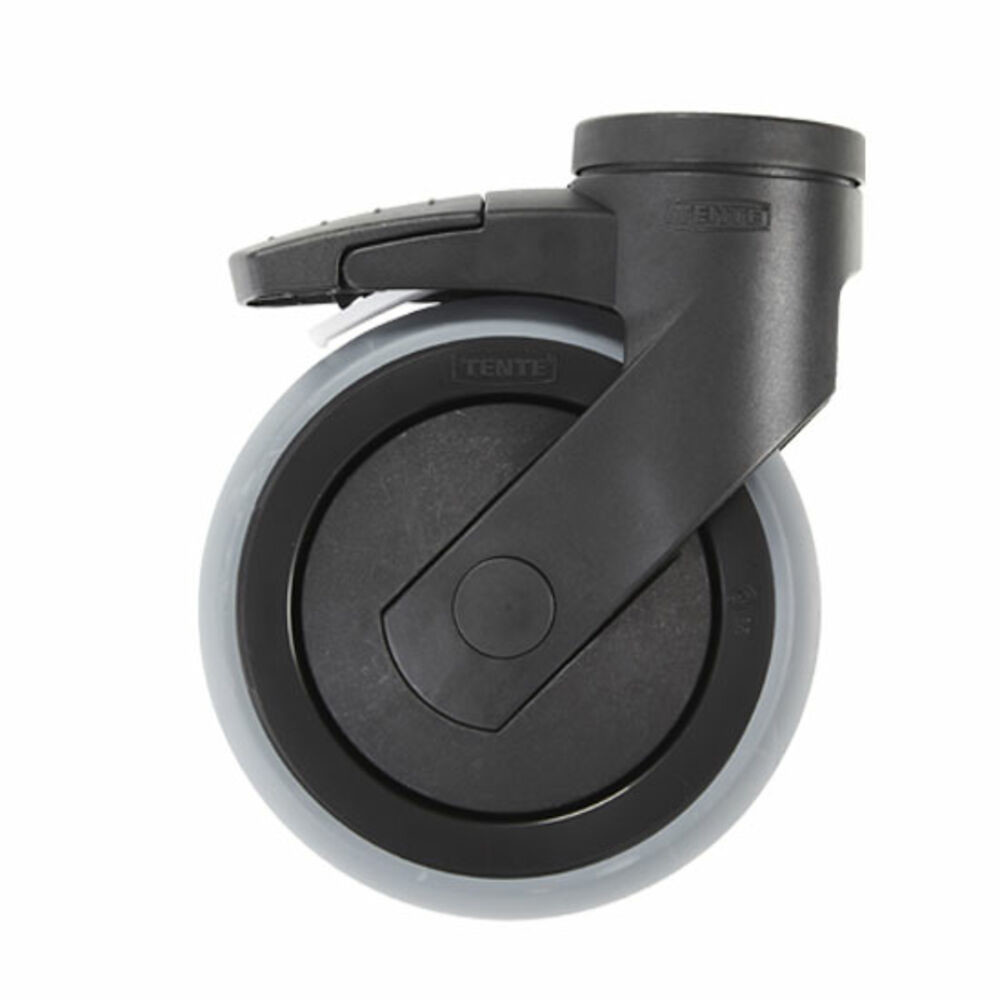

When choosing castor size, it is important to consider that smaller castors help decrease the floor to seat height and the larger castors improve the manoeuvrability of the frame.

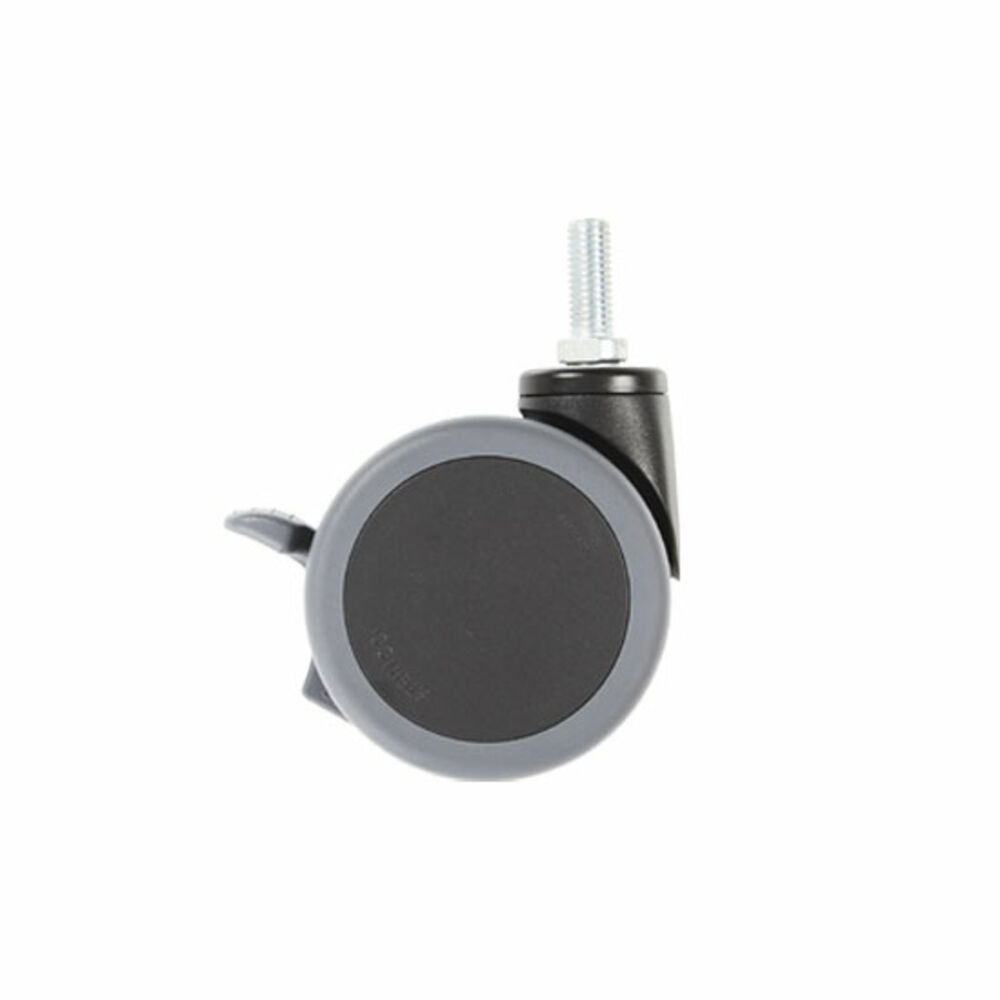

75 mm castors

Available on frames with gas spring or power operated height adjustment

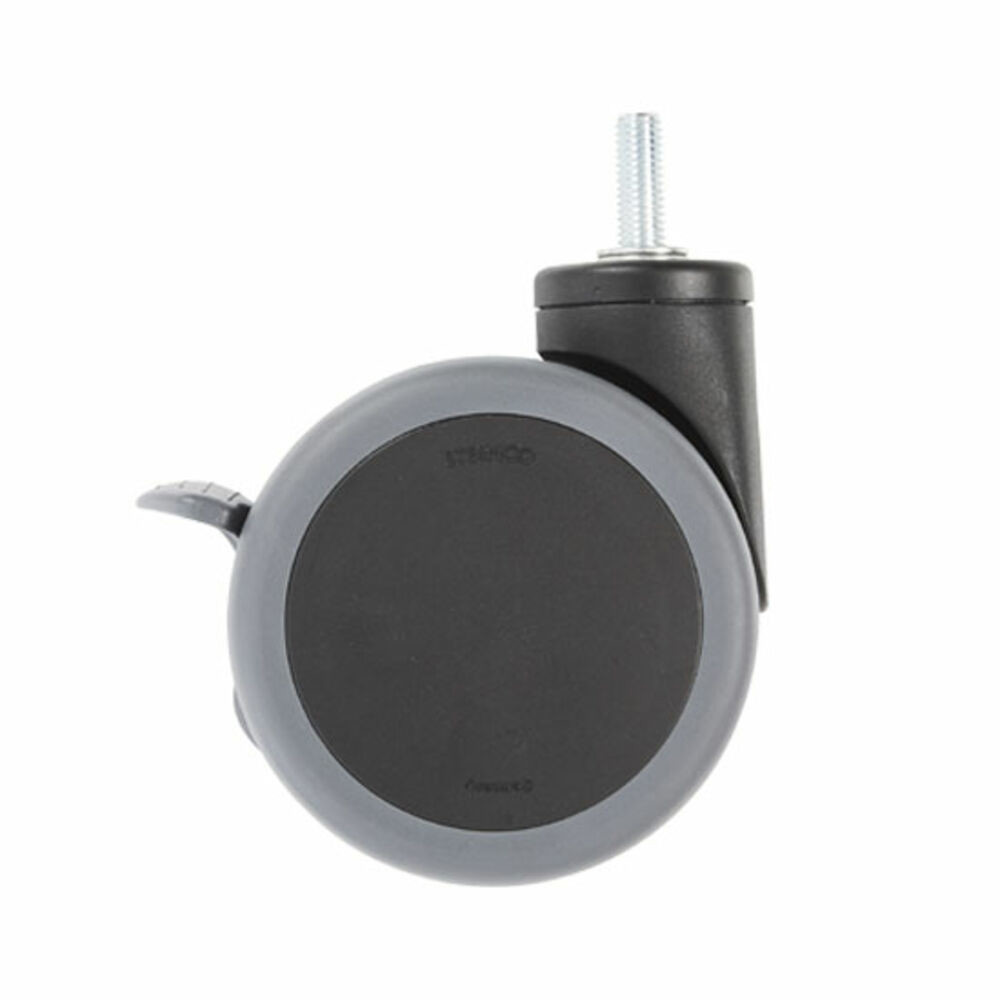

100 mm castors

125 mm castors

Hand operated central brake

Available for 100 mm castors. Using a central brake enable the caregiver to quickly lock and unlock the castors without having to move around the frame.

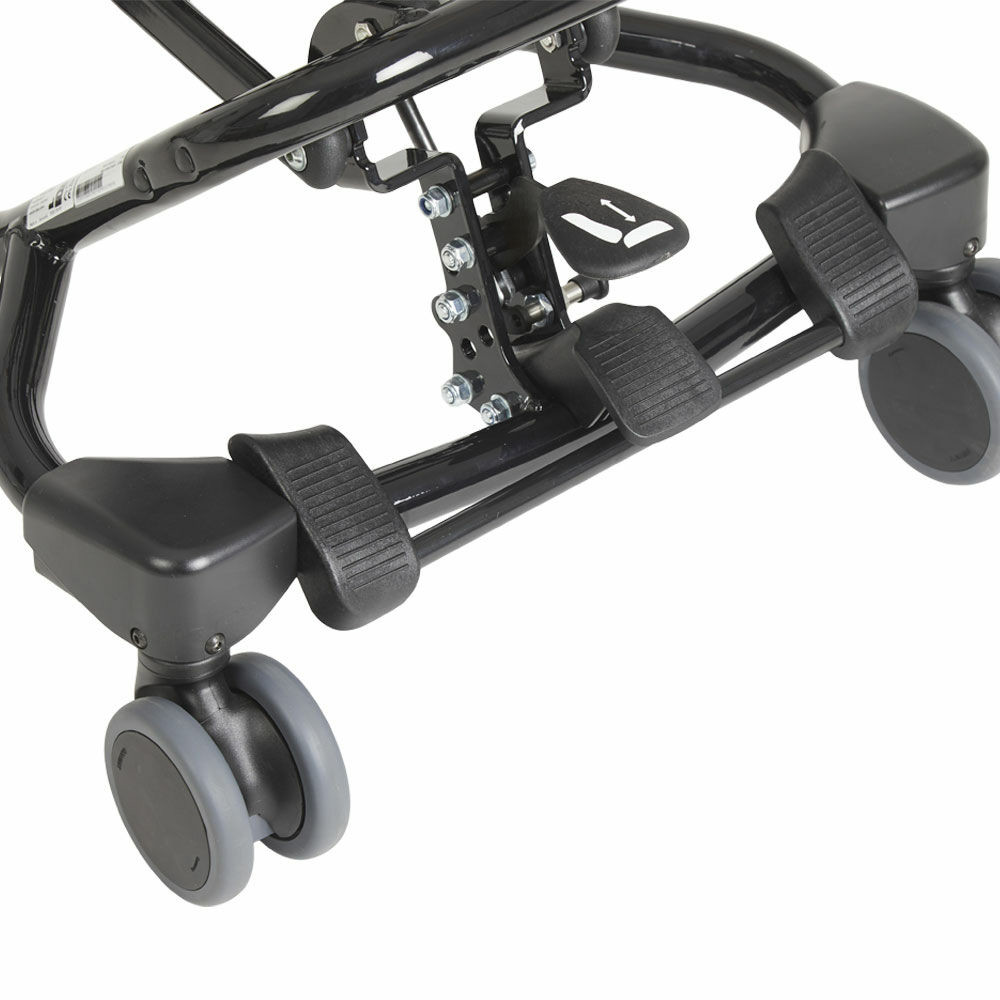

Foot operated central brake

Available for 100 mm castors. Using a central brake enable the caregiver to quickly lock and unlock the castors without having to move around the frame.

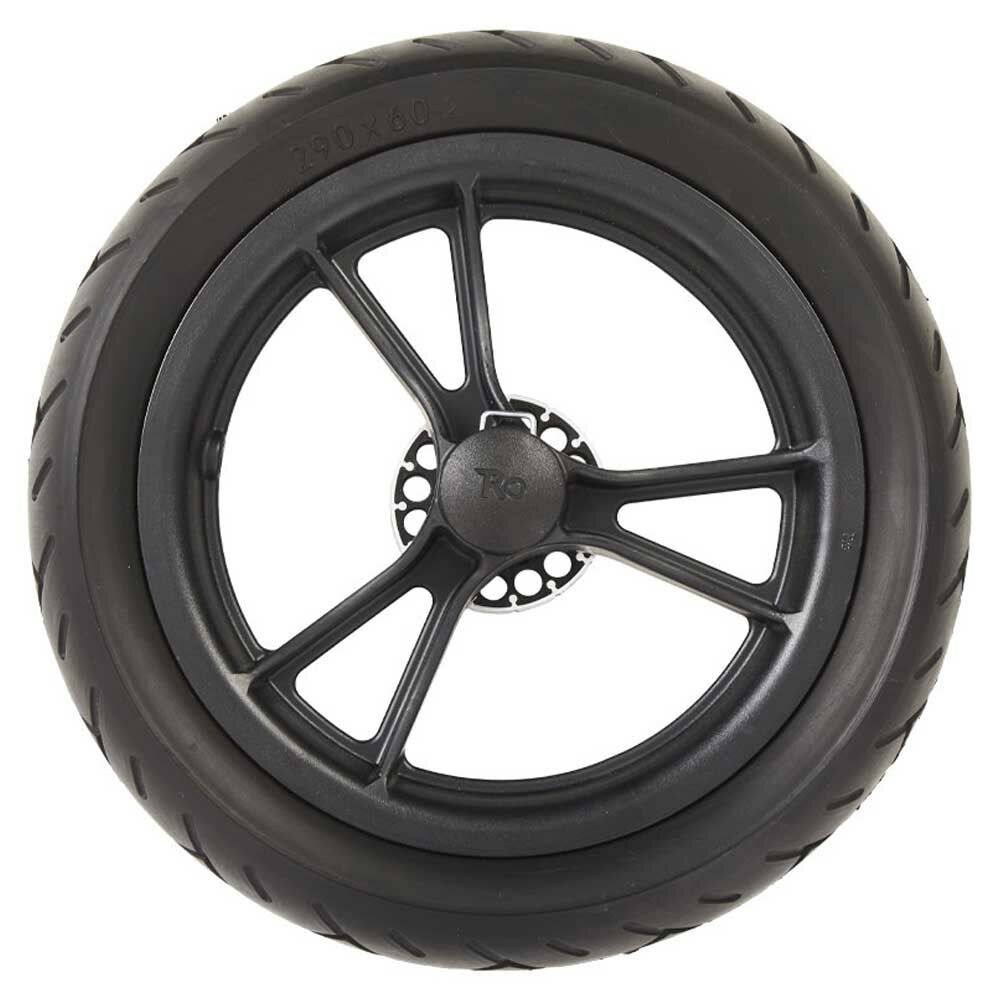

7" solid wheels

Solid wheels do not require monthly check of the air pressure and requires minimal maintenance.

7" air wheels

Air wheels provide better suspension, due to their ability to deform under impact, such as when rolling over a small stone or through a small hole.

12" solid wheels

Solid wheels do not require monthly check of the air pressure and requires minimal maintenance.

12" air wheels

Air wheels provide better suspension, due to their ability to deform under impact, such as when rolling over a small stone or through a small hole.

Foot operated parking brake

Hand operated decelerating brake

The hand operated decelerating brakes can help slow down propulsion when using the High-low:xo by pressing the handle. This can be useful when going downhill.

Gas

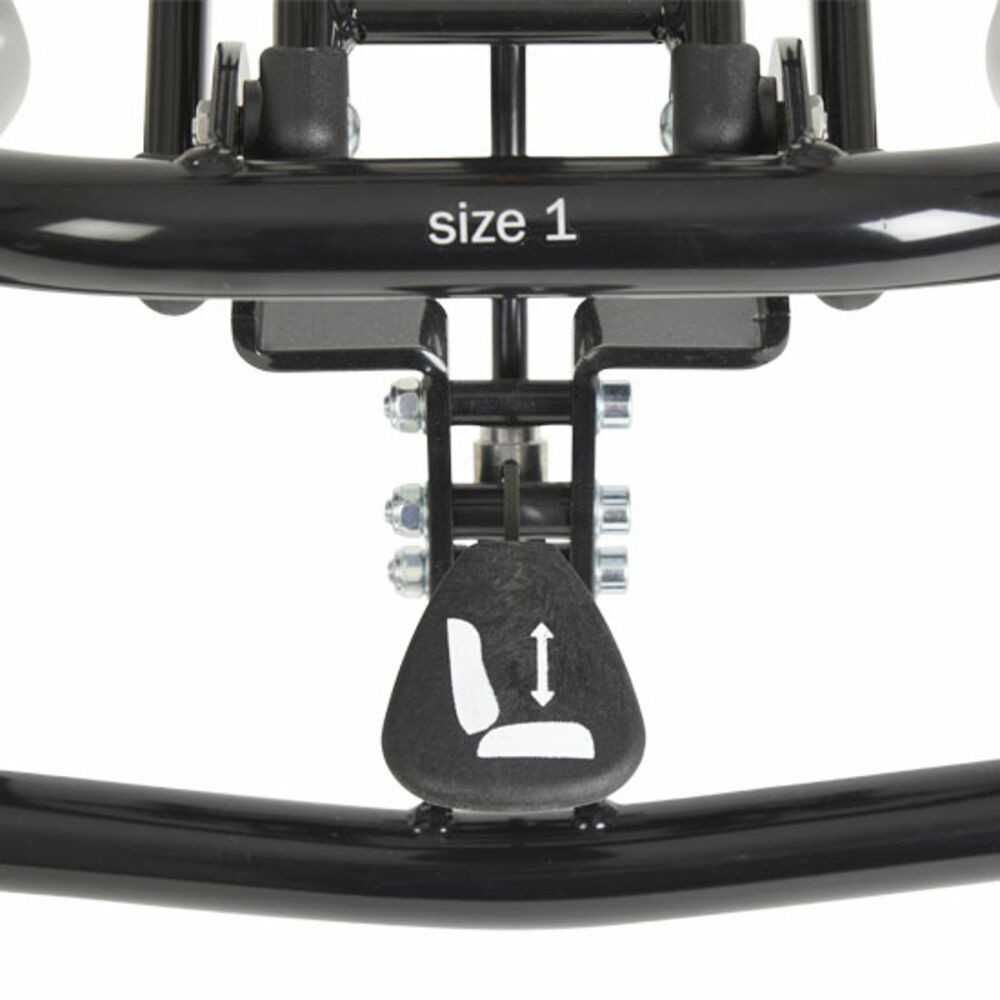

Using gas spring for height adjustment provides support for the caregiver when increasing the height and provides resistance when decreasing the height. It also ensures a smooth movement. Gas spring height adjustment is operated with a foot pedal on the frame.

Power

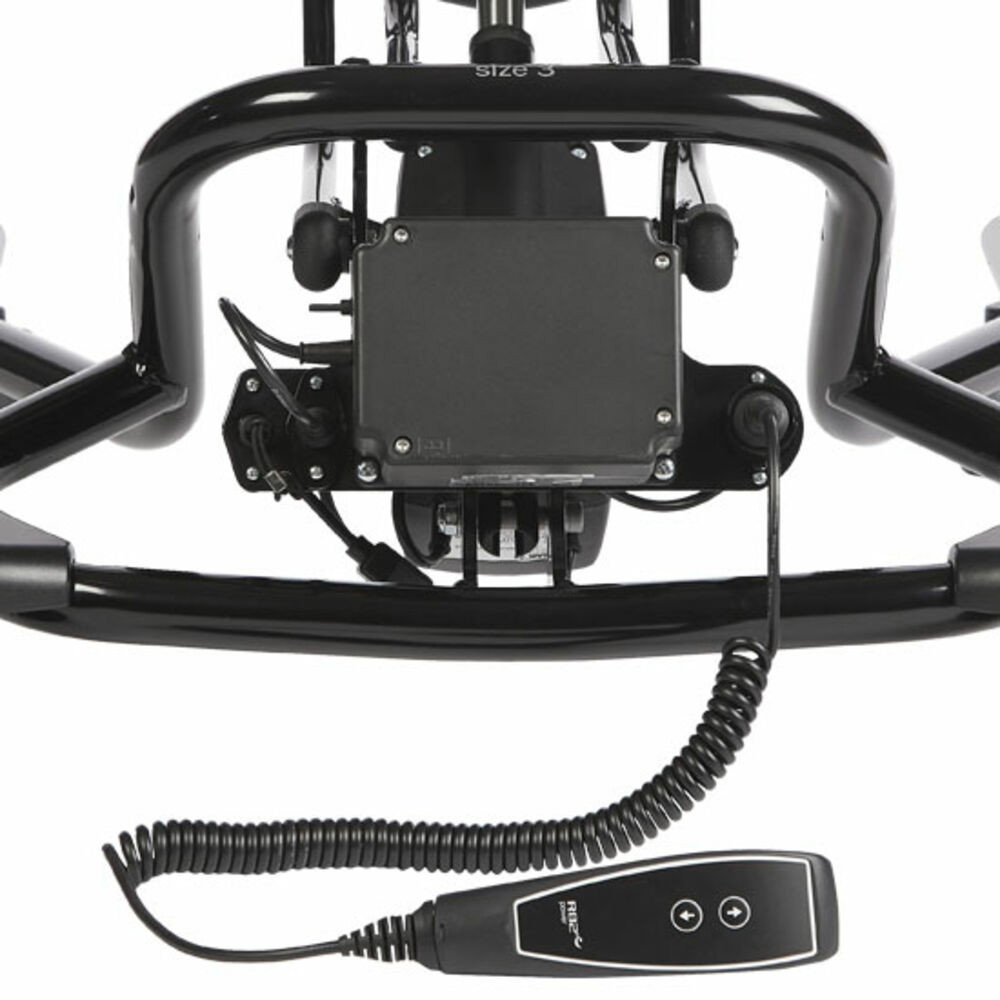

Using power for height adjustment provides support for the caregiver, as well as a strong and smooth adjustment, with the possibility of involving the user by using the handset. Power height adjustment is operated using a handset.

Hydraulic

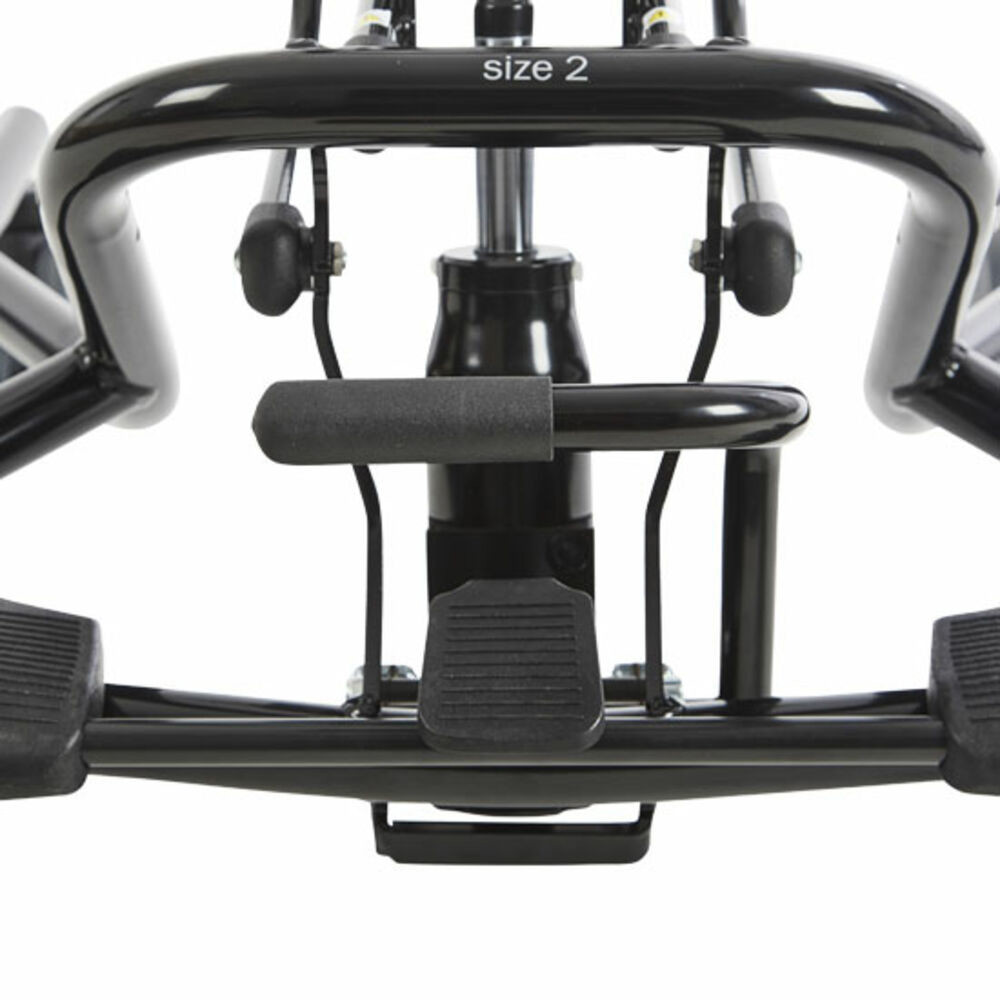

Using hydraulic for height adjustment provides a strong adjustment without the need to charge the battery. Hydraulic height adjustment is operated with a foot pedal on the frame.

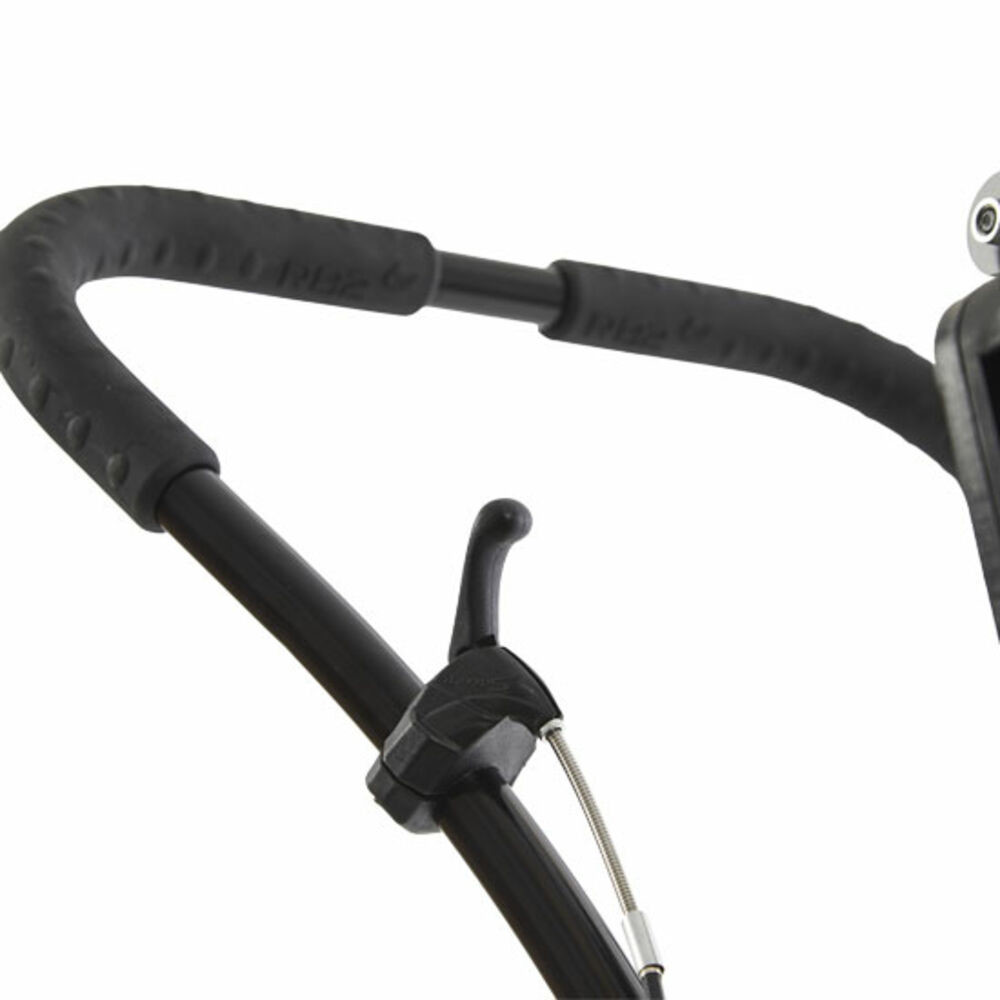

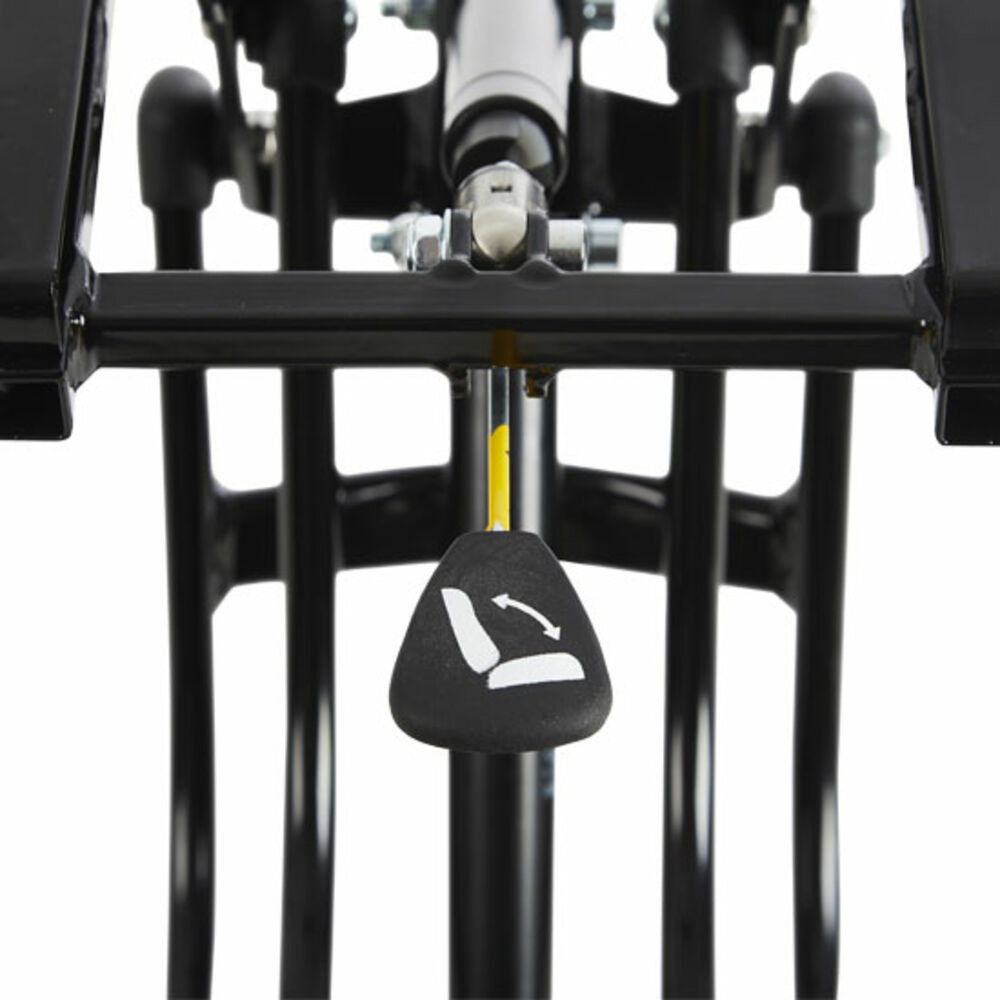

Tilt lever under seat

A tilt lever under the seat allows the caregiver to positioned close to the user while changing the seat plane angle.

Prepared for tilt lever on push brace

R82 x:panda

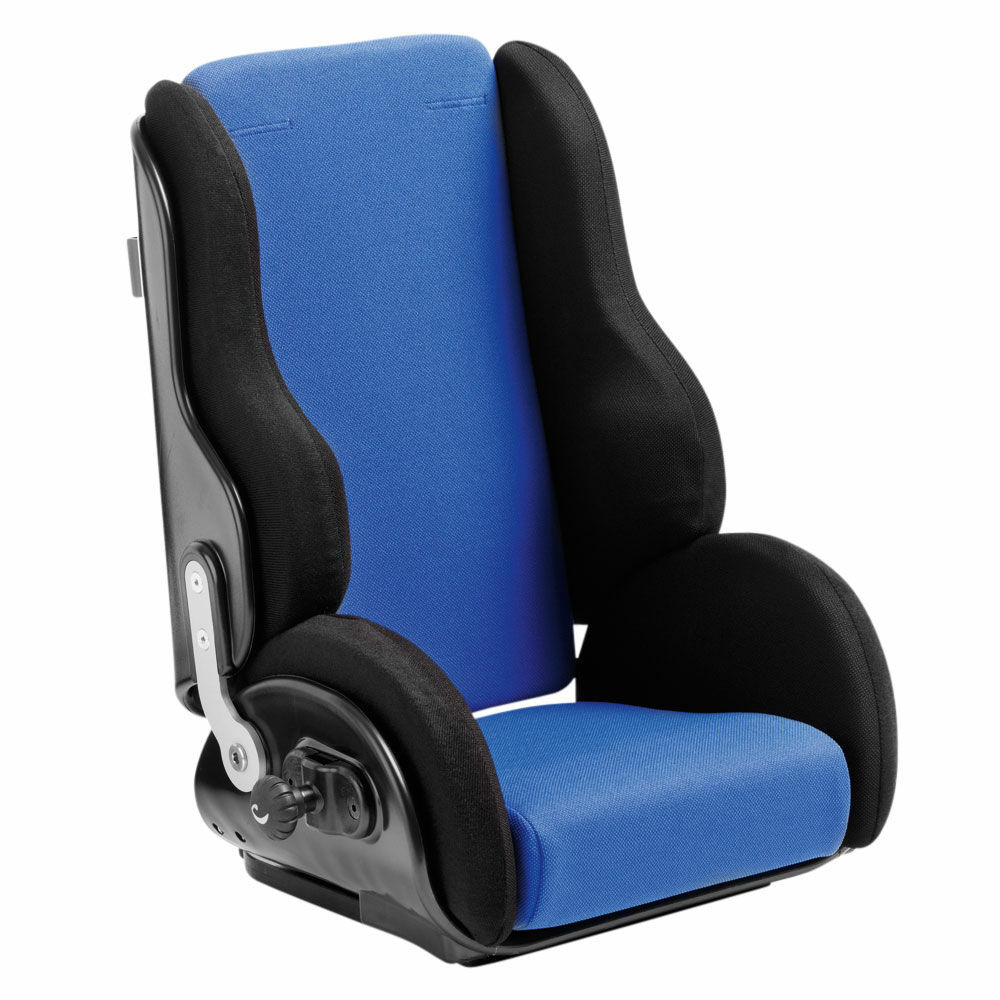

R82 Panda Futura

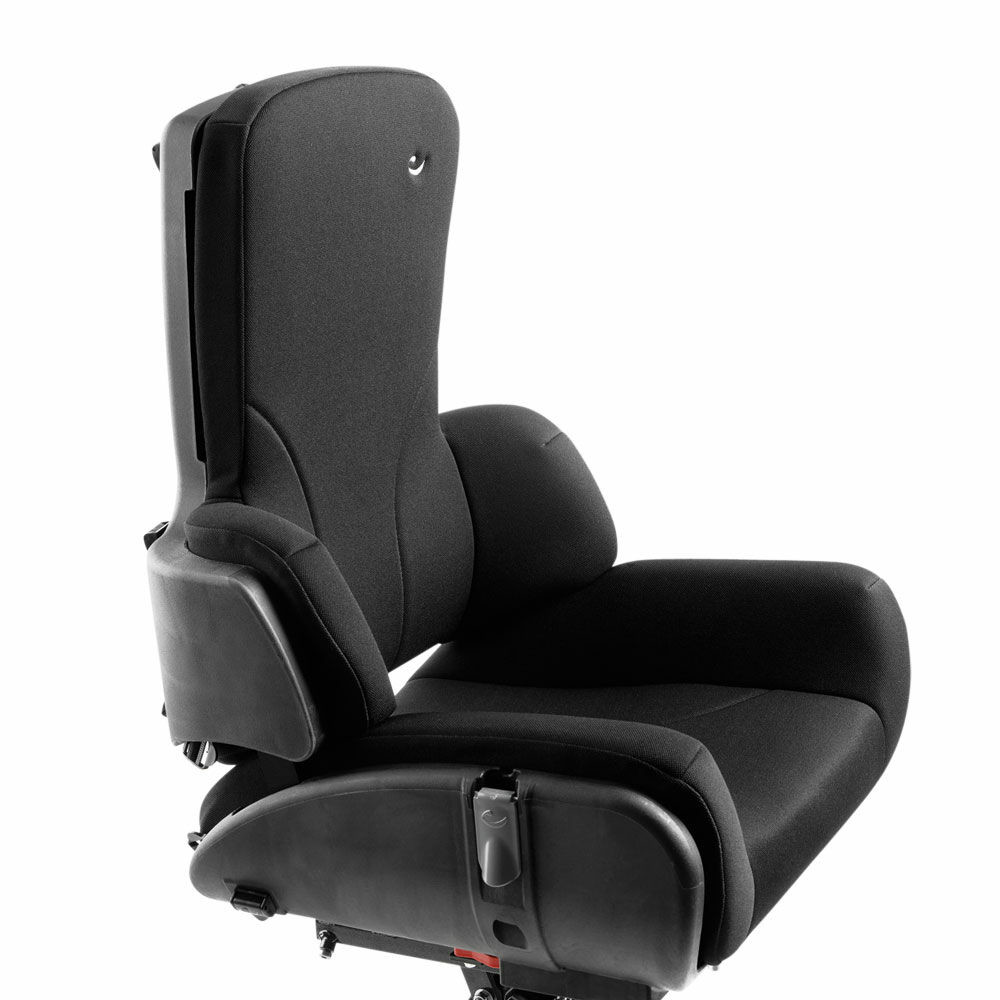

R82 Panda Futura 5

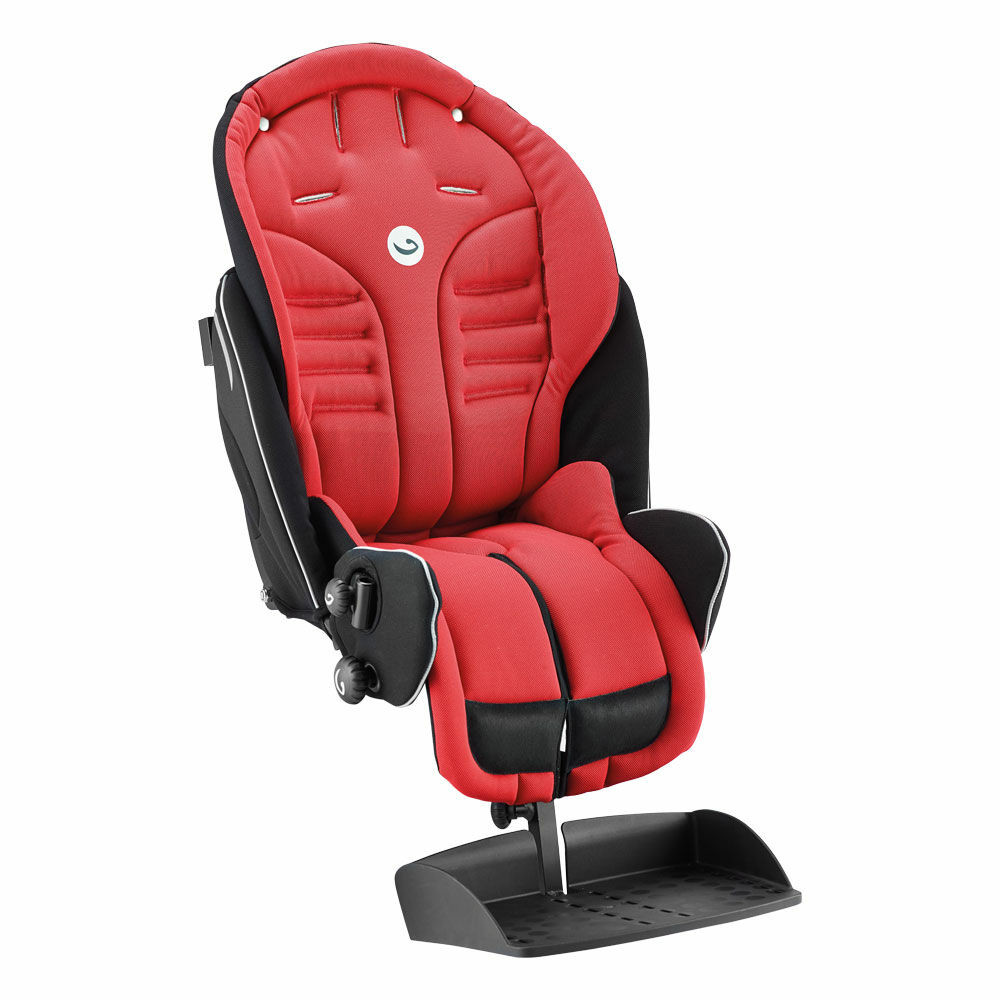

R82 Stingray

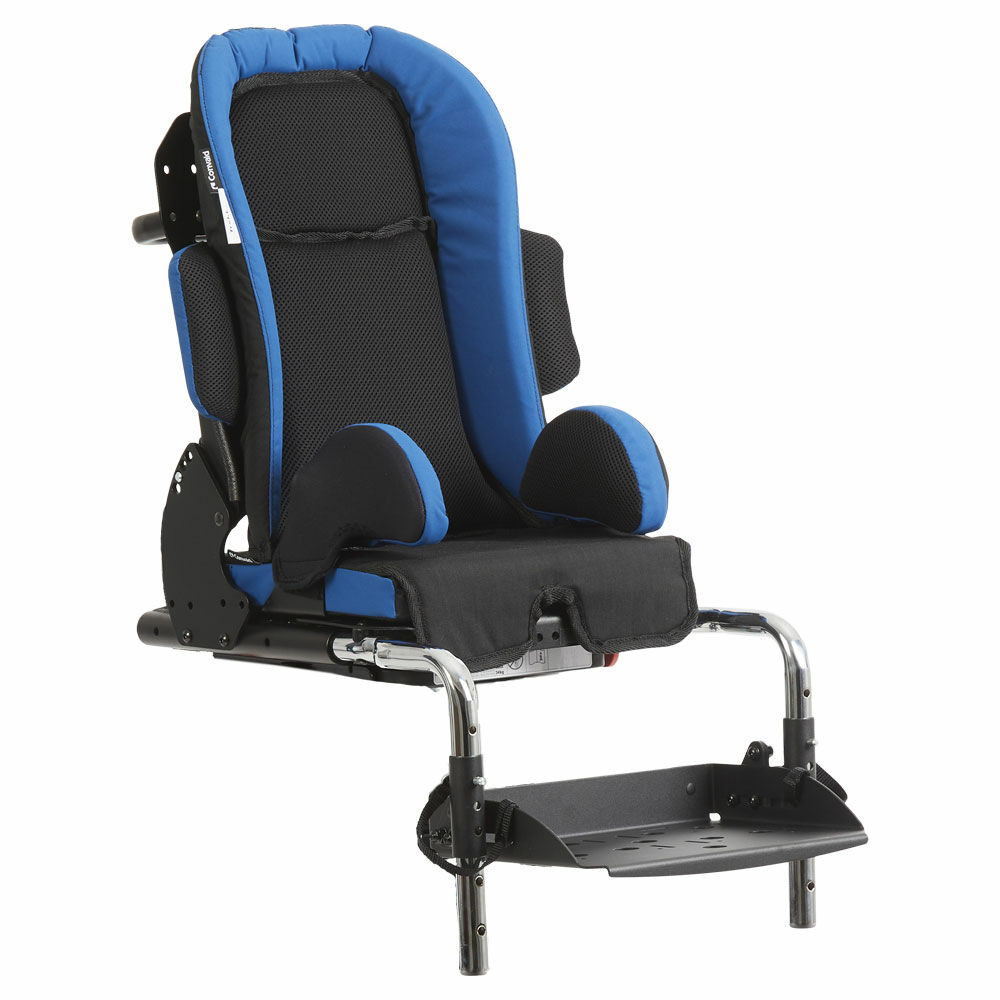

Convaid Trekker
