R82 Stingray Frame
The Stingray frame with 180° degree turntable base makes it possible to move your child from forward to rearward facing without leaving their seat.
The carbon Stingray Frame is in a league of its own with the trendsetting design, great adjustments and ease of steering. The features of being able to swivel the base with the child in place and having tilt and recline functions mean that the Stingray fulfils almost all requirements for a user.
The Stingray Frame has excellent driving properties, fantastic suspension and with the safe and stable brakes, security always has pride of place.
The Stingray Frame is available in one size with either swivel or fixed front wheels and a choice of different brake systems. Other than the Stingray seats, both the Panda Futura seats sizes 1-2½ and the x:panda seats sizes 1-2 from R82 can be mounted on the Stingray Frame with an adapted interface plate. The Stingray Frame has a max. load of 40 kg.
180° turnable seat unit

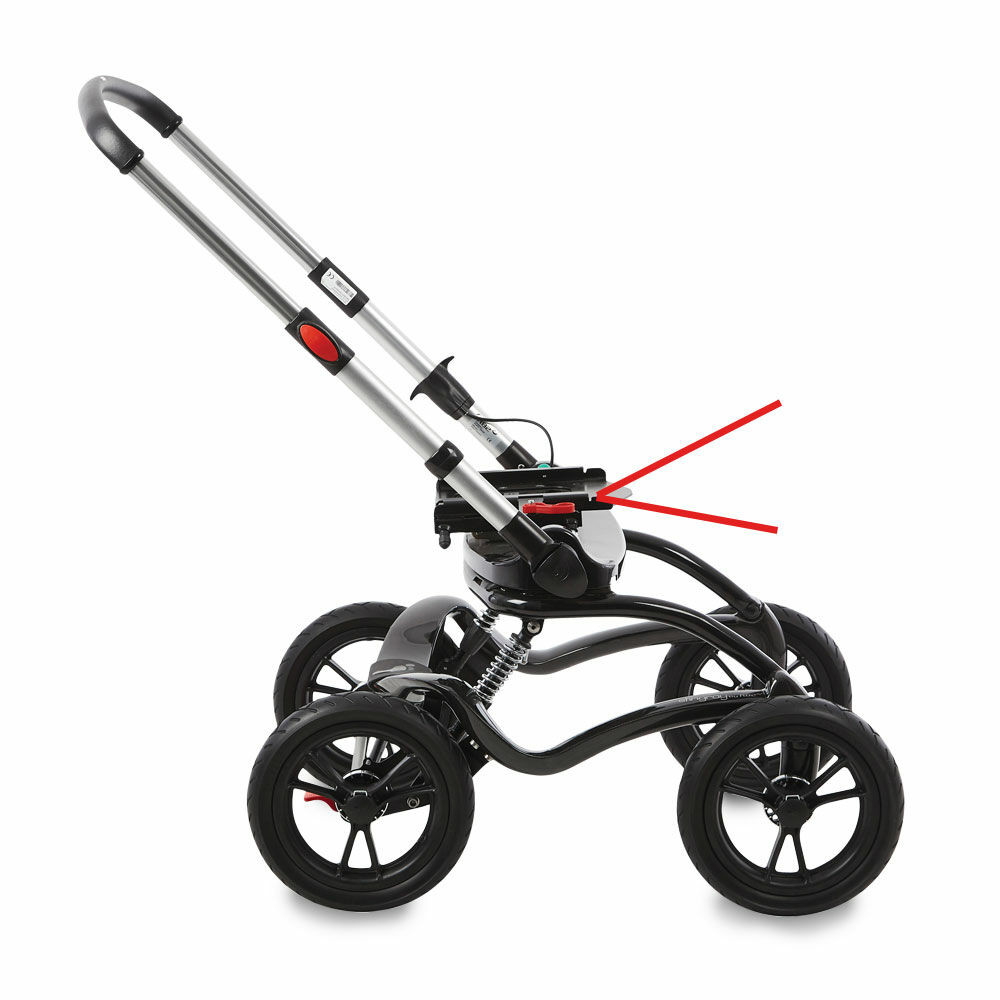

Tilt in space

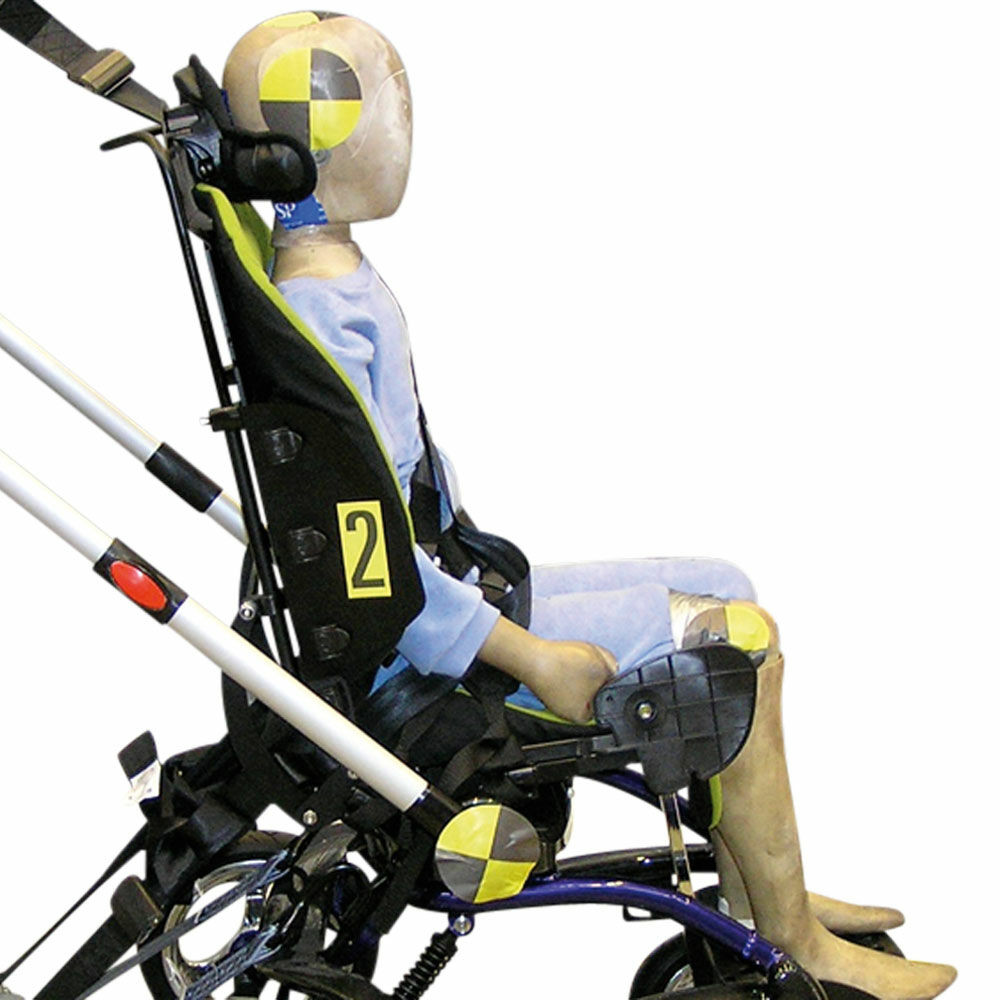

Safe transportation in vehicles

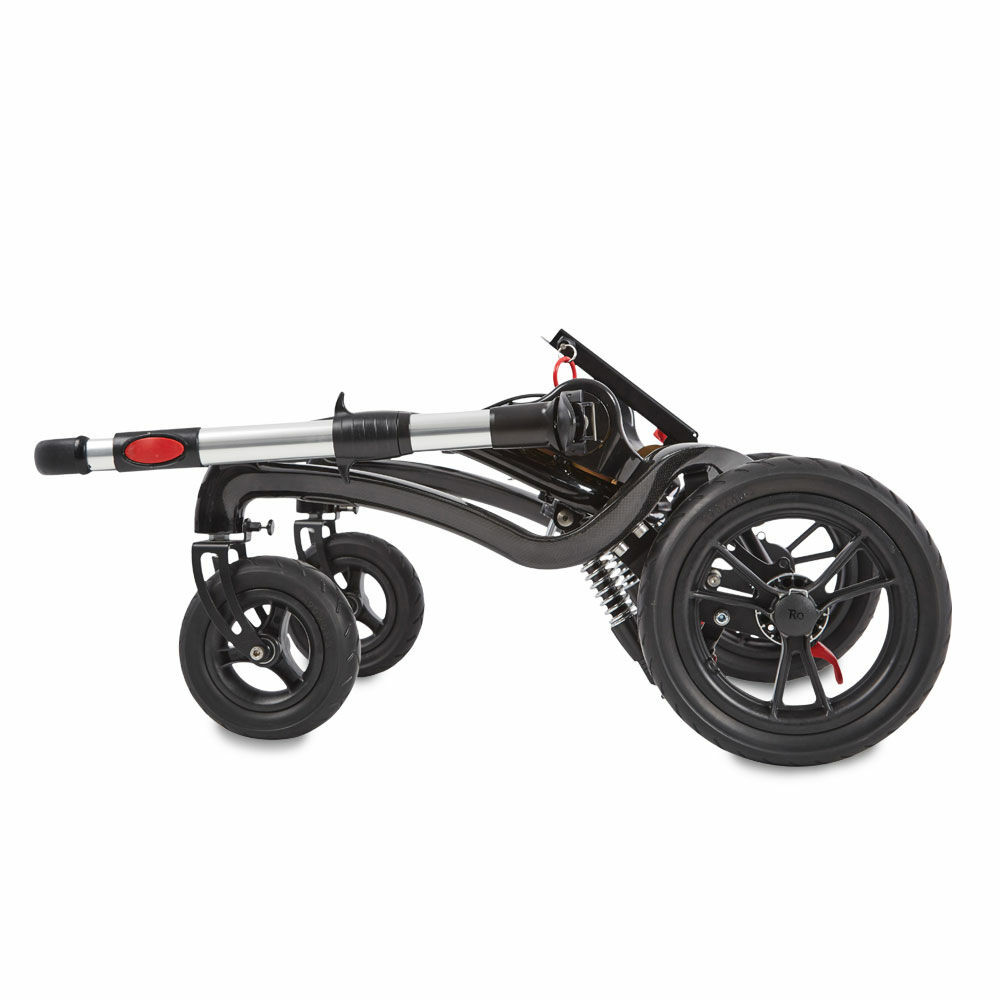

|Folded height (mm)||490|
|Folded length (mm)||900|
|Foot plate (width & depth) (mm)||310x200|
|Footrest to seat distance (mm)||140-450|
|Leg to seat surface angle (°)||(-30) - 30|
|Length with large front wheels (mm)||840|
|Length with turnable front wheels (mm)||740|
|Mass device (kg)||13.5|
|Max load (kg)||40|
|Max load at transportation (kg)||40|
|Maximum rated load (kg)||55.5|
|Minimum turning radius (mm)||1020|
|Overall height, push brace 15° (mm)||1000, 1030, 1060|
|Overall width (mm)||590|
|Seat plane angle (°)||45|
|Seat surface height at front edge (mm)||520|
|Static stability downhill (°)||10|
|Static stability sideways (°)||10|
|Static stability uphill (°)||10|
Available as solid or air wheels.

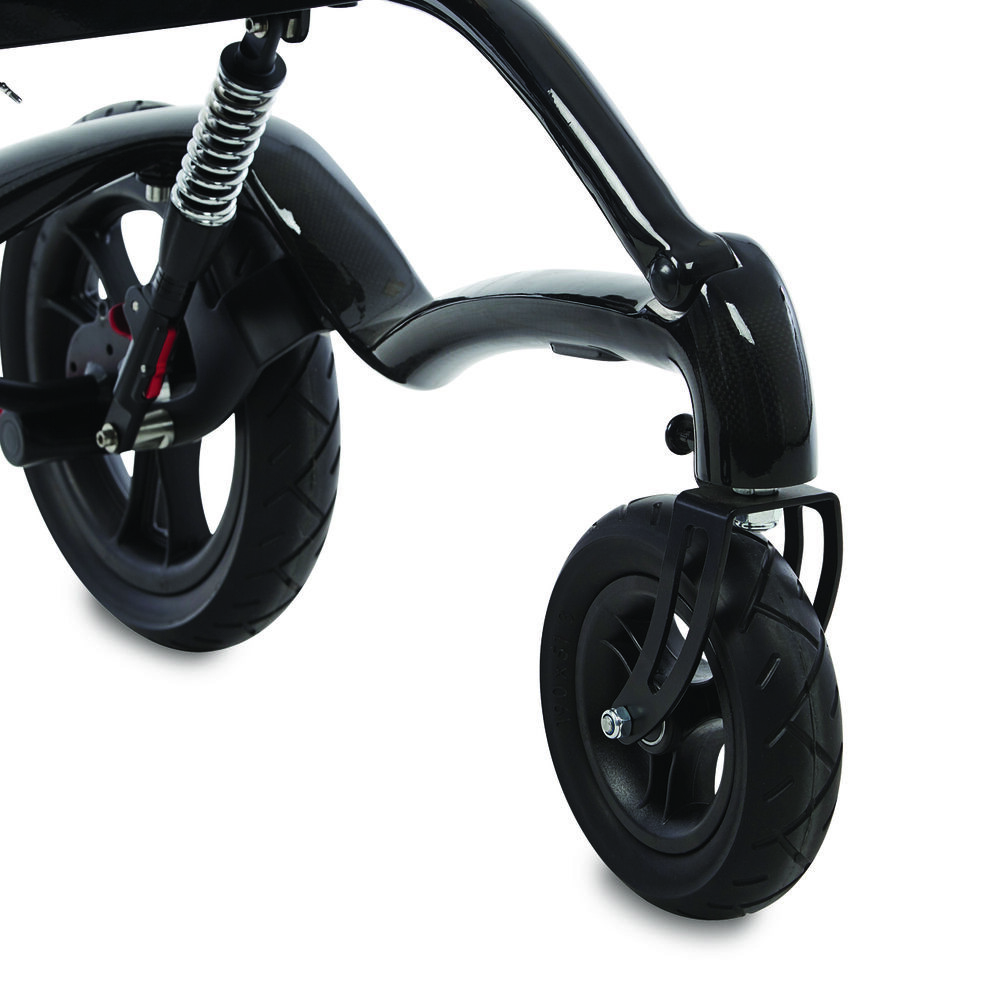

7" turnable front wheels, with directional stabiliser

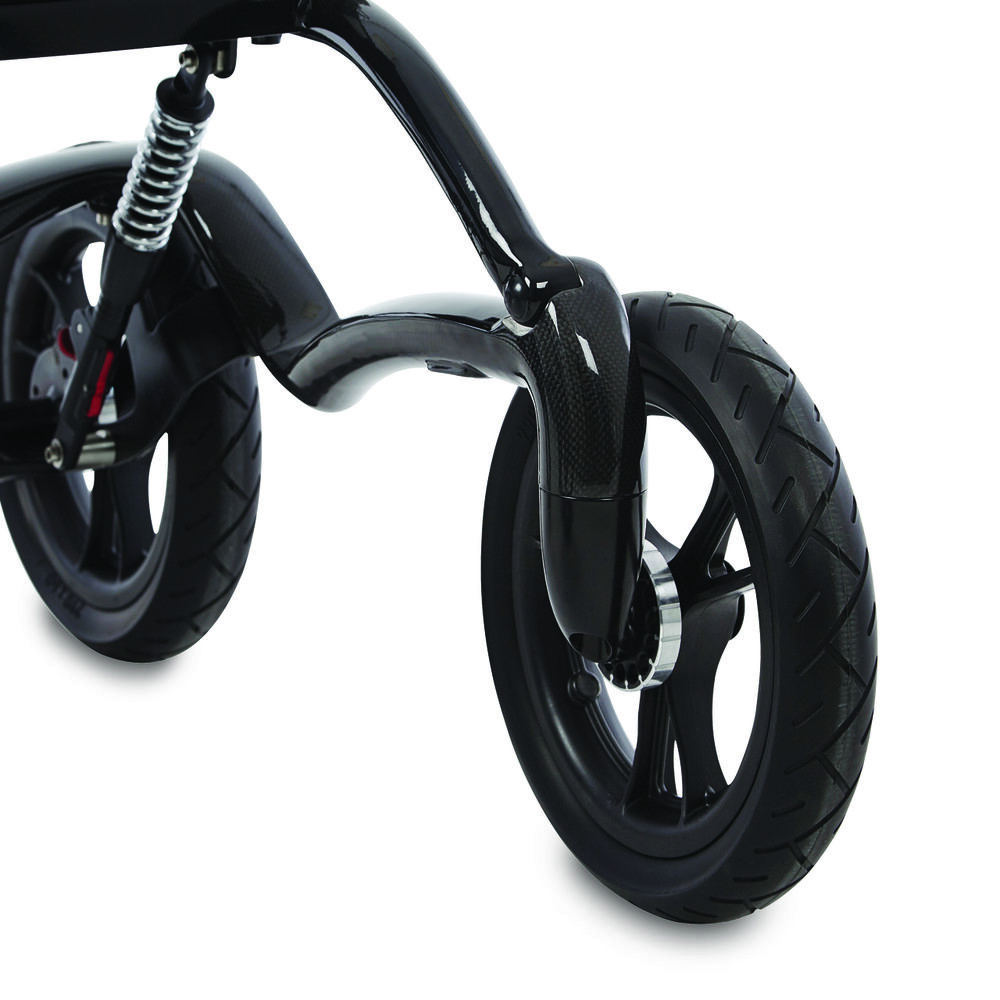

12” No swivel option

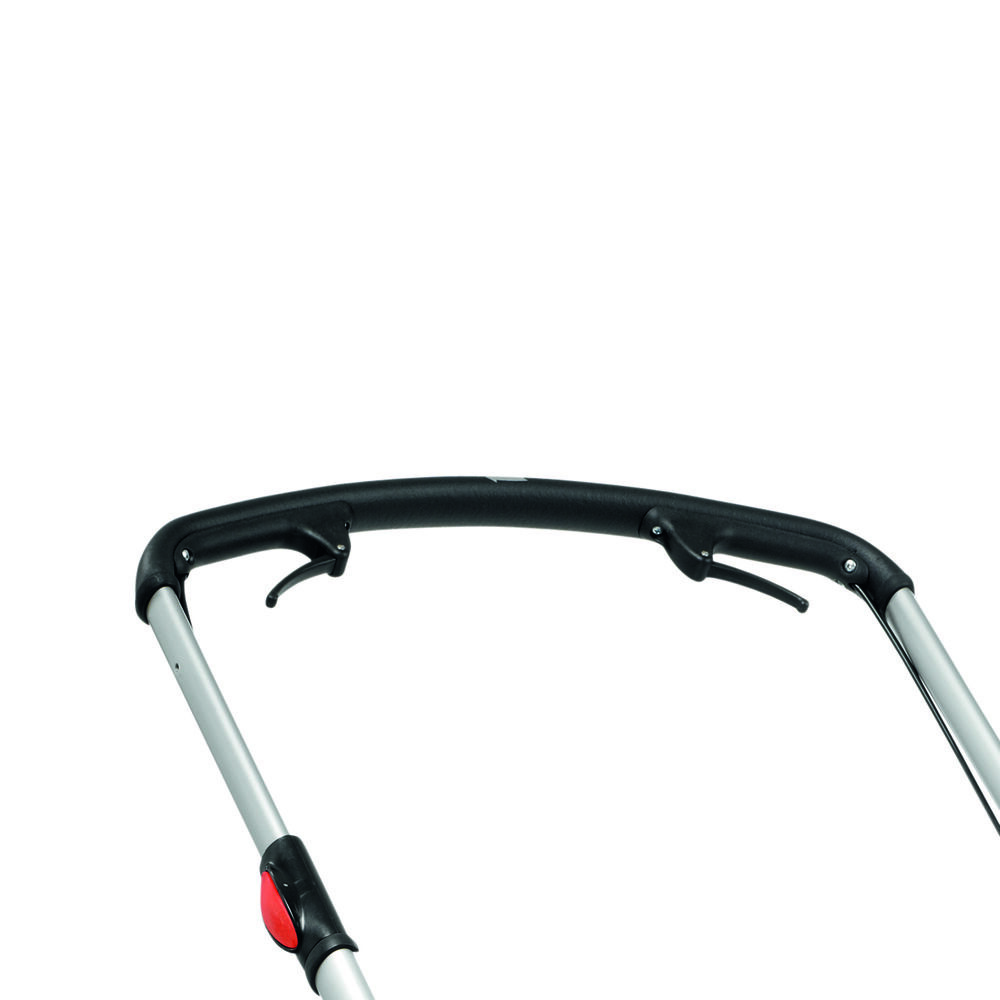

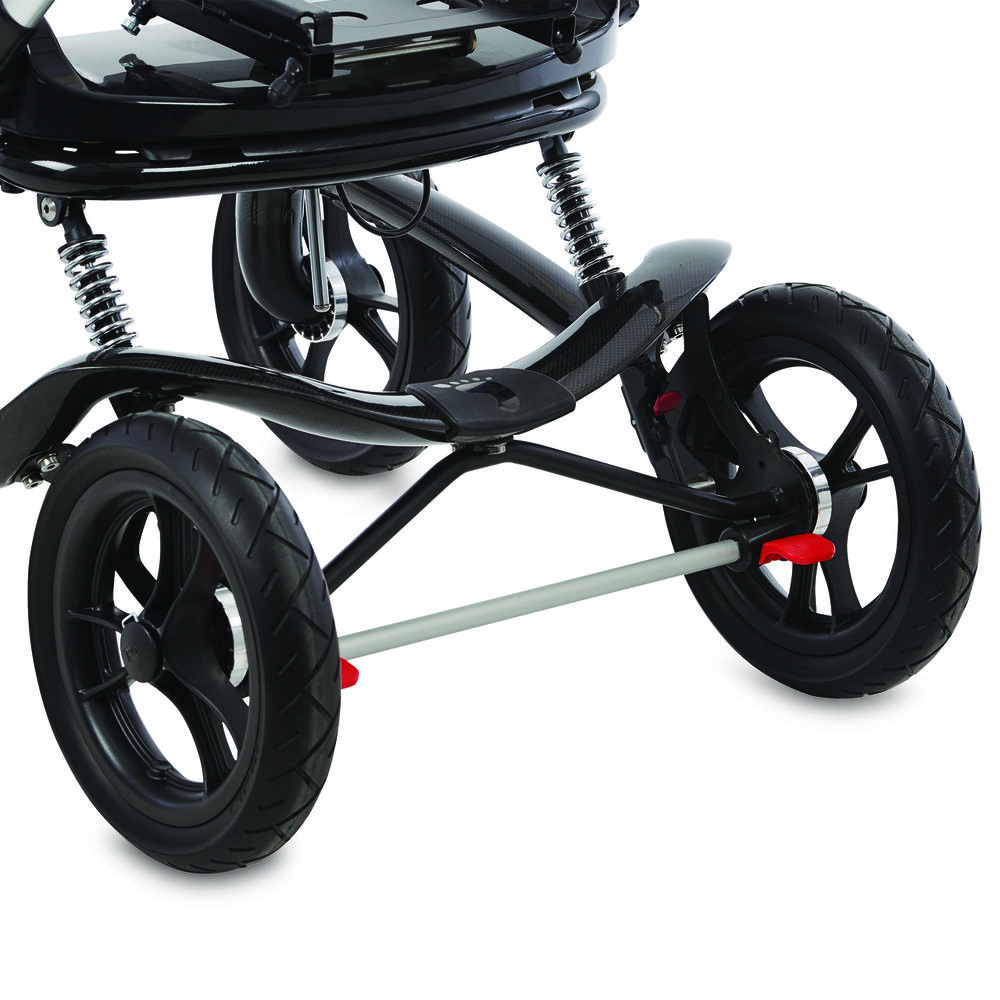

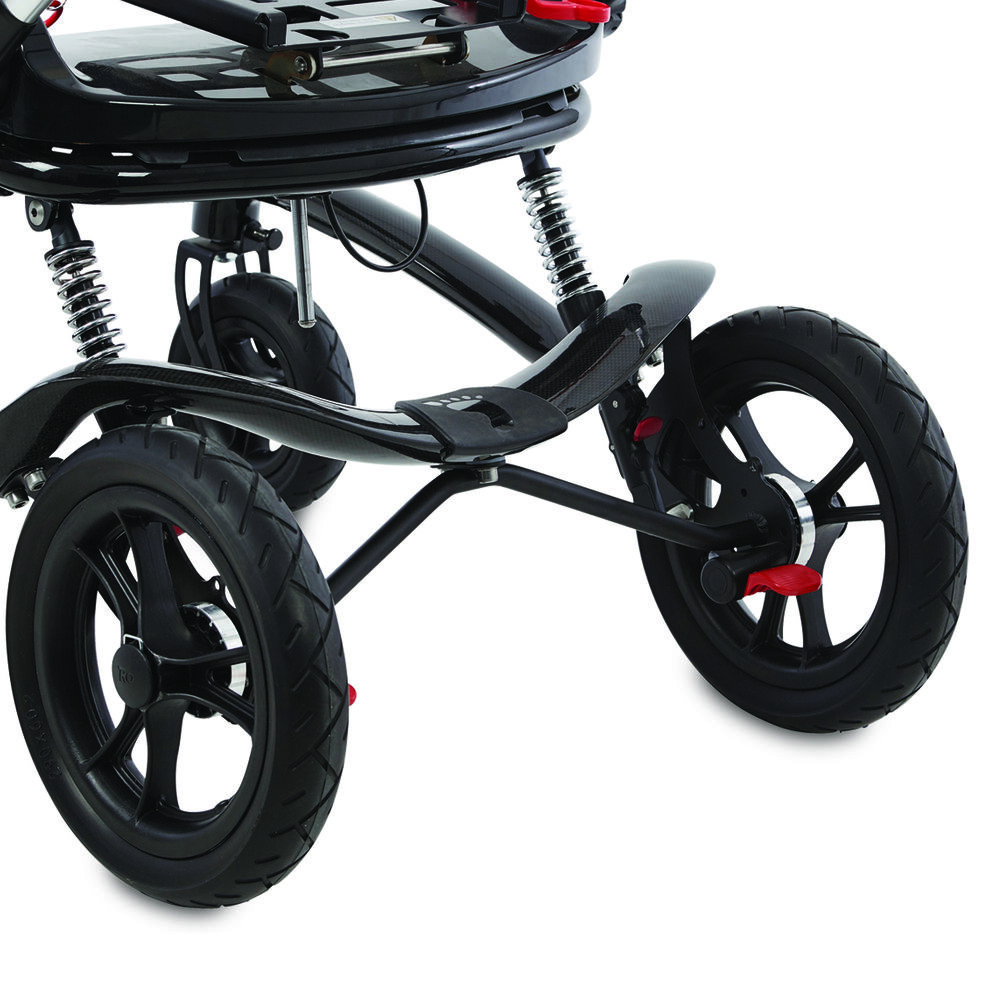

With hand brakes

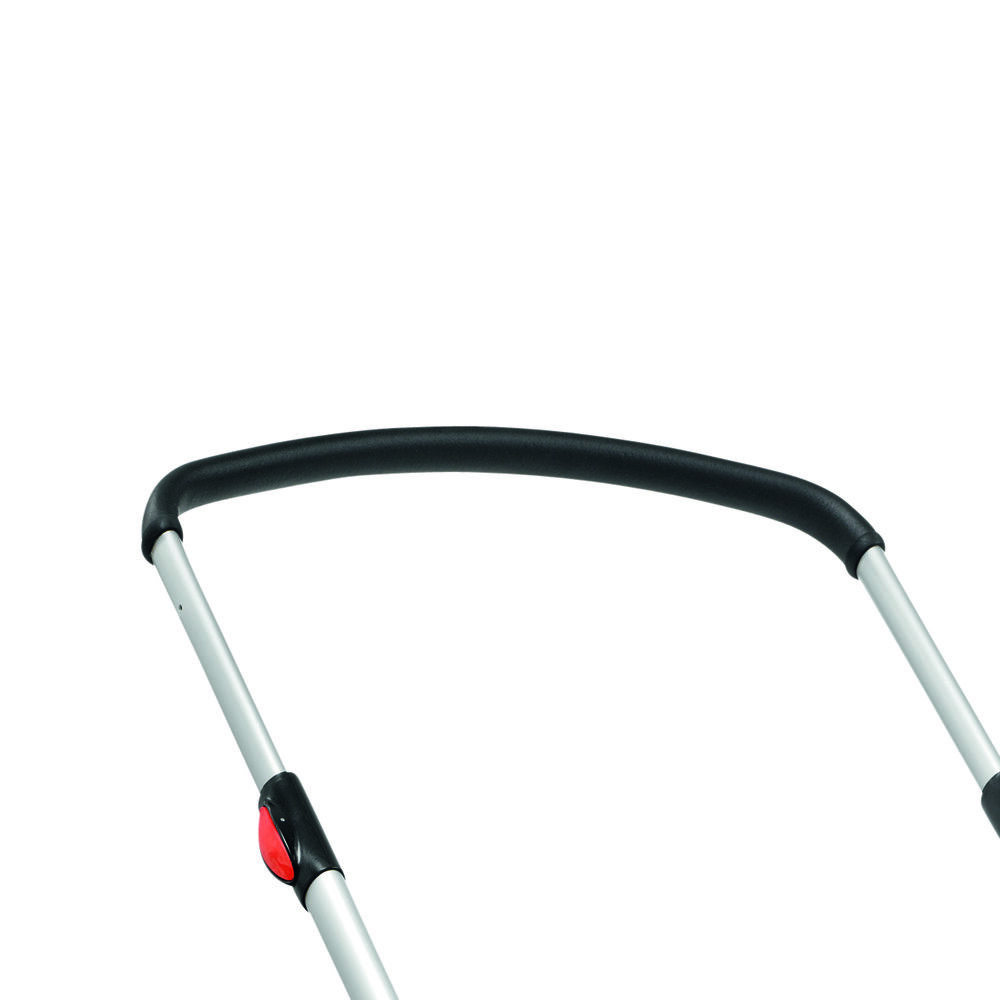

Without hand brakes
The Stingray frame can also be used for the Panda futura and x:panda seat units. Read about the seats in the Panda Futura and x:panda sections.

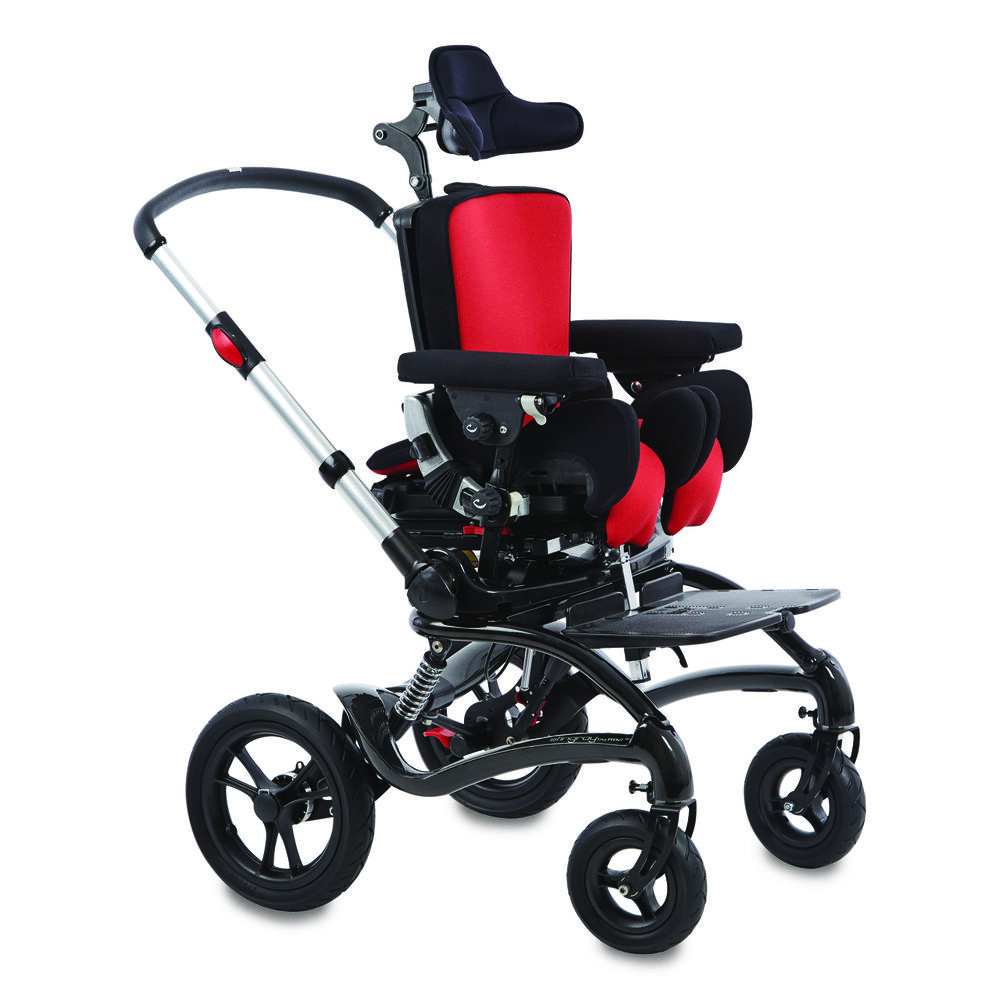

Stingray frame with x:panda seat

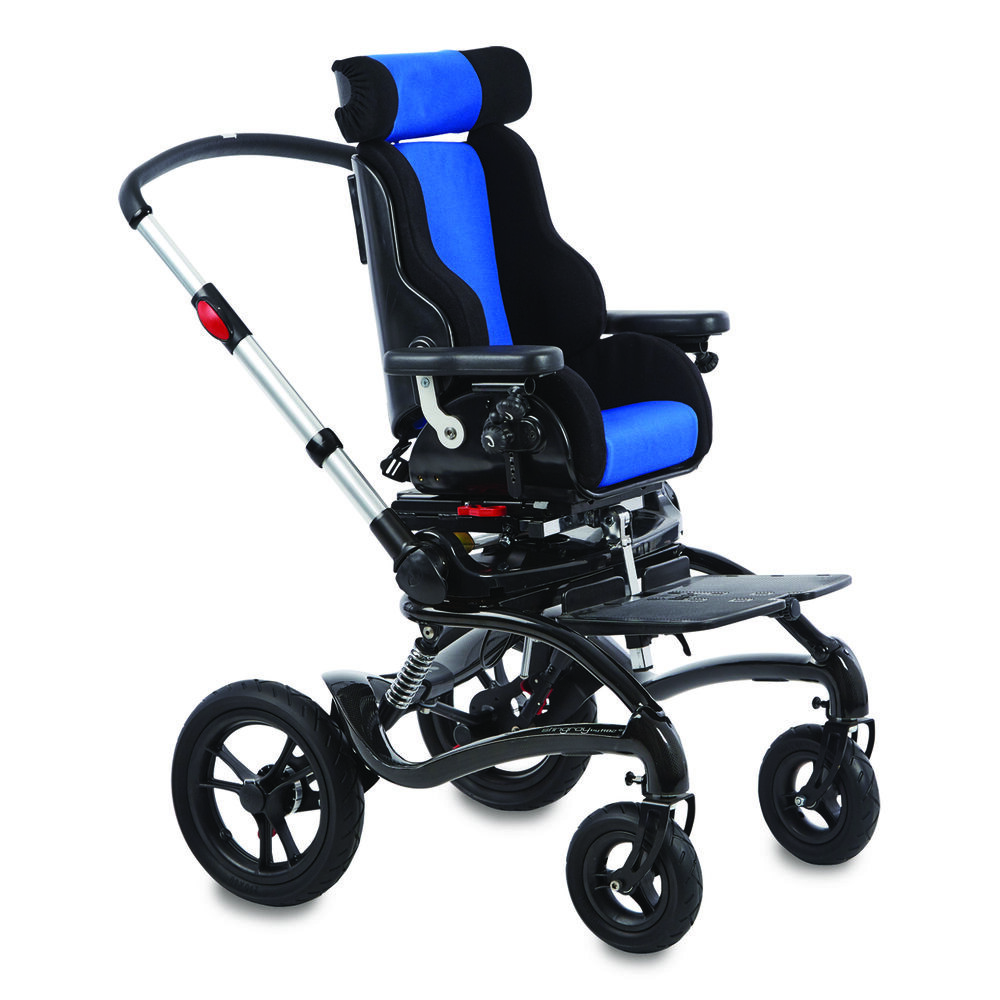

Stingray frame with Panda Futura seat
Oxygen bottle holder
