Molift Quick Raiser 205
A sit-to-stand hoist with outstanding lifting capacity

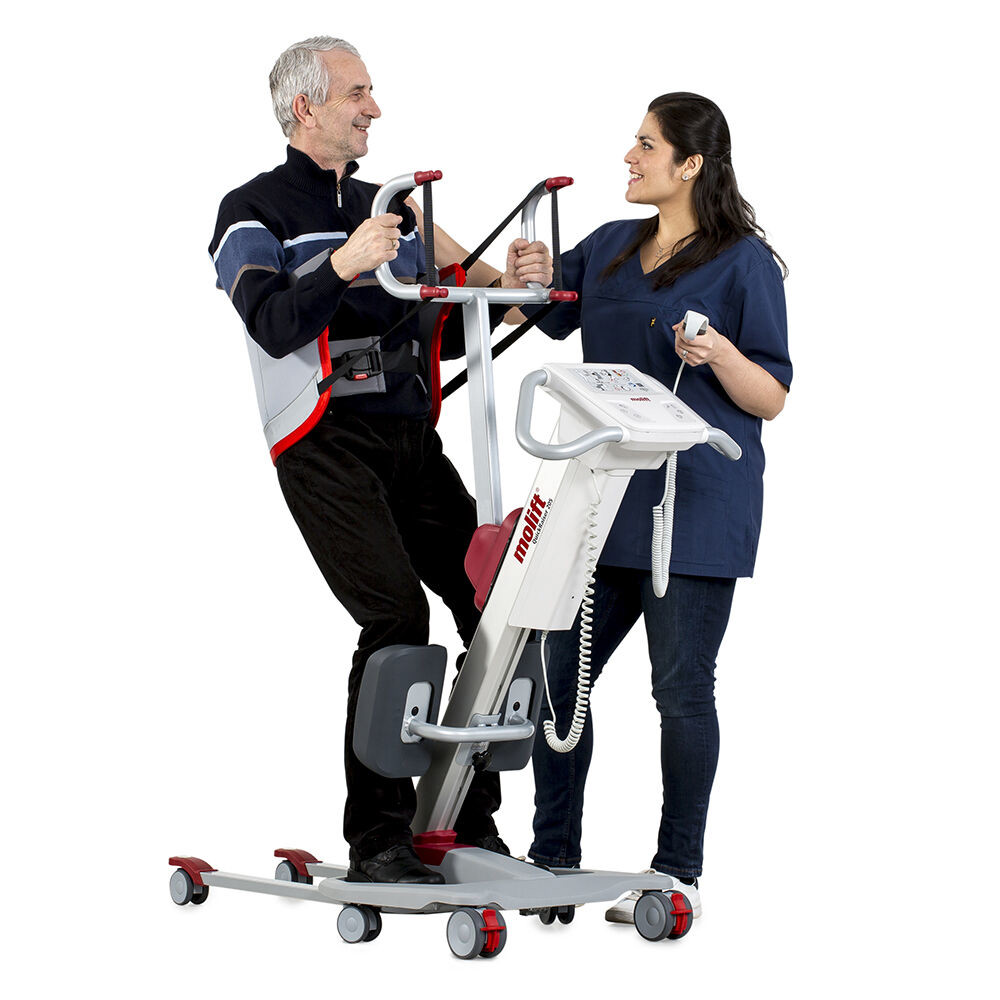

The Molift Quick Raiser 205 is a state of the art sit-to-stand hoist with outstanding transfer capabilities and exceptional manoeuvrability. The design encourages a natural movement pattern and fulfils the lifting needs of users with some weight-bearing capacity.
The natural movement pattern
The inclined column encourages a natural movement pattern and fulfils the lifting needs of users up to 205 kg, with some weight-bearing capacity. The user can feel safe and comfortable in every movement as the lifting experience is the same regardless of carer, lifting bar or sling.
Exceptional maneuverability

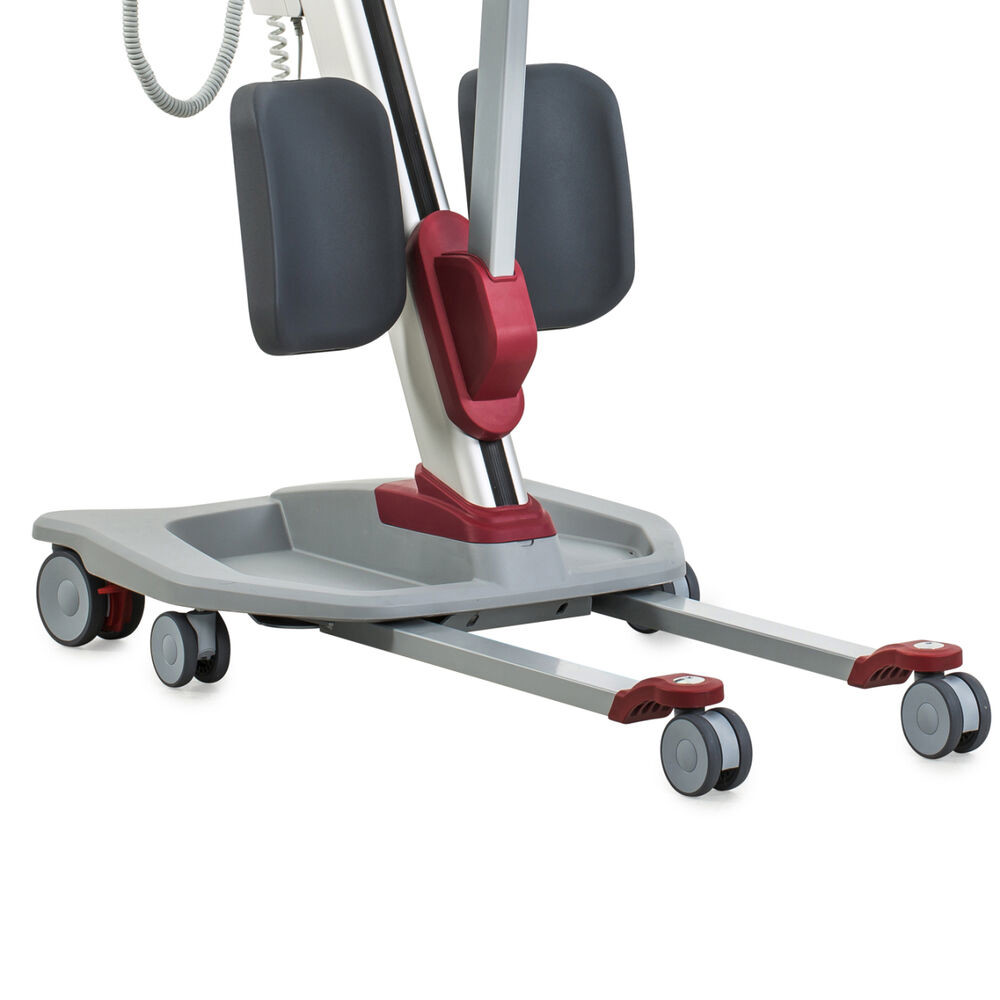

The Quick Raiser 205 is compact, stable and exceptionally easy to manoeuvre. The hoist has a small turning radius and easy manoeuvrability even in tight spaces, thanks to the unique wheel position, angled push rod and outstanding base weight distribution. The hoist fits under most beds and chairs, and the variant with electrically adjustable legs allows accessibility almost anywhere. The fixed leg option benefits from a very small footprint.
Features
Flexible lifting arm
Comfort, safety and stability

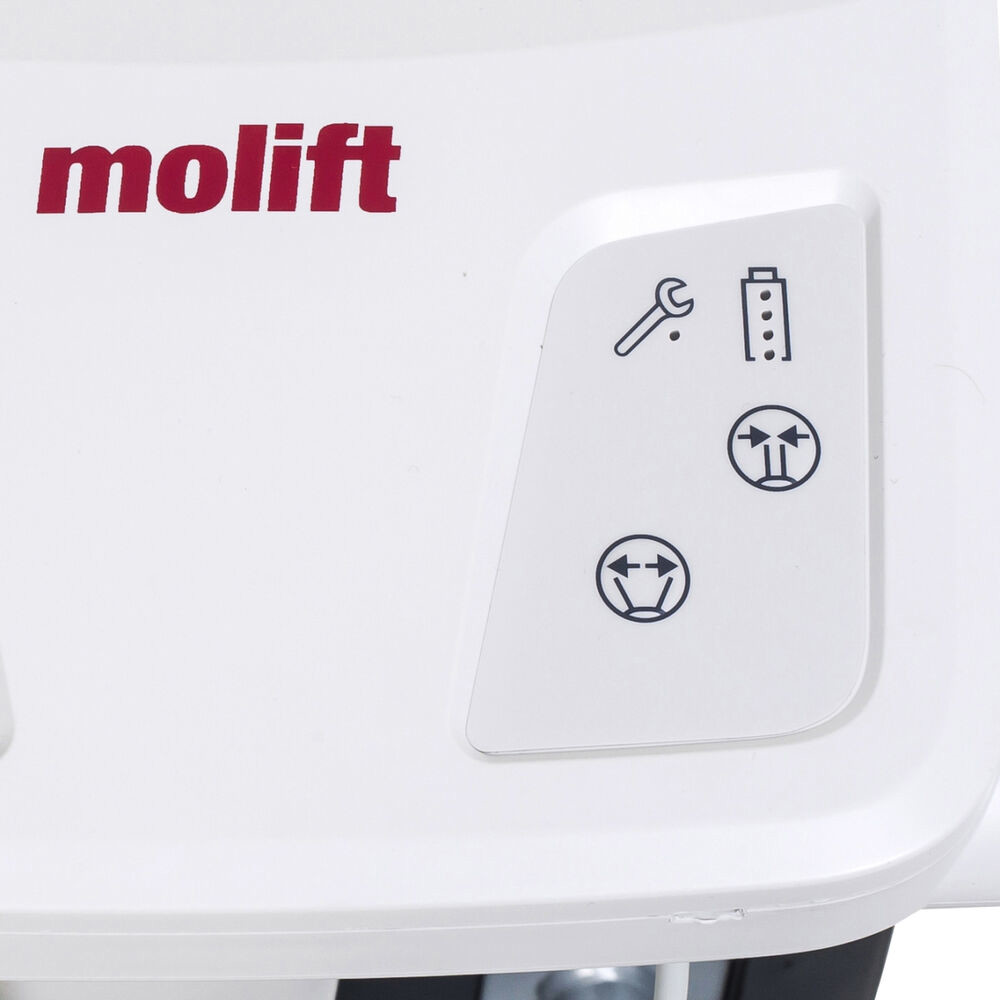

Automatic Warning
Easy to manoeuver
Variants
| Specifications | |||
|---|---|---|---|
| Battery | SLA 24V 2,9 Ah | Product includes | Chassis,column, leg support, control panel, hand control, lifting arm, battery and integrated charger |
| Battery charge time (hours) | 5 | Rated performance | 100 hoists at: 75 kg |
| Hoisting speed 75 kg (mm/sec) | 35 | Service software | Molift Service Tool |
| Material | Aluminium, plastic, steel | Width chassis, outer (mm) | 619 |
| Maximum user weight (kg) | 205 | ||
| Item number | Leg height (mm) | Length (mm) | Total weight (kg) | |
|---|---|---|---|---|
| Active lifting arm, castor size Ø75mm | M29000 | 75 | 1320 | 44 |
| Active lifting arm, castor size Ø100mm | M29100 | 100 | 1320 | 44 |
| Active lifting arm (fixed leg), castor size Ø75 mm | M29150 | 75 | 1165 | 42.5 |
| Active lifting arm (fixed leg), castor size Ø100mm | M29200 | 100 | 1165 | 42.5 |
| StandUp lifting arm, castor size Ø75mm | M29001 | 75 | 1320 | 44 |
| Standup lifting arm, castor size Ø100mm | M29101 | 100 | 1320 | 44 |
| StandUp lifting arm (fixed leg), castor size Ø75mm | M29151 | 75 | 1165 | 42.5 |
| StandUp lifting arm (fixed leg), castor size Ø100mm | M29201 | 100 | 1165 | 42.5 |
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
Molift Quick Raiser 205 - Product presentation and features
Molift Quick Raiser 205 - wheelchair to commode
Molift Quick Raiser 205 - from bed to wheelchair
