Etac Prio 3A, Electric Tilt configuration

Electrical adjustment of back and seat angle.

Electrical back and seat recline is available as a configuration option or as an accessory. The electrical unit is discreet and adds only 3.5 kg to the total weight, which means that Prio 3A maintains its feature as an easy-to-operate wheelchair.

Prio 3A with electrical back and seat recline functions can also contribute to creating activity. Prio 3A with electric tilt facilitate the abilities and contributes to even more possibilities for a longer active life.

The Prio 3A is designed to optimise activity based on individual ability providing the support and comfort needed every step of the way. Right now and tomorrow too as needs change.

Prio electric tilt cannot be combined with the dynamic posterior pelvic support, comfort tilt lock, locking pin quick release back, gas piston clips and/or basket. When retrofitting on Prio with 16" wheels, the safety edge must be fitted as well.

All you need to know is the hip width

All you need to know is the hip width to define the correct wheelchair size. The rest can be adjusted to fit the individual user´s needs.

Prio 3A give more opportunities to create shape and support for the user to sit active/upright and for comfort and relief while resting. Work with adjustments and simple accessories to shape the wheelchair completely according to the user’s needs. Right now. And also tomorrow.

Facilitate ability, do not give up on it - With Prio 3A you can reach your positioning and activity goals.

Features

Simple, clear symbols.

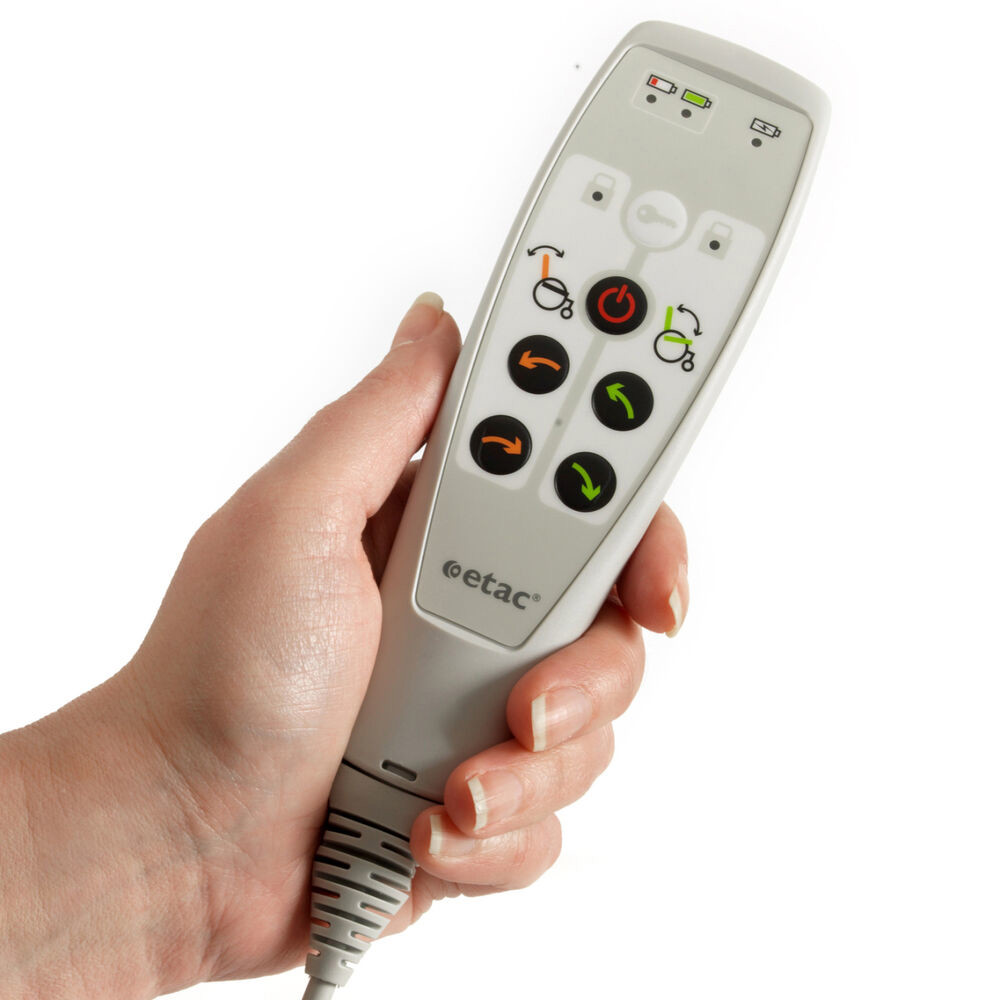

Hand Control

Hand control with simple, clear symbols.
Etac Prio 3A, Electric Tilt configuration

Magnetic hand control

The hand control is magnetic and can be, thanks to the accompanying metallic plate, attached where most convenient.

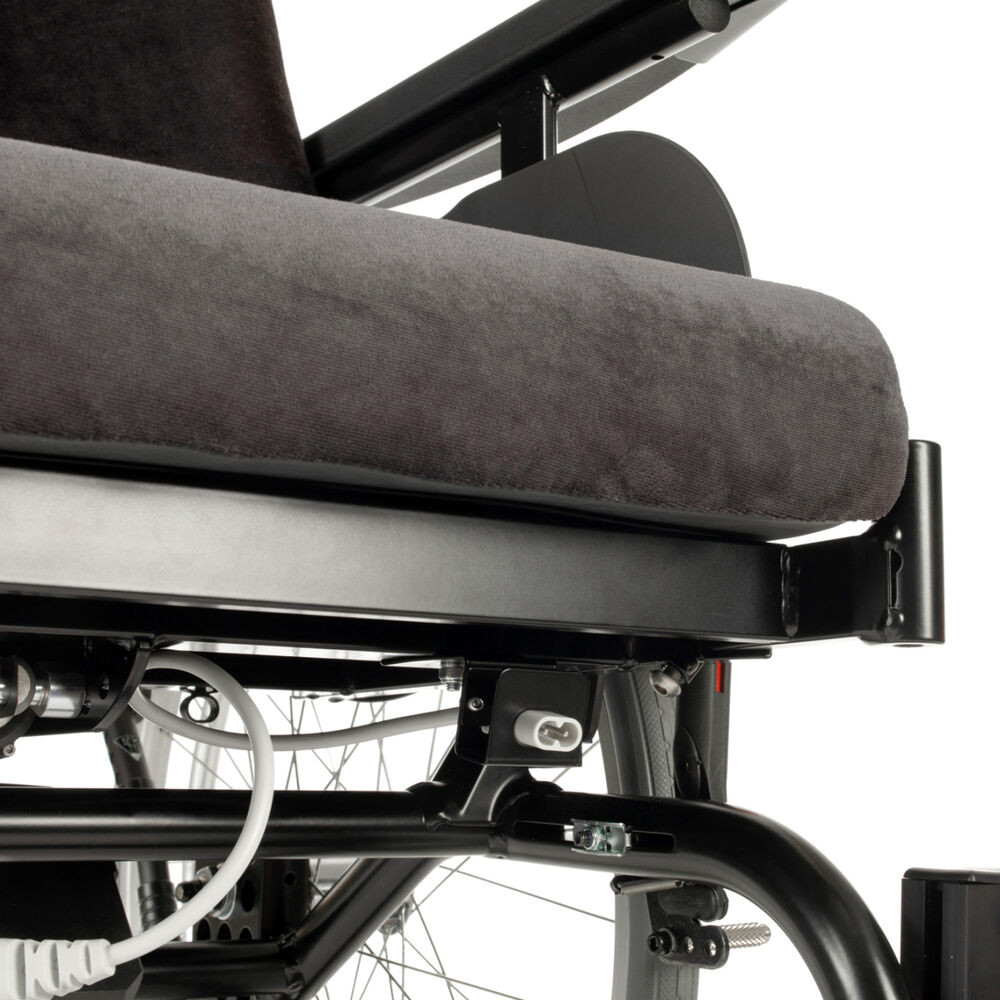

The compact electrical unit including the lithium battery has an easily accessible position for charging.

Easily accessible charging

The compact electrical unit including the lithium battery has an easily accessible position for charging.
Etac Prio 3A, Electric Tilt configuration

Adjustable lumbar angle

Adjust the lumbar angle for individual posture needs. Adjustable -12º to +10º .

Variants

Item number
Seat depth (mm)
Seat width (mm)
Total width (mm)
Transport weight (kg)
Transport width (mm)
Weight (kg)
Width with attendant brakes (mm)
40 cm 13420405 390-510 400 590 22,4 560 33,0 640
45 cm 13420409 390-510 450 640 22.7 610 33.3 690
50 cm 13420413 390-510 500 690 23.0 660 33.6 740
55 cm 13420417 390-510 550 740 23.3 710 33.9 790

Back Support height: 46 - 62 cm (18 – 24½”) std, Including the back extension (6 cm) 52 - 68 cm (20½ – 26¾”)
Tilt angle: -3° to +20° (with accessory 0°– +20º)
Back support adjustable angulation: 0° – +30°
Back support lumbar angulation: -12º - +10º
Balance positions: Etac Prio with 20", 22", or 24" rear wheels has three altarnative balance positions for each seat height.
Maximun user weight: 135 kg (21.5 lbs)
Total weight: Measured with arm supports, head support, elevating leg supports, calf support, rear wheels and anti-tippers.
Total width: M100 rear wheels +19 cm (7½") / Cross 5 rear wheels +21 cm (8¼") / 24" rear wheels, attendant brakes +24 cm (9½") / 16" hjul +19.5 cm (7¾")
Seat height: 20", 22" and 24" rear wheels: 38–52.5 cm (15-20¾")
16" rear wheels: 40-45 cm (15¾-17¾")
Transport weight: Weight without arm supports, elevating leg supports, calf support and rear wheels.
